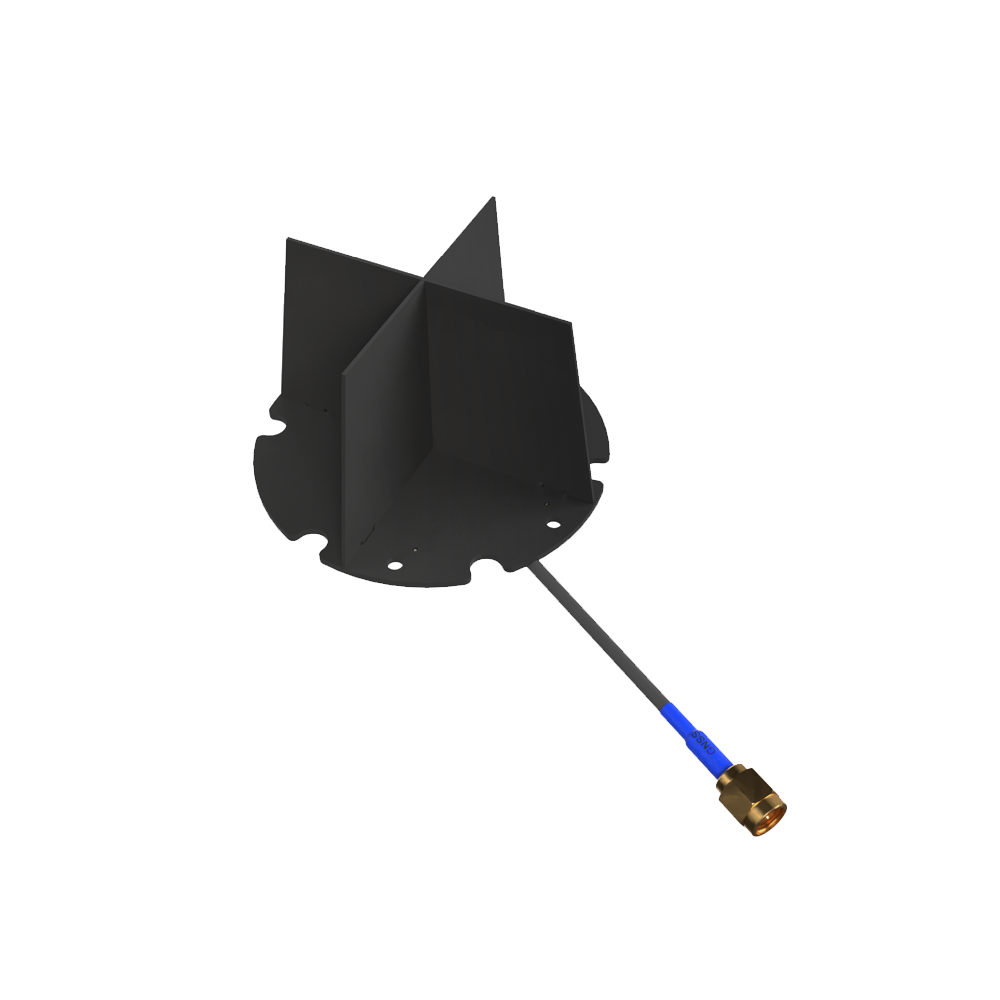

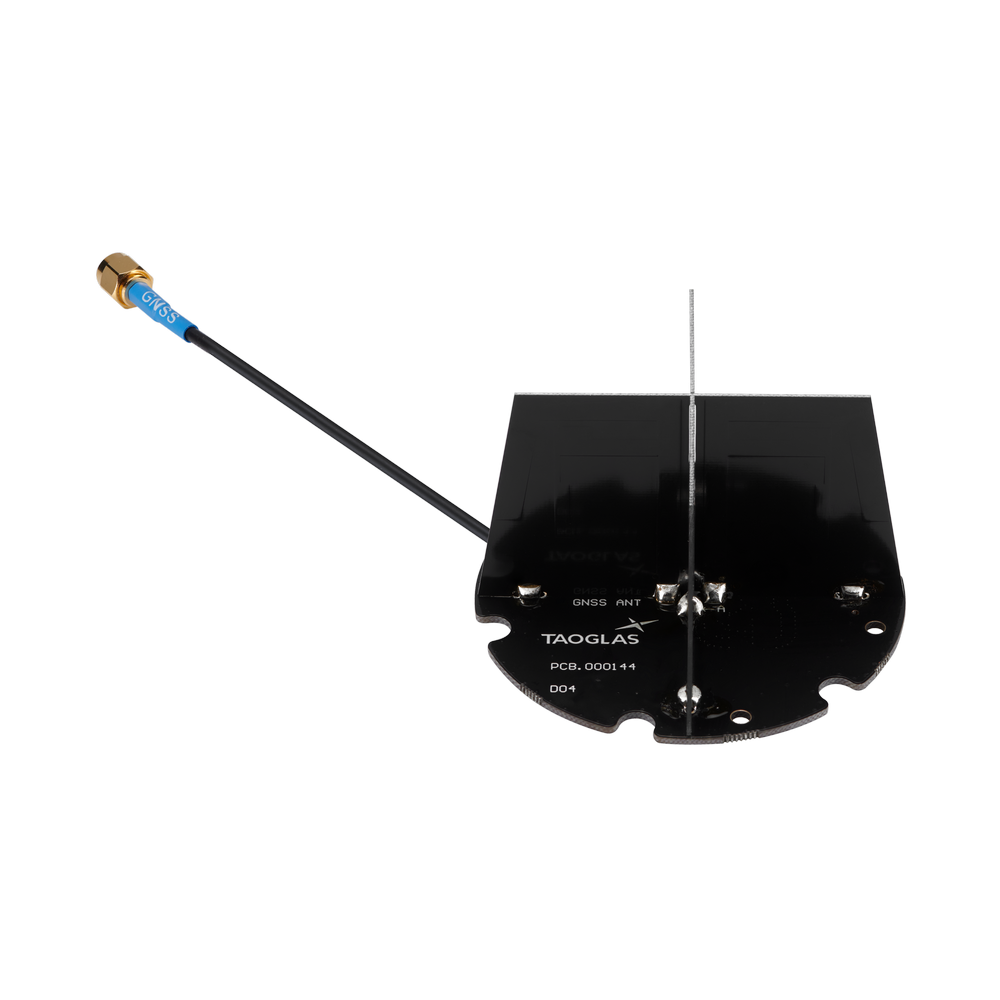

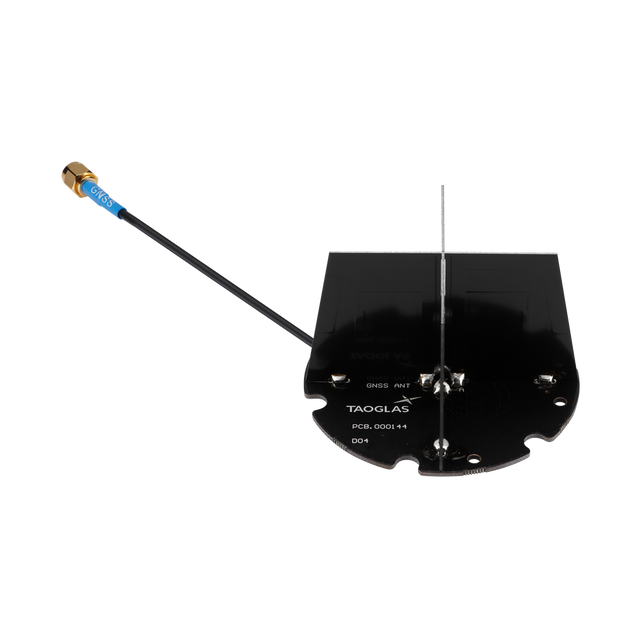

EAHP.60.01.0100D Antenna GNSS embedded screw mount Cross Dipole SMA-M 10cm

This embedded active multiband GNSS antenna is designed for high-performance positioning across the GNSS spectrum, helping improve accuracy and tracking stability in challenging environments. An integrated LNA and filtering support strong out-of-band rejection for more reliable GNSS reception.

Bands covered include:

• GPS/QZSS L1/L2/L5
• GLONASS G1/G2/G3
• Galileo E1/E5a/E5b/E6
• BeiDou B1/B2a/B2b/B3
• L-Band, QZSS L6 and NAVIC L5
• SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS

Typical applications include:

• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Inventory Management & Container tracking
• Telematics & Asset Tracking
• Timing Accuracy Synchronization

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 10cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Cross Dipole
Location: Internal
Mounting: Screw/Direct Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1176.45MHz - 1603MHz
GNSS Type: Active GNSS
GNSS Bands: L1/L2/L5
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 27.3
Dimensions: Ø75 x 44 mm
Weight: 75g
Connector Type: SMA(M) ST
Cable Length: 10cm
Cable Type: RG-174

Download Datasheet PDF
