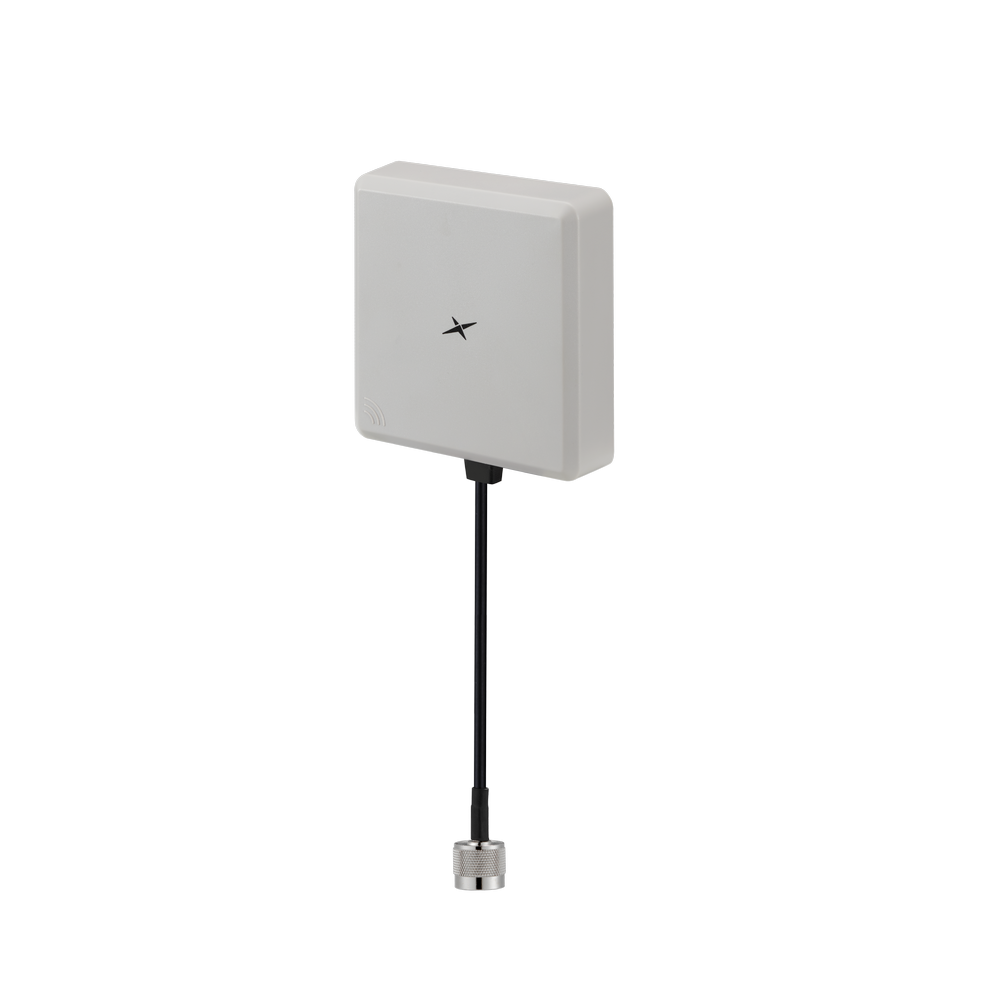

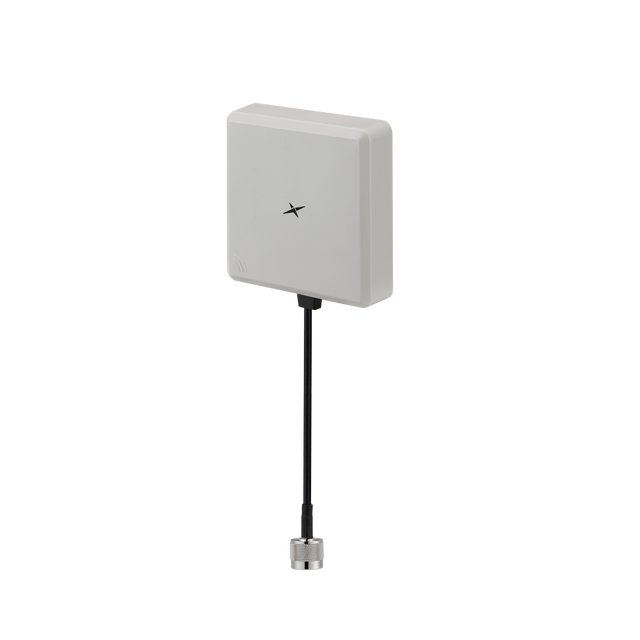

FG.26.A Antenna Super Compact High-Gain Wi-Fi, Bluetooth, ISM directional panel IP65 for Point to Point and Point to Multipoint Wireless Networks, In-building and Backhaul Networks, Smart City Applications, Wireless Surveillance Systems

This super-compact directional panel antenna is designed for focused 2.4 GHz short-range wireless links where higher link stability, longer range, and improved resilience are required. Its low-profile panel form factor supports directional coverage and is supplied with an adjustable mounting bracket to help tilt and swivel the antenna for optimal alignment.

Typical use cases include:

• Point to Point and Point to Multipoint Wireless Networks
• In-building and Backhaul Networks
• Long Range Wi-Fi® Coverage for Smart City Applications
• Wireless Surveillance Systems
• Wi-Fi® Hotspot Expansion, e.g. Factories and Dockyards

Technical Specifications

Operating Temperature: -40°C to 80°C
Location: External
Mounting: Multi-Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP65
Dimensions: Ø122 x 47 mm
Weight: 410g

Wi-Fi/BT/ISM

Frequency: 2400-2500MHz
Standards: Wi-Fi 2.4GHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Directional
Efficiency (%): 62.9
Average Gain (dB): -2.01
Peak Gain (dBi): 7.05
VSWR: 2:1
Max. input power: 10W
Connector Type: N Type (M)
Cable Length: 30cm
Cable Type: RG-58
