Description

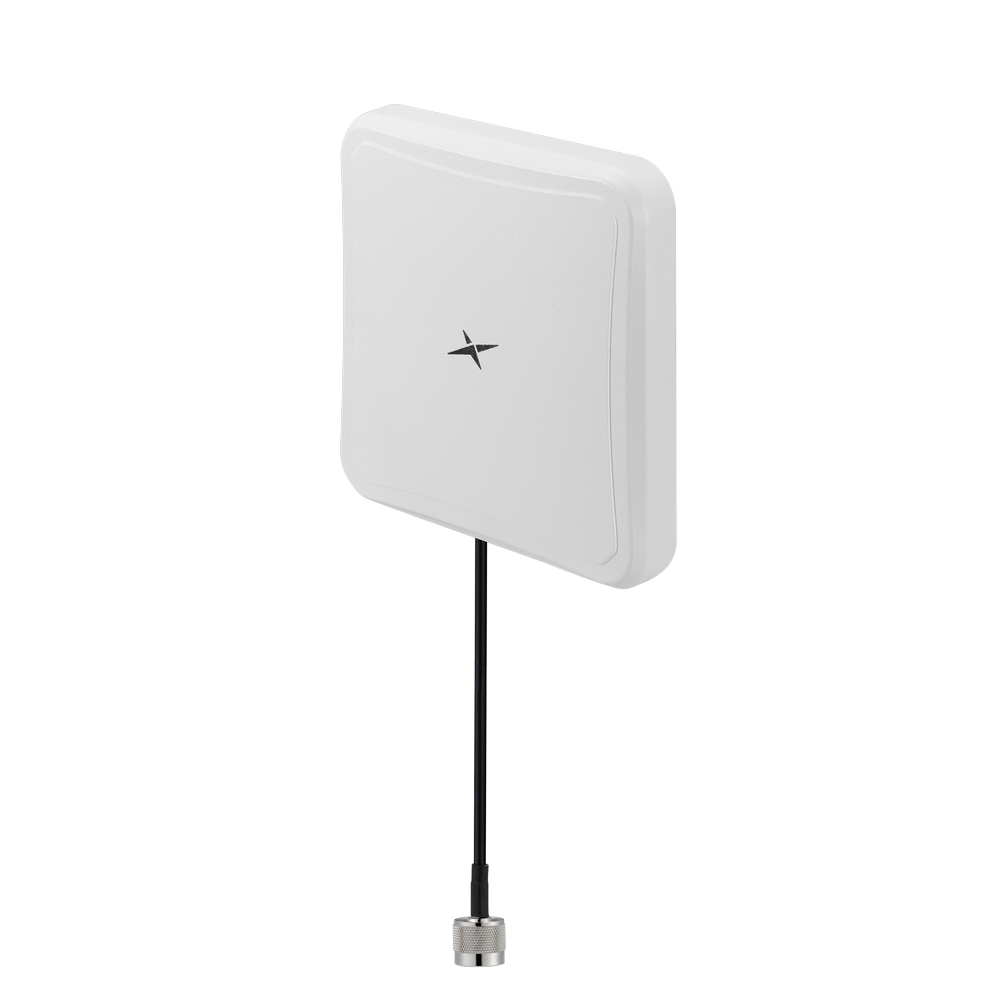

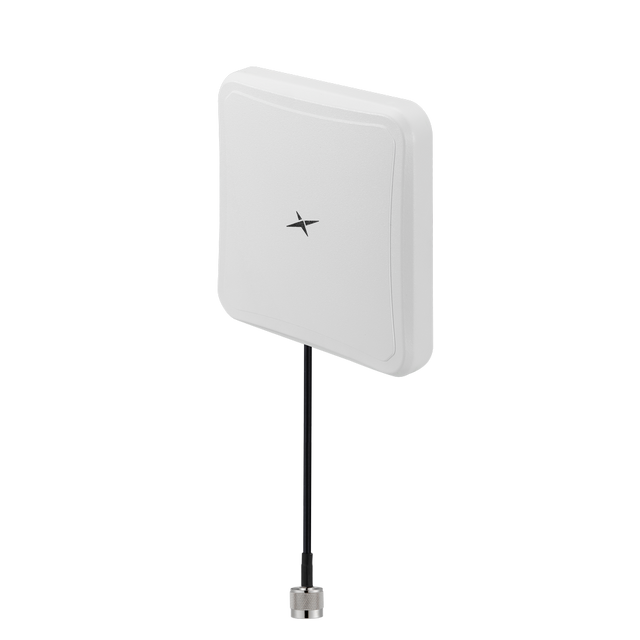

This compact directional panel antenna is designed for reliable long-range communication in the 868MHz ISM band. Its low-profile panel form factor delivers focused coverage for resilient links in demanding environments.
- Directional panel design for focused signal transmission and reception
- Rugged IP67-rated enclosure for outdoor and harsh-environment use
- Wall/pole mounting bracket included for flexible installation
- Suitable for ISM/LoRa deployments requiring stable performance
Typical applications include:
- Industrial Wireless Communication
- Environmental and Agricultural monitoring
- Medical and Healthcare
- RFID Systems for Asset Tracking and Access Control
Connector & Cable
- Connector Type: N-Type Male Connector
- Cable Length: 30cm
- Cable Type: RG-58
Technical Specifications
Operating Temperature: -40 C to 85 C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Multi-Mount
Type: Single
Frequency: 862-874 MHz
IP Rating: IP67
Dimensions: 190 x 190mm x 25mm
Impedance: 50
Polarization: Linear
VSWR: 2:1
RFID/ISM (868MHz)
Frequency: 862-874 MHz
Efficiency (%): 82.63
Average Gain (dB): -0.83
Peak Gain (dBi): 6.73
HPBW (degrees): 50 @ H, 70 @ V
FtB Ratio (dB): 15 max.
Radiation Pattern: Directional
Max. Input Power: 10W
Connector Type: N Type (M)
Cable Length: 30cm
Cable Type: RG-58
