FW.24.SMA.M Antenna Outdoor External Wi-Fi, Bluetooth, ISM flexible whip monopole Meteor IP65 for Weather monitoring systems, Motion/vibration sensors, Pollution monitoring, Border guard monitoring systems

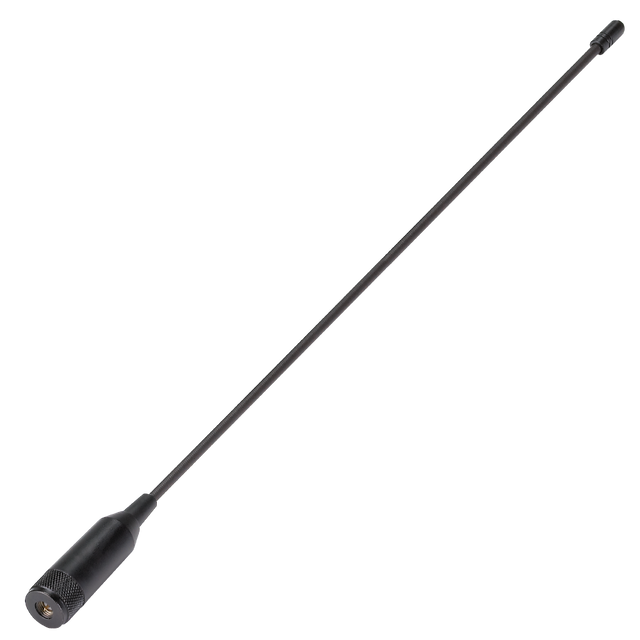

Meteor is a flexible 2.4GHz whip antenna designed for outdoor devices that need robust, reliable short-range wireless performance. Its rugged construction with an inner steel core helps it resist abrasion and maintain shape and RF performance in the field.

This antenna supports the 2.4GHz Wi-Fi/Bluetooth/ISM band to help deliver efficient wireless links (helping radios use less power during data transfer). For best results, it performs at its best when attached to a ground plane of at least 30 × 30 cm.

• Rugged outdoor-focused design
• Flexible whip format for durability
• Supports Wi-Fi/Bluetooth/ISM at 2.4GHz
• Well-suited to harsh environments with an IP65-rated enclosure

Typical use cases include: weather monitoring systems, motion/vibration sensors, pollution monitoring, and border guard monitoring systems.

Technical Specifications

Operating Temperature: -40°C to 80°C
Antenna Technologies: Monopole, Whip
Location: External
Mounting: Terminal Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP65
Dimensions: of at least 30*30cm. The whip is made of a fle x ible inner steel core covered by
Weight: 46.6 g

2.4GHz Wi-Fi/Bluetooth/ISM

Frequency: 2400-2500MHz
Standards: Wi-Fi/Bluetooth/ISM
Connector Type: SMA(M) Straight
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Efficiency: 64.5% (in free space), 79.3% (on 30x30cm ground)
Peak Gain: 4.26dBi (in free space), 4.48dBi (on 30x30cm ground)
Return loss: < -6dB (in free space), < -10dB (on 30x30cm ground)
VSWR: <= 3:1 (in free space), <= 2:1 (on 30x30cm ground)
Input Power: 2 W
Total Power: 10 W
