Description

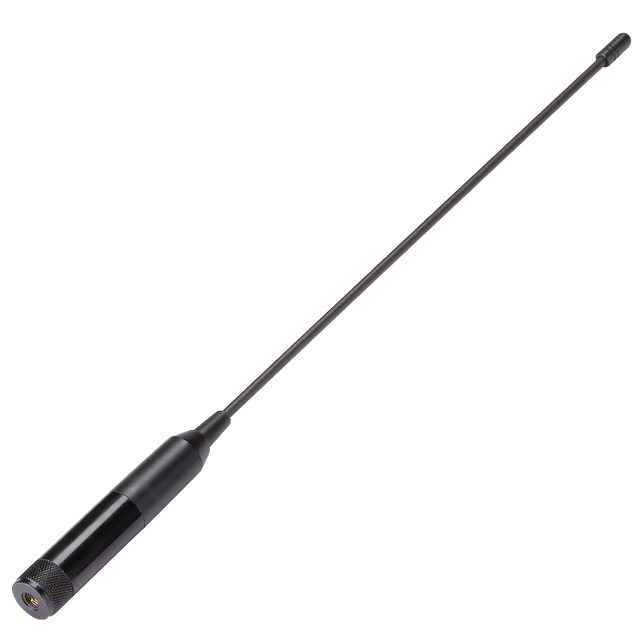

This flexible 433MHz whip monopole antenna is designed for outdoor ISM-band deployments where durability and consistent coverage are needed. Its omnidirectional radiation pattern supports wide-area links, while the flexible inner steel core helps the antenna retain its shape and performance after shock and repeated bending.
Typical use cases include wireless sensor monitoring, smart metering, remote asset monitoring, and security systems. For best results, use a ground plane with dimensions of at least 30×30 cm.
Connector & Cable
- Connector Type: SMA-Male Connector (Straight)
Technical Specifications
Operating Temperature: -40°C to 80°C
Antenna Technologies: Monopole, Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal
Type: Single
IP Rating: IP65
Dimensions: 323mm*Ø16mm
Weight: 66 g
ISM Band 433MHz
Frequency: 433.05MHz - 434.79MHz
Standards: ISM/LoRa
Center Frequency: 433MHz
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Efficiency: 66.42%
Peak Gain: 0.46dBi
VSWR: <= 1.5:1
Return loss: < -15dB
Input Power: 2 W
Total Power: 10 W
Connector Type: SMA Type(M) Straight
