Description

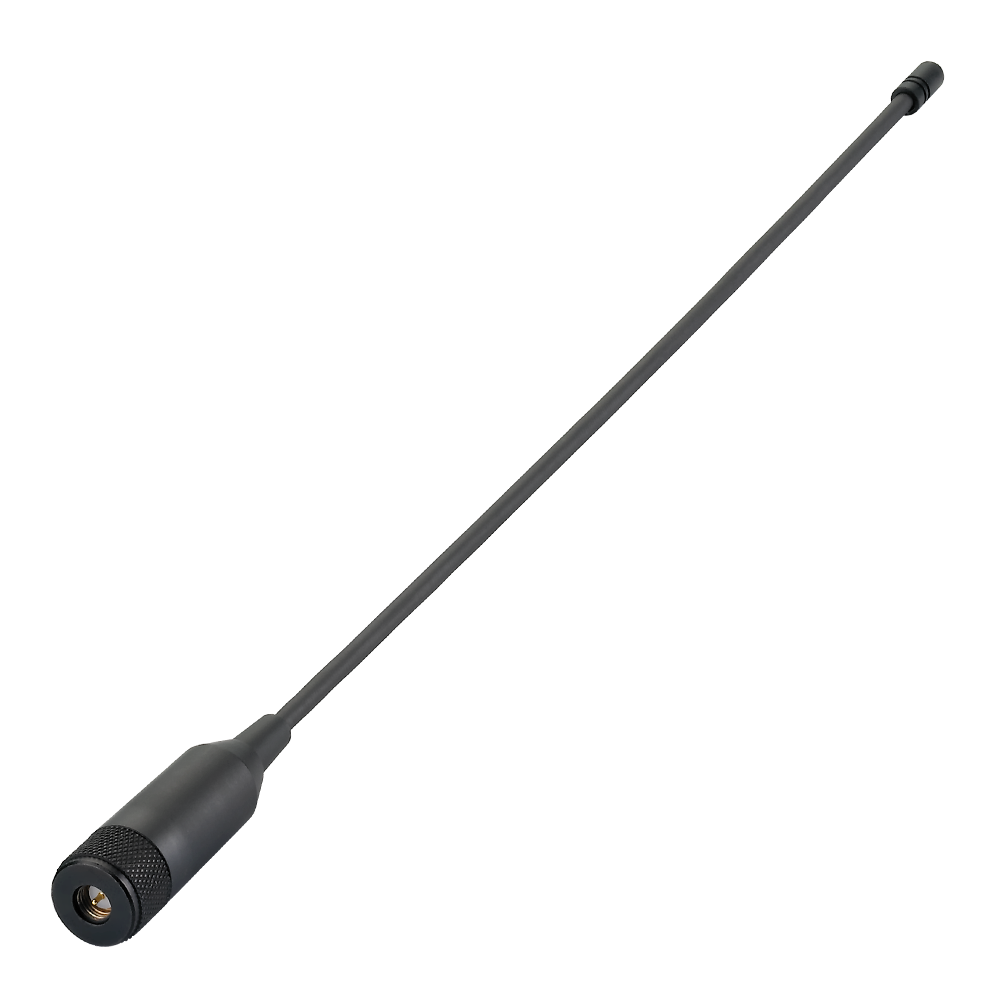

Meteor is a flexible 135MHz ISM-band 1/4-wave monopole whip antenna designed to deliver omnidirectional coverage for reliable low-frequency links.
Its robust, flexible whip construction helps withstand impacts while maintaining consistent RF performance, making it well-suited for demanding outdoor deployments.
Typical use cases include Wireless M-Bus metering, remote asset monitoring, alarms, paging systems, and private mobile radio services.
Integration note: Like most low-frequency monopole antennas, it should be mounted to a metal plate/ground plane to radiate properly.
Connector & Cable
- Connector Type: SMA-Male Connector (SMA(M))
Technical Specifications
Operating Temperature: -40°C to 80°C
Antenna Technologies: Monopole, Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Connector Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 135MHz
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omnidirectional
VSWR: <2:1
Peak Gain: 0dBi
Efficiency: 40%
Input Power: 50W
Tested Power: 10W
IP Rating: IP65
Dimensions: 353 x Ø16 mm
Weight: 38g
