Description

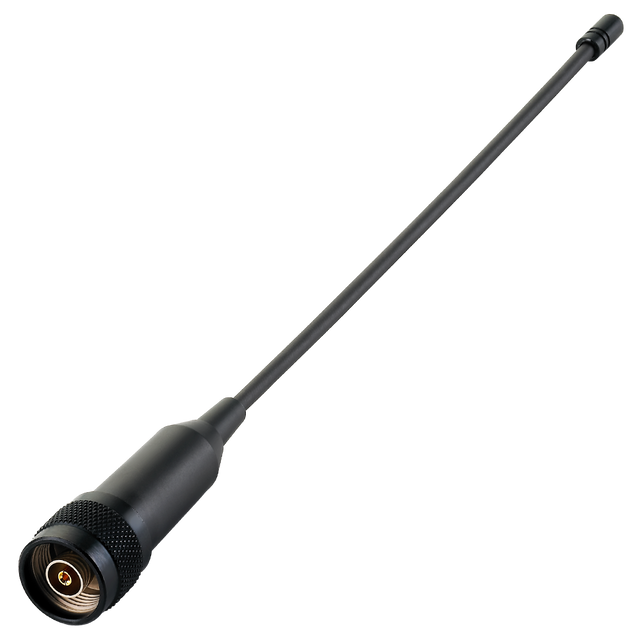

Flexible cellular whip antenna designed for reliable 2G/3G connectivity in demanding outdoor environments. Its flexible inner steel core helps it withstand impacts while maintaining shape and RF performance, supporting wider coverage and more dependable links.
- Flexible, collision-resistant whip: built to survive harsh real-world handling
- Outdoor-ready enclosure: suited for exposed installations
- Wideband cellular coverage: intended to support common global 2G/3G bands
- Use cases: automotive and industrial connectivity
Connector & Cable
- Connector Type: RP-N-type Male Connector
Technical Specifications
Operating Temperature: -40°C to 80°C
Antenna Technologies: Monopole, Whip
Cellular Technologies: 3G
Location: External
Mounting: Terminal Mount
Type: Single
IP Rating: IP65
Frequency: 824-896, 880-960, 1710-1880, 1850-1990, 1710-2170 MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Input Power: 50 W
Dimensions: Height 274 ± 5 mm; Base Diameter 20 ± 0.1 mm; Whip Diameter 4 ± 0.2 mm
Weight: 50.5g
