FW.95.B.SMA.M Antenna Outdoor High-Gain ISM, LoRa flexible whip Meteor SMA-M IP65 for Weather Monitoring, Motion/Vibration Sensors, Pollutants Monitoring

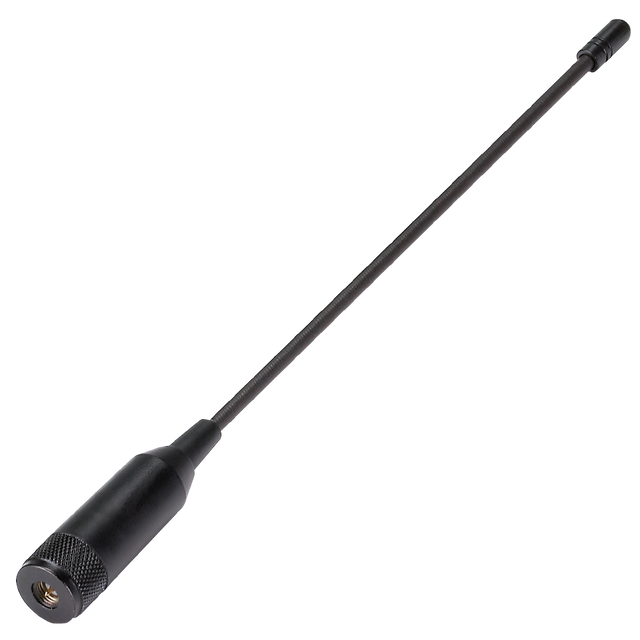

Flexible 915MHz Whip Antenna

This flexible whip monopole antenna is designed for outdoor ISM-band operation, providing wide, omni-directional coverage and efficient performance for low-power wireless links. Its robust inner steel core and rugged housing help it retain shape and RF performance after shocks and abrasion.

Typical use cases include weather monitoring, motion/vibration sensors, and pollutants monitoring. For best performance, use with a suitable ground plane; where a ground plane is not available, consider alternatives such as TI.19 or OMB.915.

Connector & Cable

• Connector Type: SMA-Male Connector

Technical Specifications

Operating Temperature: -40°C to 80°C
Antenna Technologies: Monopole, Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Weight: 38 g
Dimensions: of at least 30 x 30 cm. For an environment where there is no ground-plane availabl
Base Diameter: 16 ± 0.6 mm
Whip Diameter: 6.2 ± 0.6 mm

ISM Band 915MHz

Frequency: 902MHz - 928MHz
Standards: ISM/LoRA
Peak Gain: 2.71 dBi (at 915MHz)
Efficiency: 60.60% (at 915MHz, on 30×30cm ground plane)
Impedance: 50 Ω
VSWR: <= 2:1
Return Loss: < -10 dB
Polarization: Linear
Radiation Pattern: Omni-Directional
Input Power: 2 W
Tested Power: 10 W
Connector Type: SMA(M) Straight

Download Datasheet PDF
