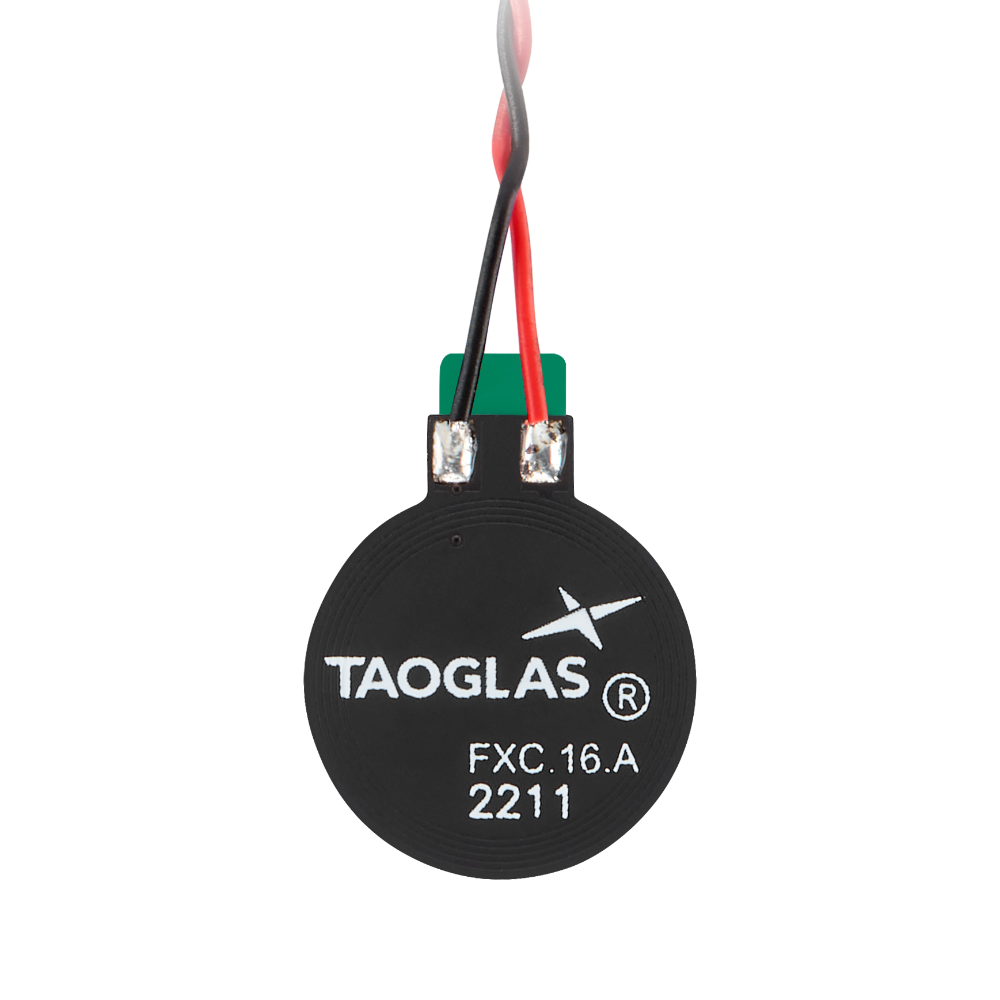

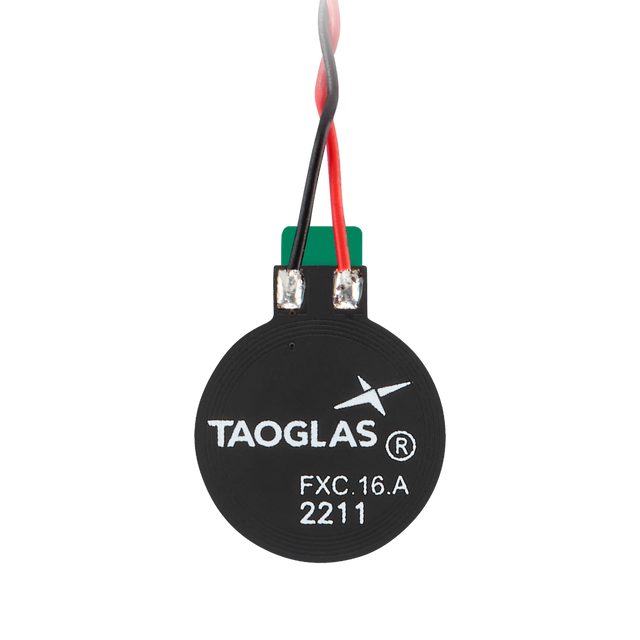

FXC.16.52.0075X.A.DG Antenna Low-Profile NFC flex adhesive ACH(F) 7.5cm for Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This low-profile, flexible NFC antenna is designed for two-way read/write operation at 13.56MHz and is intended for embedded placement inside device enclosures. A ferrite flux director helps provide isolation from nearby components such as internal batteries, supporting more consistent near-field communication performance in compact device layouts.

• Designed for NFC (13.56MHz): Optimized for short-range near-field communication use cases.
• Flexible, low-profile form factor: Suitable for integration in space-constrained products.
• Ferrite flux director: Helps reduce detuning and losses when installed near batteries or other electronics.
• Adhesive backing: Supports fast internal placement during assembly.

Typical use cases include: Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Air cargo tracking, Access control, Electronic Keys.

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single

NFC

Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
Inductance (La): 1.07 µH
Resistance (Rs): 2.88 ohm
Q Factor: 31.7
Self-Resonance Frequency: 83.6 MHz
Parallel Resistance (Rp): 6.14 kohm
Dimensions: ⌀16*0.3 mm
Thickness: 0.27 mm
Adhesive: 3M467 or 3M9460
Weight: 1 g
RoHS Compliant: Yes
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
