Description

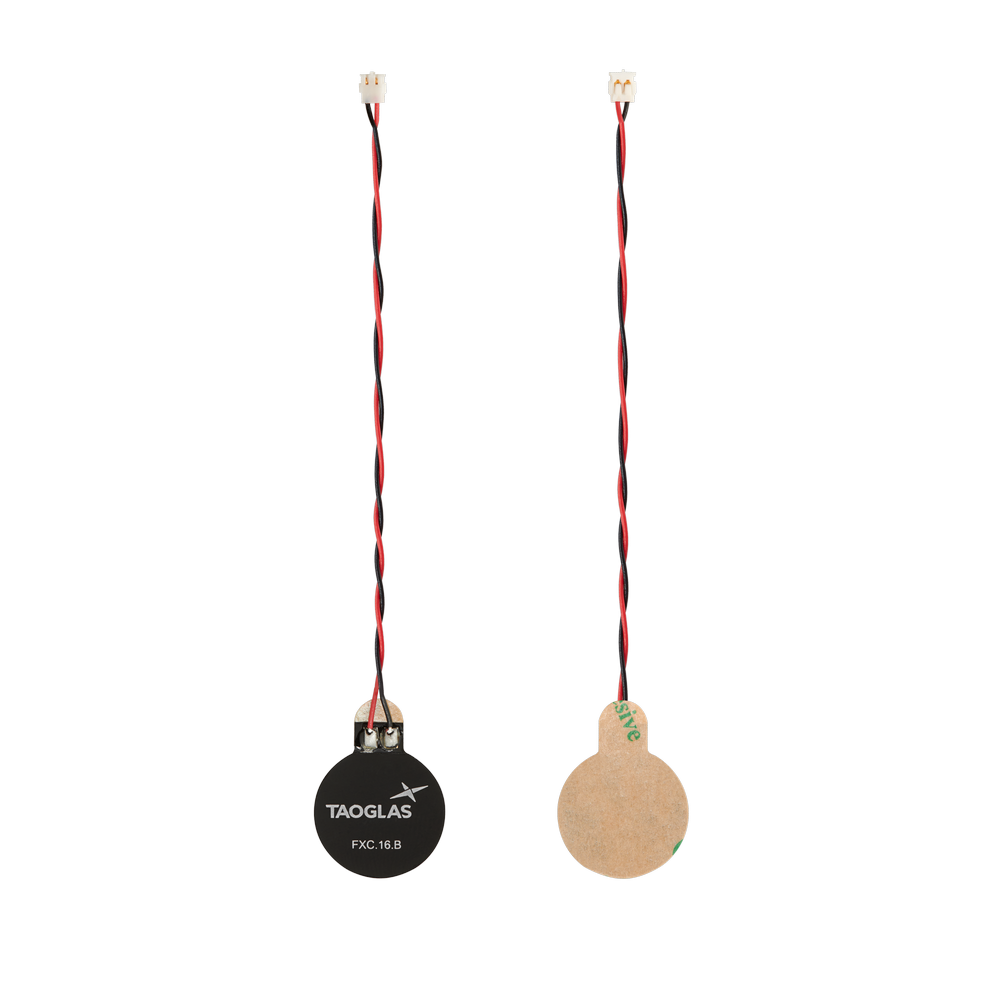

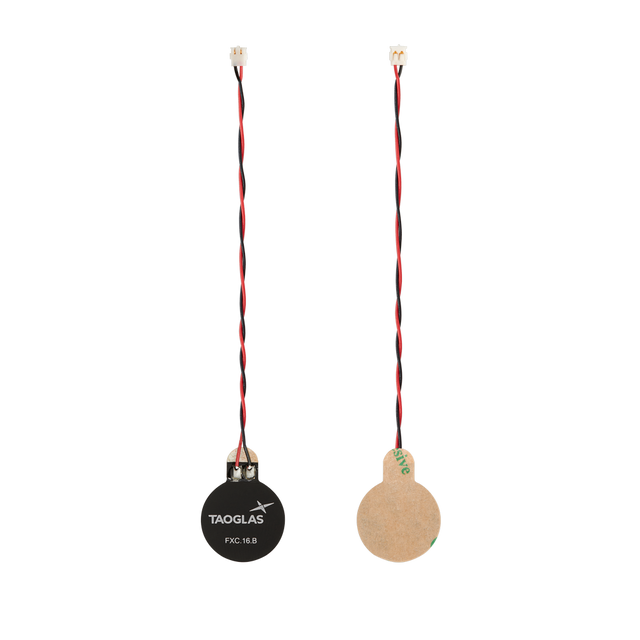

Flexible embedded NFC antenna designed for 13.56 MHz applications where compact size and easy integration are required. The reverse ferrite layer helps provide isolation from nearby electronic components (such as internal batteries), supporting more consistent NFC communication when installed in challenging device environments.
- Flexible, low-profile construction for embedded device integration
- Reverse ferrite layer to help reduce performance loss near conductive components
- Adhesive backing for quick “peel-and-stick†placement inside enclosures
- Well suited for NFC/RFID-enabled product designs requiring reliable close-range operation
Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Mechanical Style: Flex PCB with Ferrite
Dimensions: ⌀16*0.3 mm
Weight: 4 g
NFC
Frequency: 13.56 MHz
Impedance (Ohm): 50
Polarisation: Linear
La: 1.10 µH
Rs: 2.74 ohm
Q Factor: 33.90
Self-Resonance Frequency: 744 MHz
Rp: 48.21 kohm
Adhesive: 3M467 or 3M9460
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
