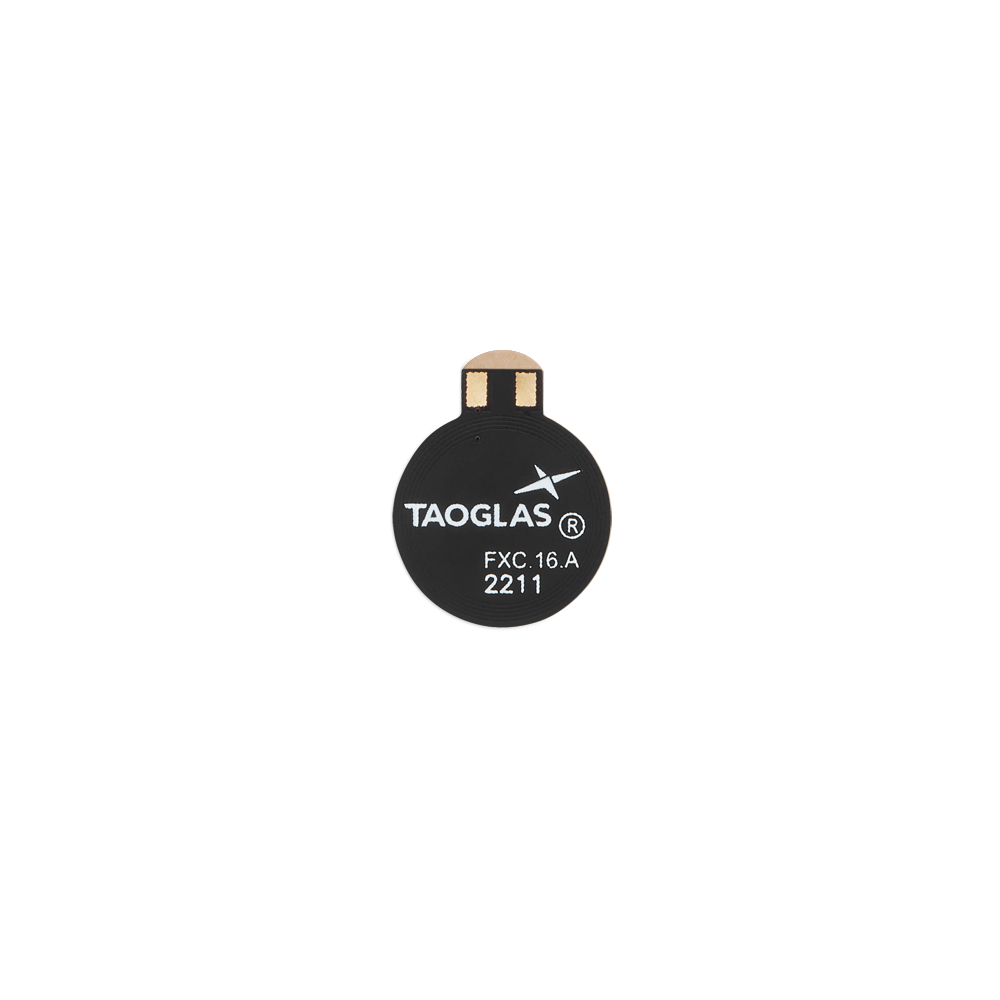

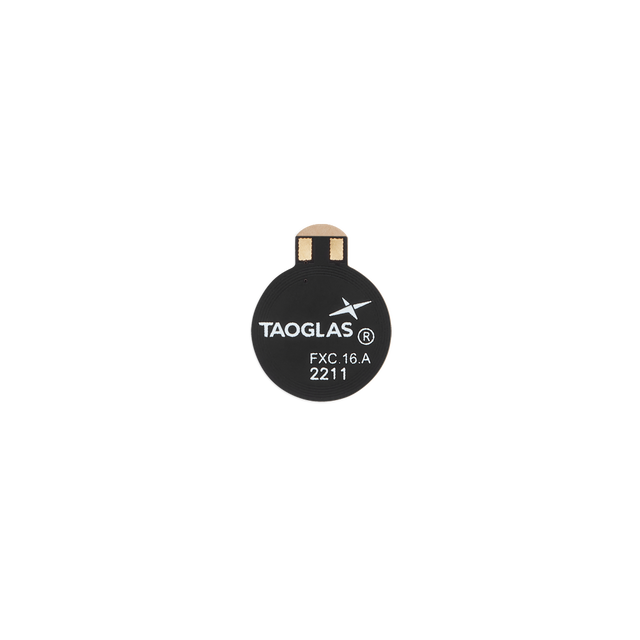

FXC.16.A Antenna NFC 13.56MHz flex PCB adhesive

FXC.16.A is a compact, flexible Near Field Communications (NFC) antenna designed for two-way read/write operation at 13.56MHz. Its low-profile flexible construction with adhesive backing helps simplify integration into space-constrained devices.

• Flexible form factor for embedded designs
• Adhesive backing for quick placement inside device housings
• Suitable for mounting inside plastic enclosures or on internal batteries (ferrite-backed variants are available to help reduce coupling to nearby conductive components)
• Plated contact pads enable connection using pogo pins or spring clips (e.g., CC.001)

Typical applications

• Mobile devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: ⌀16*0.16 mm
Weight: 1 g

NFC

Frequency: 13.56MHz
Impedance: 50Ω
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Cable Length: None
RoHS: Yes
