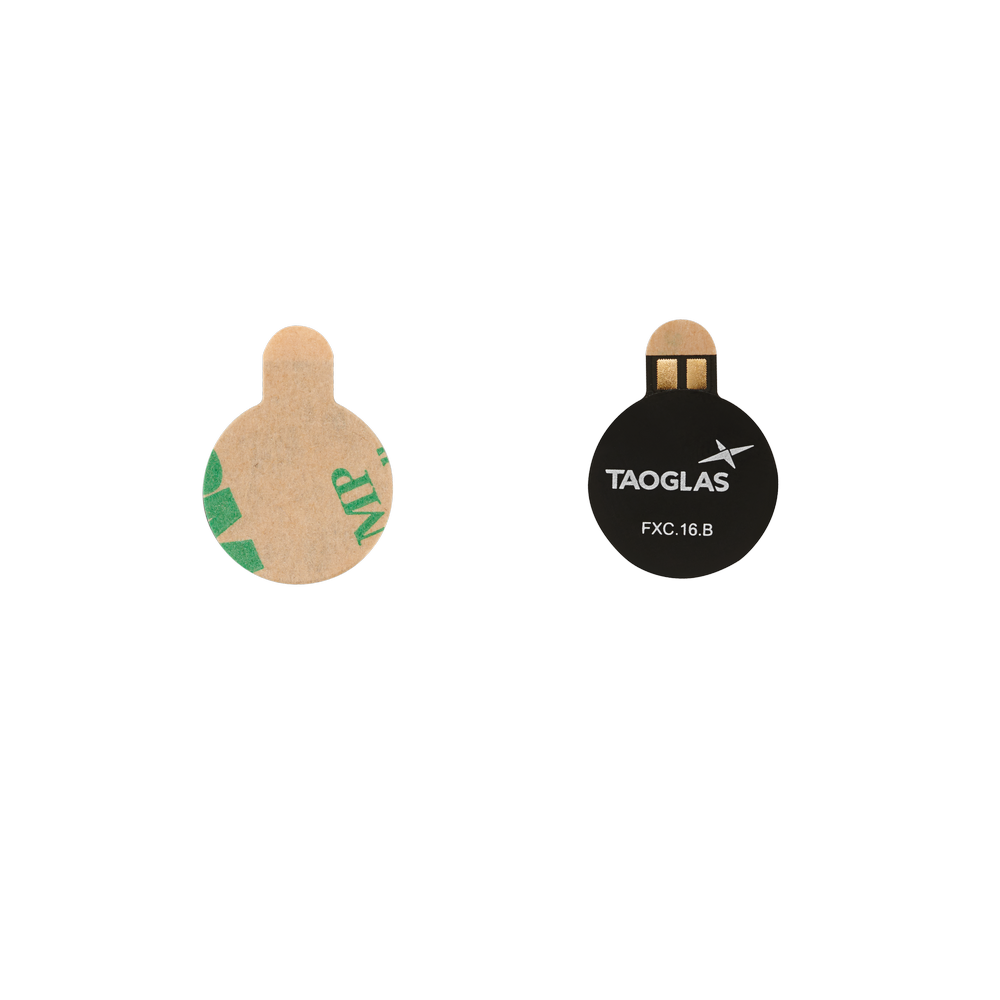

FXC.16.B.dg Antenna Flexible Low-Profile Embedded NFC flex adhesive for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible, low-profile embedded NFC antenna is designed for compact IoT and mobile device integration where reliable 13.56MHz near-field communication is required. The reverse ferrite layer helps reduce performance losses when installed near batteries or other electronics, while the adhesive backing enables fast placement inside device enclosures.

• Flexible, low-profile form factor for space-constrained designs
• Reverse ferrite layer to help isolate the antenna from nearby conductive components
• Adhesive backing for quick internal mounting
• Suitable for NFC / RFID-related use cases such as payments and access control

Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: ⌀16*0.3 mm
RoHS Compliant: Yes
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH

NFC

Frequency: 13.56 MHz
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
Termination: Contact pads (no cable)
Inductance (La): 1.03 µH
Series Resistance (Rs): 2.83 ohm
Q Factor: 30.89
Self-Resonance Frequency: 705 MHz
Parallel Resistance (Rp): 96.44 kohm
Adhesive: 3M467 or 3M9460
Weight: 2.5 g
