Description

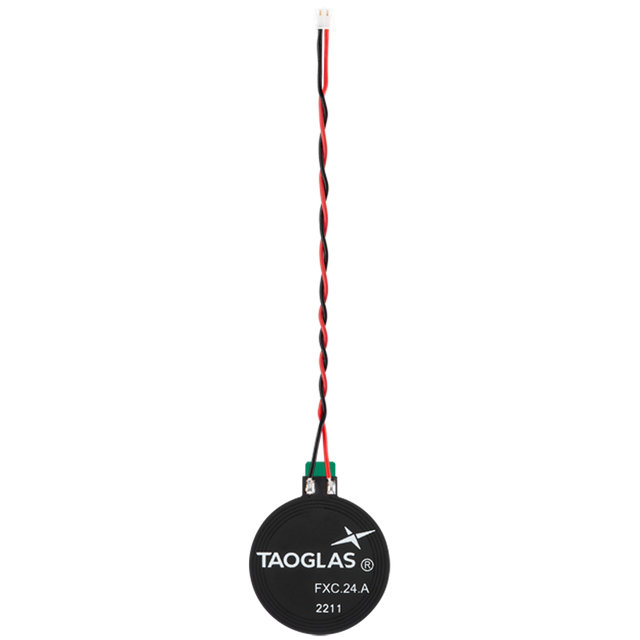

This compact, flexible NFC (Near Field Communications) antenna is designed for two-way read/write operation at 13.56MHz in embedded device designs. A ferrite flux director helps reduce detuning and performance loss when installed near batteries or other electronics, and the adhesive backing supports fast integration inside a plastic enclosure.
Typical use cases include:
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access Control and Electronic Keys
Customization for specific device environments (shape and impedance matching) can be supported subject to NRE and MOQ.
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: ⌀24*0.3 mm
Weight: 1 g
RoHS: Yes
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
La: 1.0 µH
Rs: 1.98 ohm
Q Factor: 43
Self-Resonance Frequency: 83 MHz
Rp: 4.43 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG
