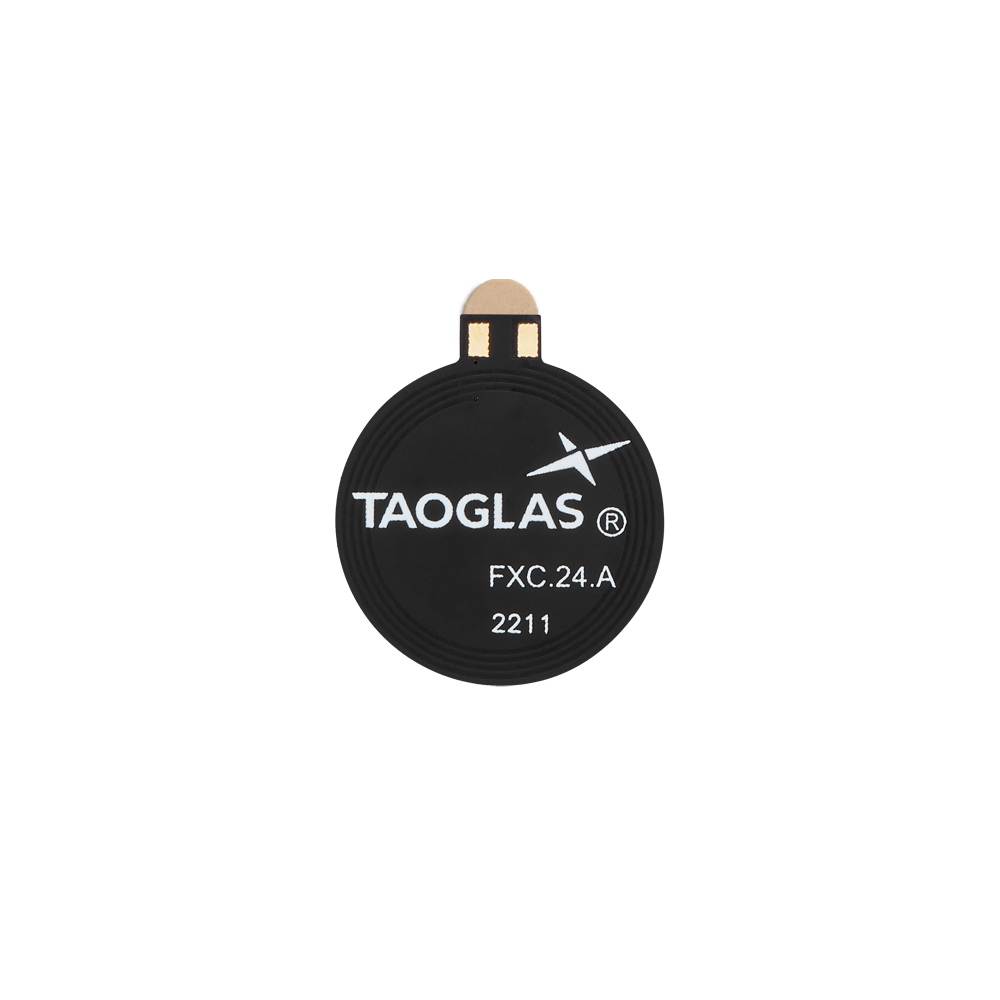

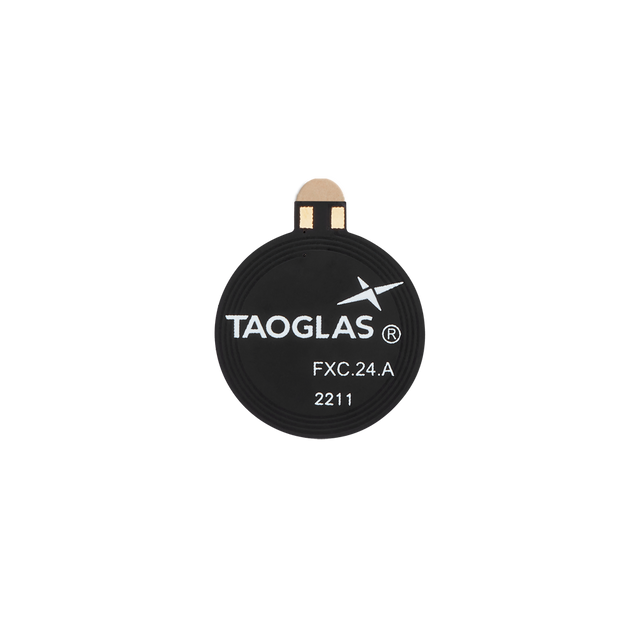

FXC.24.A Antenna NFC 13.56MHz Flex PCB adhesive for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This compact NFC (Near Field Communications) antenna is designed for high-performance two-way read/write operation at 13.56MHz. Its flexible, low-profile form factor with adhesive backing supports quick integration into space-constrained embedded products.

• Flexible embedded design: Fits inside plastic enclosures and tight internal spaces
• Adhesive-backed mounting: Simplifies placement during assembly
• Integration-friendly: Suitable for a wide range of embedded NFC use cases
• Variant options: Ferrite-layer variants are available to help isolate the antenna from nearby conductive components (such as internal batteries)

Typical applications

• Mobile devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Customized antennas for specific applications, shape, and impedance match can be provided for an NRE and subject to MOQ.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive, SMD/SMT
Short-Range Wireless Standards: NFC
Type: Single
Technology: Embedded Antennas, NFC
Mechanical Style: Flex PCB
Impedance: 50Ω
Frequency: 13.56MHz
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Cable Length: None
Length: 24mm
Width: 24mm
Height: 0.14mm
Weight: 1g
RoHS: Yes
