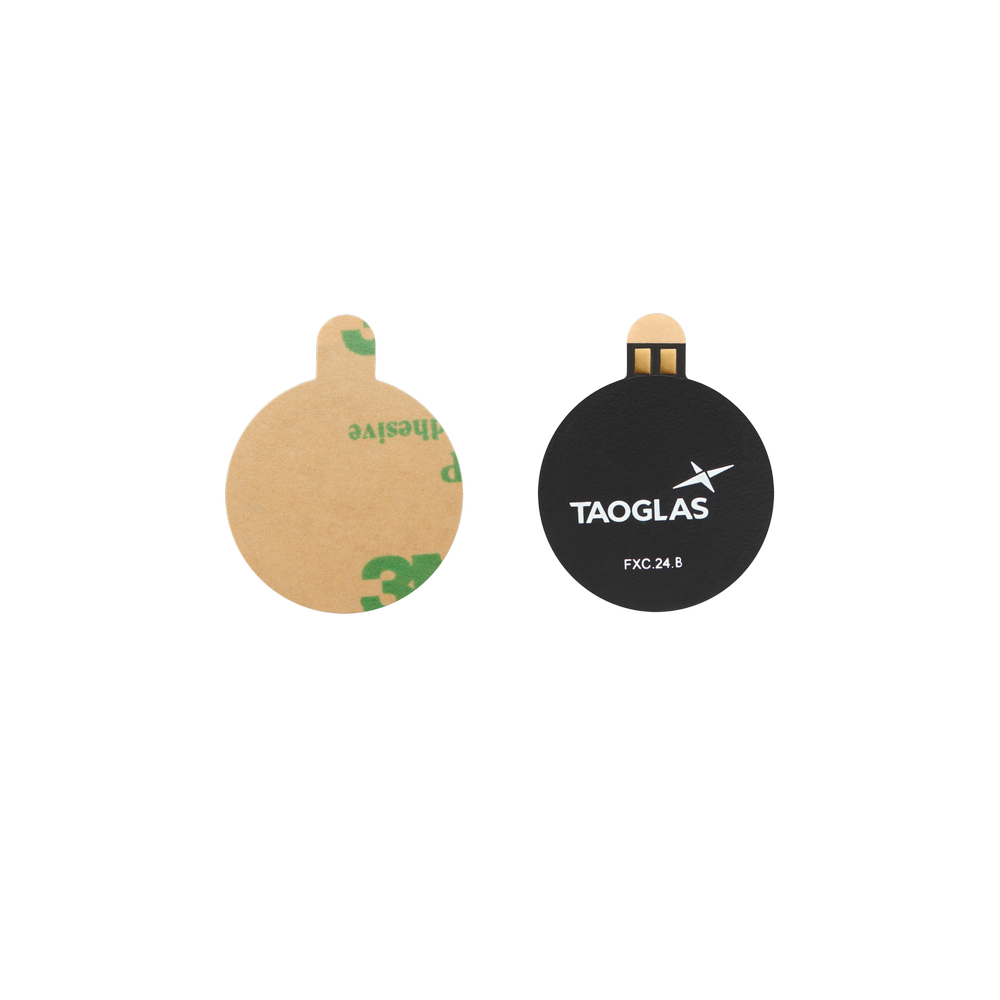

FXC.24.B.DG Antenna Flexible Embedded NFC adhesive flex PCB for Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible embedded NFC antenna is designed for compact IoT and mobile devices operating at 13.56MHz. Its reverse ferrite layer helps isolate the antenna from nearby components such as internal batteries, supporting more consistent contactless communication performance in challenging device environments.

The integrated peel-and-stick adhesive backing enables quick placement inside plastic enclosures or directly onto internal components during device assembly.

• Optimized for 13.56MHz NFC: ideal for contactless and proximity interactions
• Reverse ferrite layer: helps reduce performance loss when mounted near conductive parts
• Flexible, low-profile format: supports space-constrained embedded designs
• Adhesive-backed: simplifies integration inside device housings

Typical applications include: Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access control.

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Flex PCB with Ferrite
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: ⌀24*0.3 mm
Weight: 5.4 g
RoHS: Yes

NFC

Frequency: 13.56 MHz
Impedance: 50Ω
Inductance (La): 0.96 µH
Series Resistance (Rs): 1.97 ohm
Q Factor: 41.28
Self-Resonance Frequency: 599 MHz
Parallel Resistance (Rp): 86.91 kohm
Adhesive: 3M467 or 3M9460
Termination Style: SMD/SMT
Connector Type: n/a
Cable Length: None
