Description

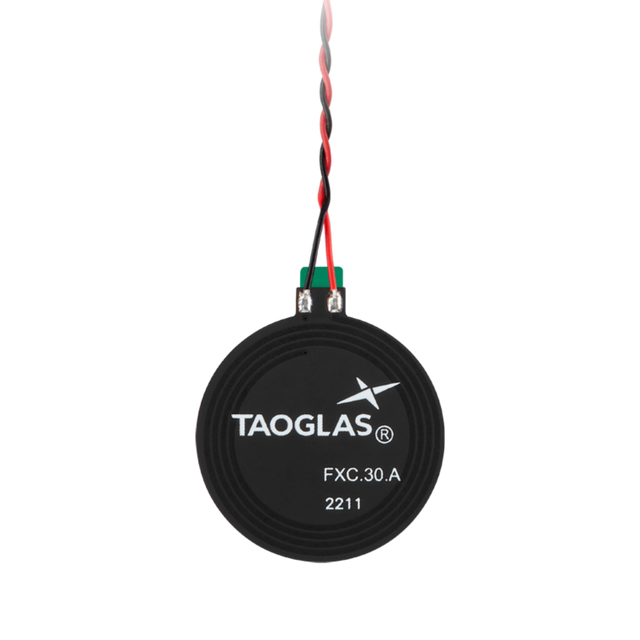

FXC.30.52.0075X.A.DG is a flexible NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. Its compact, low-profile form factor and integrated ferrite flux director help improve performance when installed near batteries or other electronics inside a device enclosure.
The adhesive-backed flex construction supports fast placement onto internal plastic surfaces and enables space-efficient integration in portable and compact electronics.
- 13.56MHz NFC operation for close-range interaction
- Flexible, low-profile embedded format for internal integration
- Ferrite flux director to help reduce detuning near conductive components
- Adhesive backing for quick installation
Typical applications include:
- Mobile Devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access control
- Electronic Keys
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: ⌀30*0.3 mm
Thickness: 0.27 mm
Weight: 1 g
Humidity: Non-condensing 65°C 95% RH
RoHS Compliant: Yes
Adhesive: 3M467 or 3M9460
NFC
Frequency: 13.56 MHz
Impedance (Ohm): 50
Polarization: Linear
La: 1.05 µH
Rs: 1.74 ohm
Q Factor: 51.4
Self-Resonance Frequency: 76.9 MHz
Rp: 3.75 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG
