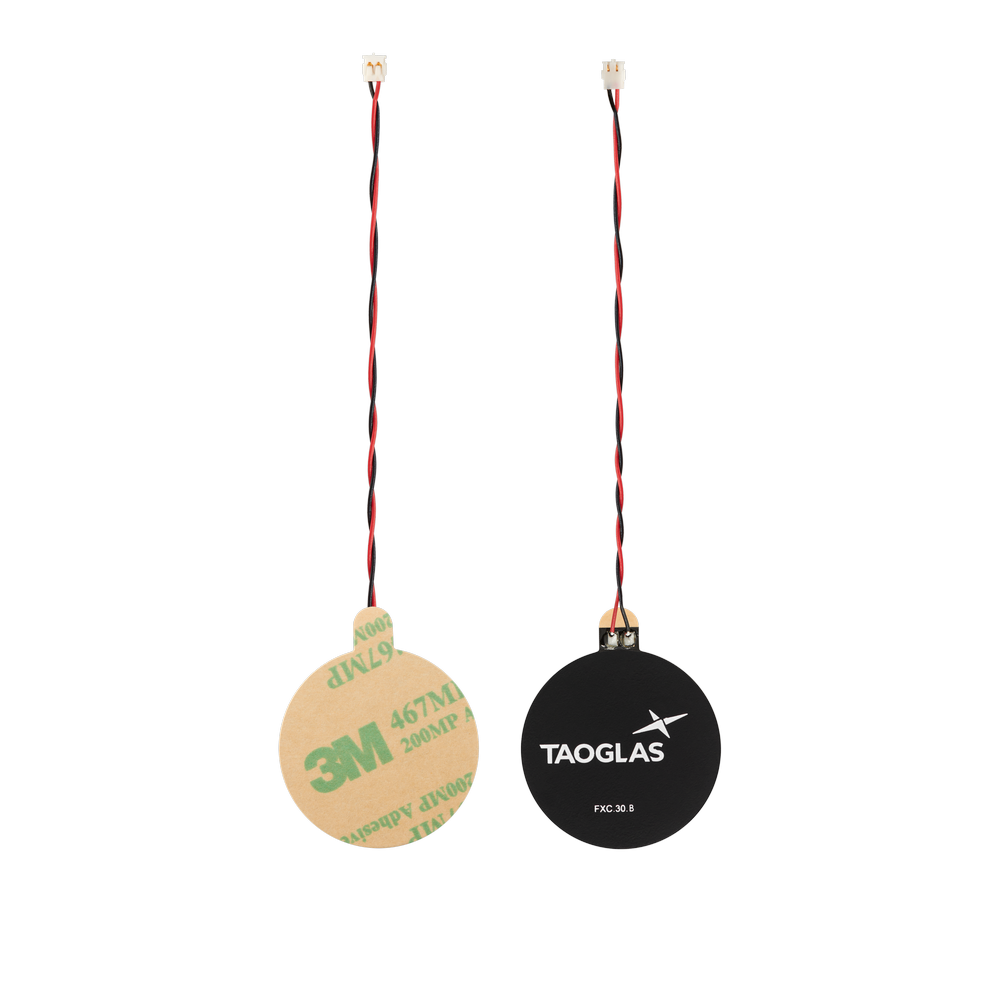

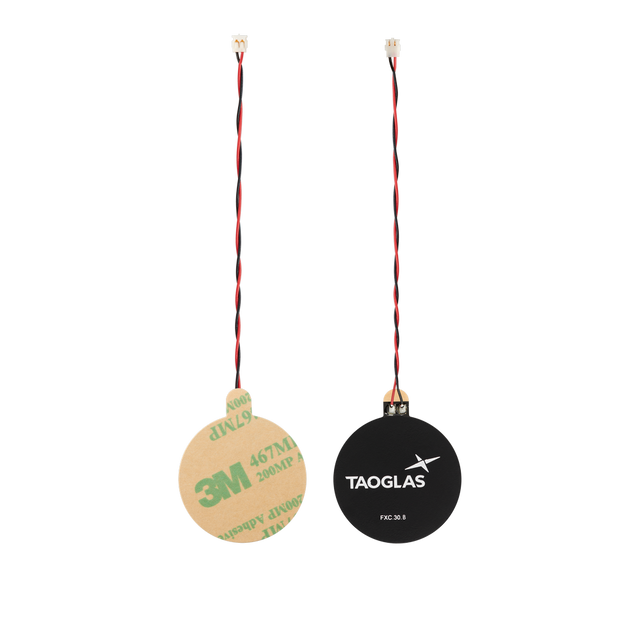

FXC.30.52.0075X.B.DG Antenna Flexible Embedded NFC 13.56MHz adhesive flex ACH(F) 7.5cm for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible, low-profile NFC flex antenna is designed for embedded integration in space-constrained devices. An upward-facing reverse ferrite layer helps reduce detuning and performance loss when mounted near batteries or other electronics, while the peel-and-stick adhesive backing enables fast, clean installation inside plastic enclosures.

• Reliable NFC performance: Optimized for 13.56 MHz use cases such as tap-to-interact, identification, and short-range data exchange
• Reverse ferrite layer: Helps provide isolation from conductive components and improves in-device consistency
• Flexible, low-profile form factor: Supports installation on curved or tight internal surfaces
• Adhesive backing: Enables quick “peel-and-stick” internal placement

Typical applications include:

• Mobile devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56 MHz
Impedance: 50Ω
Polarisation: Linear
Dimensions: ⌀30*0.3 mm
Weight: 9.2g
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
RoHS: Yes
