Description

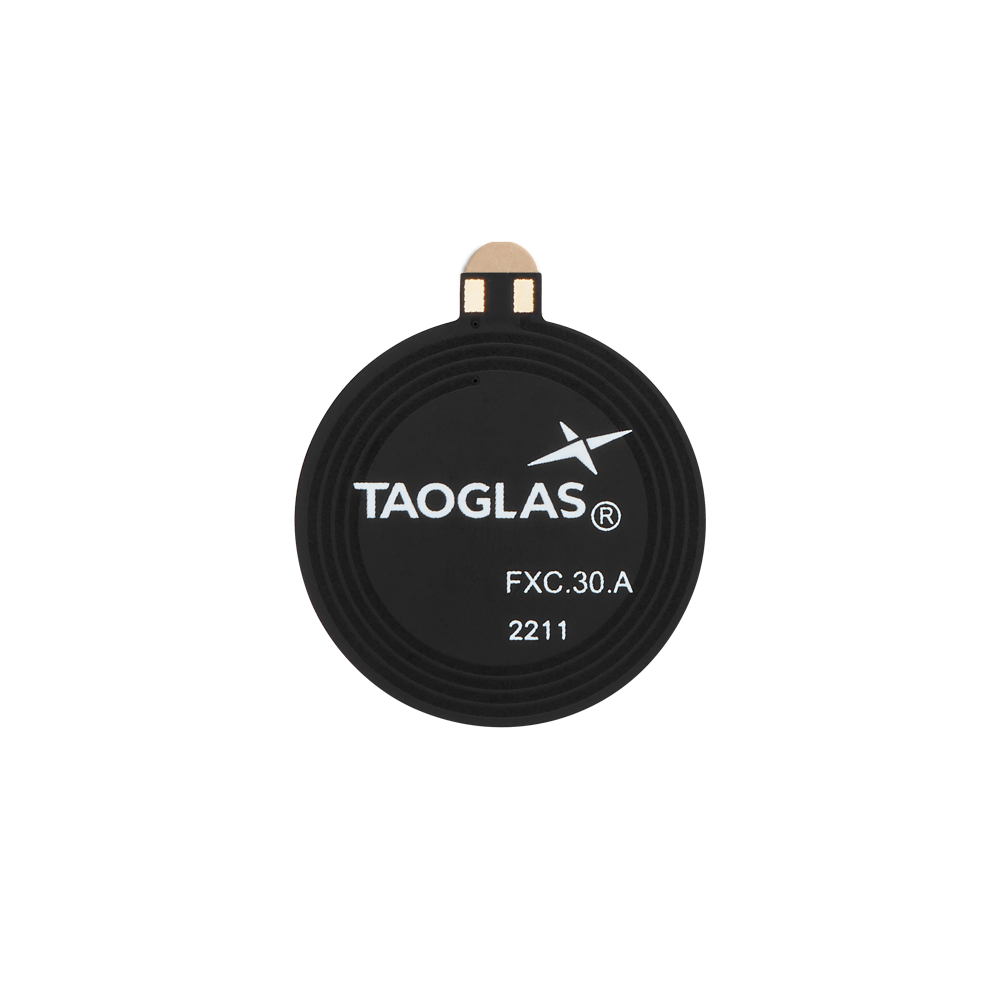

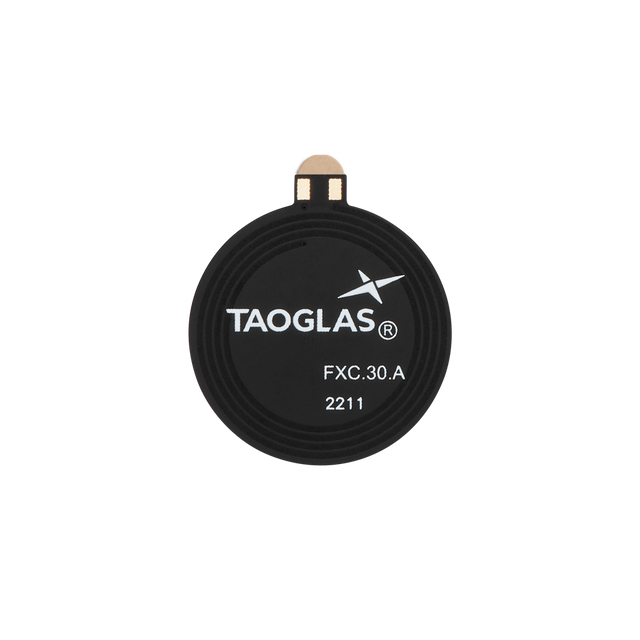

FXC.30.A is a compact NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. Its flexible construction and adhesive backing support quick integration inside plastic enclosures or onto internal components where space is limited.
- Designed for NFC: Optimized for 13.56MHz applications
- Flexible, space-saving format: Supports embedded integration in compact devices
- Fast integration: Adhesive backing for simple placement during assembly
- Isolation options: Variants with ferrite flux directors are available for use near batteries or other components
Typical applications include:
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Customized designs for specific applications, shapes, and impedance matching may be available (NRE and MOQ may apply).
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56MHz
Impedance: 50
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Length: 30 mm
Width: 30 mm
Height: 0.14 mm
Weight: 1 g
RoHS: Yes
