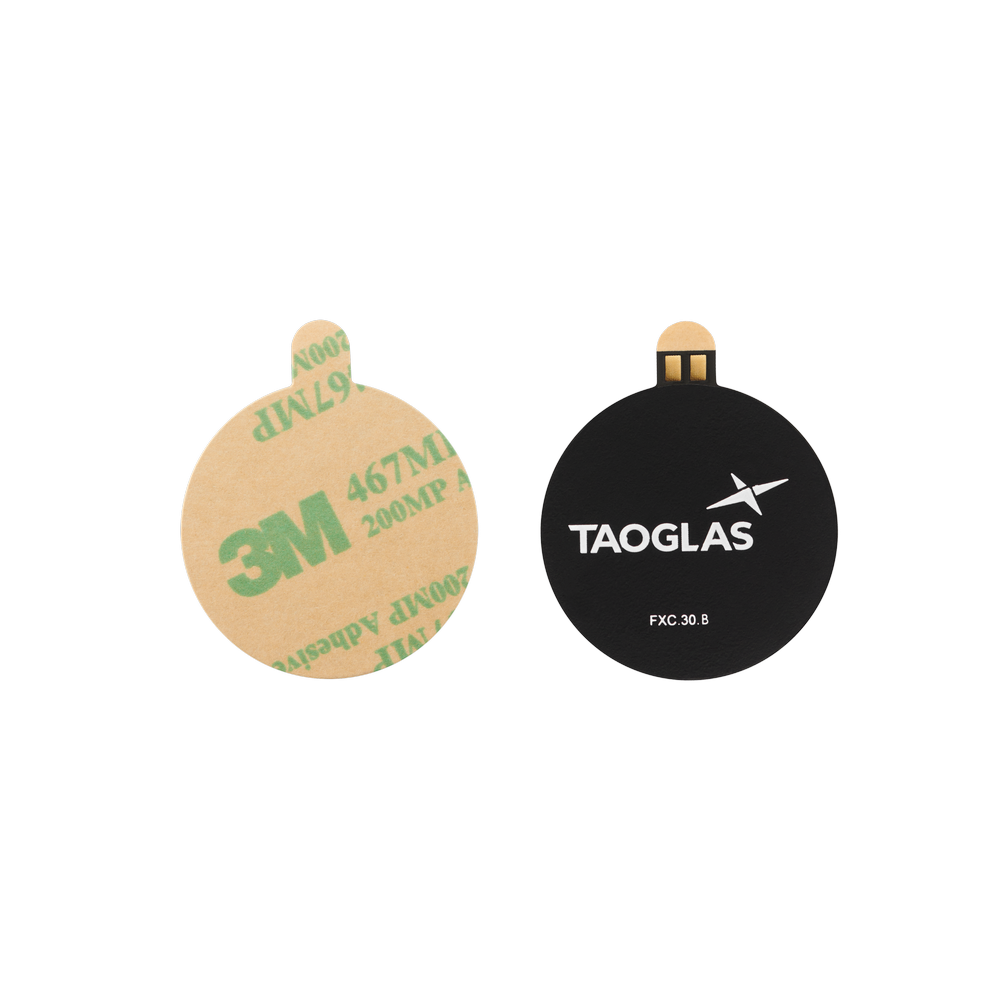

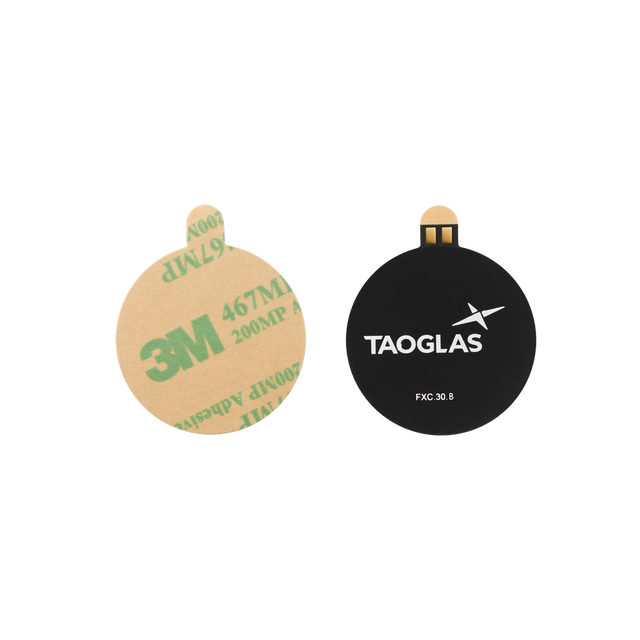

FXC.30.B.DG Antenna Flexible Low-Profile NFC adhesive flex PCB Contact Pads for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible NFC antenna is designed for embedded integration in compact IoT and mobile devices. Its reverse ferrite layer helps isolate the antenna from nearby conductive components (such as batteries), supporting more consistent NFC communication performance.

• 13.56 MHz NFC operation for short-range contactless communication
• Reverse ferrite layer to help reduce detuning and losses near conductive surfaces
• Flexible, low-profile format for tight internal installations
• Peel-and-stick adhesive backing for quick placement inside enclosures

Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Impedance: 50Ω
Dimensions: ⌀30*0.3 mm
Weight: 7.4g
Mechanical Style: Flex PCB with Ferrite
Termination Style: SMD/SMT
RoHS: Yes

NFC

Frequency: 13.56 MHz
Connector Type: Contact pads (no cable)
Cable Length: None
