Description

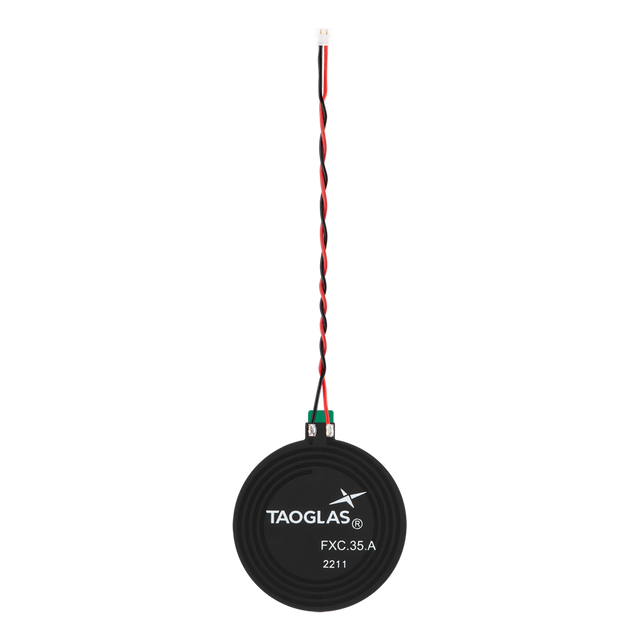

The FXC.35.52.0075X.A.DG is a compact, flexible Near Field Communications (NFC) antenna designed for 13.56MHz read/write operation. Its low-profile construction and adhesive backing support fast integration inside device enclosures, while the ferrite flux director helps isolate the antenna from nearby electronics such as internal batteries.
- Designed for 13.56MHz NFC: suitable for short-range two-way communication
- Flexible, low-profile format: integrates easily into space-constrained devices
- Ferrite flux director: helps reduce detuning and performance loss near conductive components
- Adhesive backing: enables quick peel-and-stick installation inside plastic housings
Typical use cases include: mobile devices, wearable smart devices, payment terminals, device tracking and ID systems, air cargo tracking, access control, and electronic keys.
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Flex PCB
Location: Internal
Mounting: Adhesive Mount
Type: Single
Length: 35 mm
Width: 35 mm
Height: 0.27 mm
Weight: 1 g
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG
