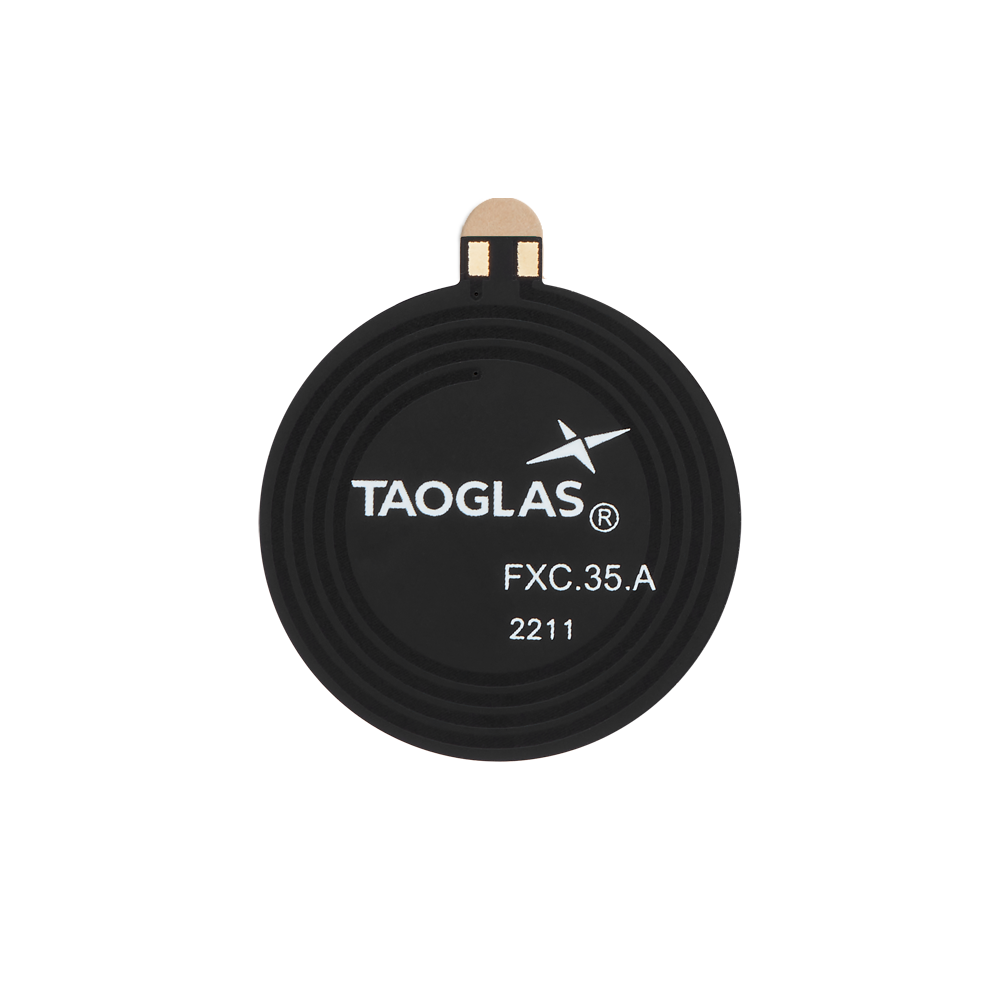

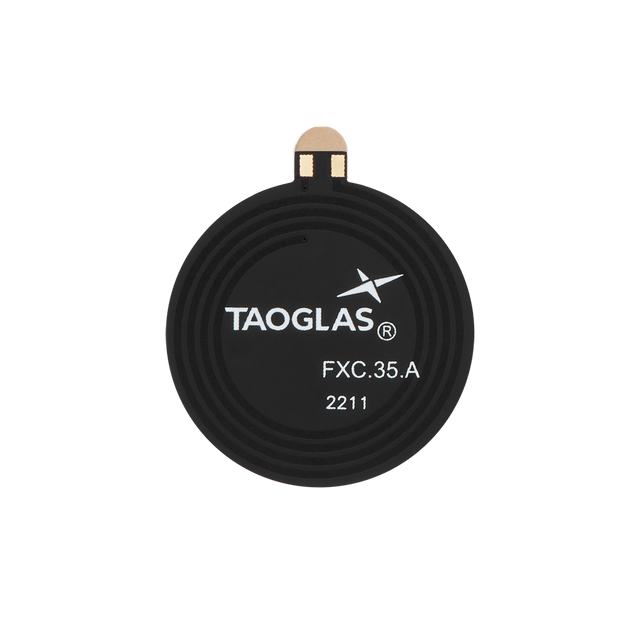

FXC.35.A Antenna Flexible NFC 13.56MHz adhesive flex PCB

This compact flexible NFC antenna is designed for two-way read/write operation at 13.56MHz and is supplied with an adhesive backing for quick integration into device housings.

• Flexible, low-profile format: suited to space-constrained embedded designs
• Adhesive backing: simplifies placement inside plastic enclosures or on internal components
• Variant options: versions are available with a ferrite layer to help isolate the antenna from nearby conductive components
• Customization support: custom shapes and impedance matching can be provided (NRE and MOQ may apply)

Typical applications

• Mobile devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56MHz
Impedance: 50Ω
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Dimensions: ⌀35*0.16 mm
Weight: 1 g
RoHS: Yes
