Description

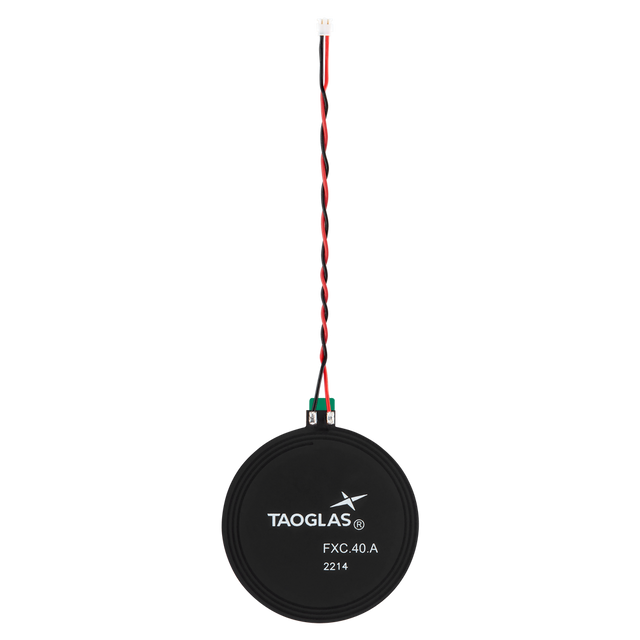

The FXC.40.52.0075X.A.DG is a flexible NFC (Near Field Communications) antenna designed for reliable two-way read/write operation. Its compact circular form factor supports easy integration inside plastic device enclosures, while the ferrite flux director helps isolate the antenna from batteries and nearby electronics for more consistent performance.
- Flexible, low-profile embedded format for space-constrained devices
- Ferrite flux director to help reduce detuning near conductive components
- Adhesive backing for quick internal placement
- Suitable for NFC/RFID-style interactions such as access and identification
Typical applications include:
- Mobile Devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access Control and Electronic Keys
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 13.56MHz
Impedance: 50Ω
Polarization: Linear
Dimensions: ⌀40*0.3 mm
Weight: 1 g
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
RoHS: Yes
