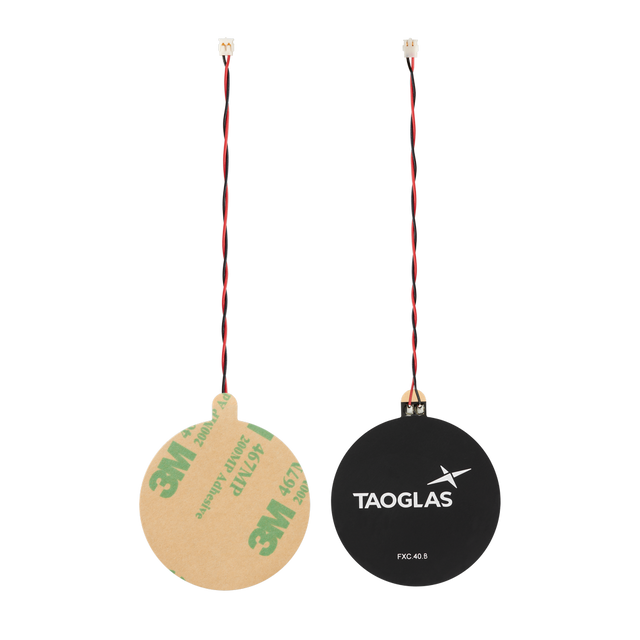

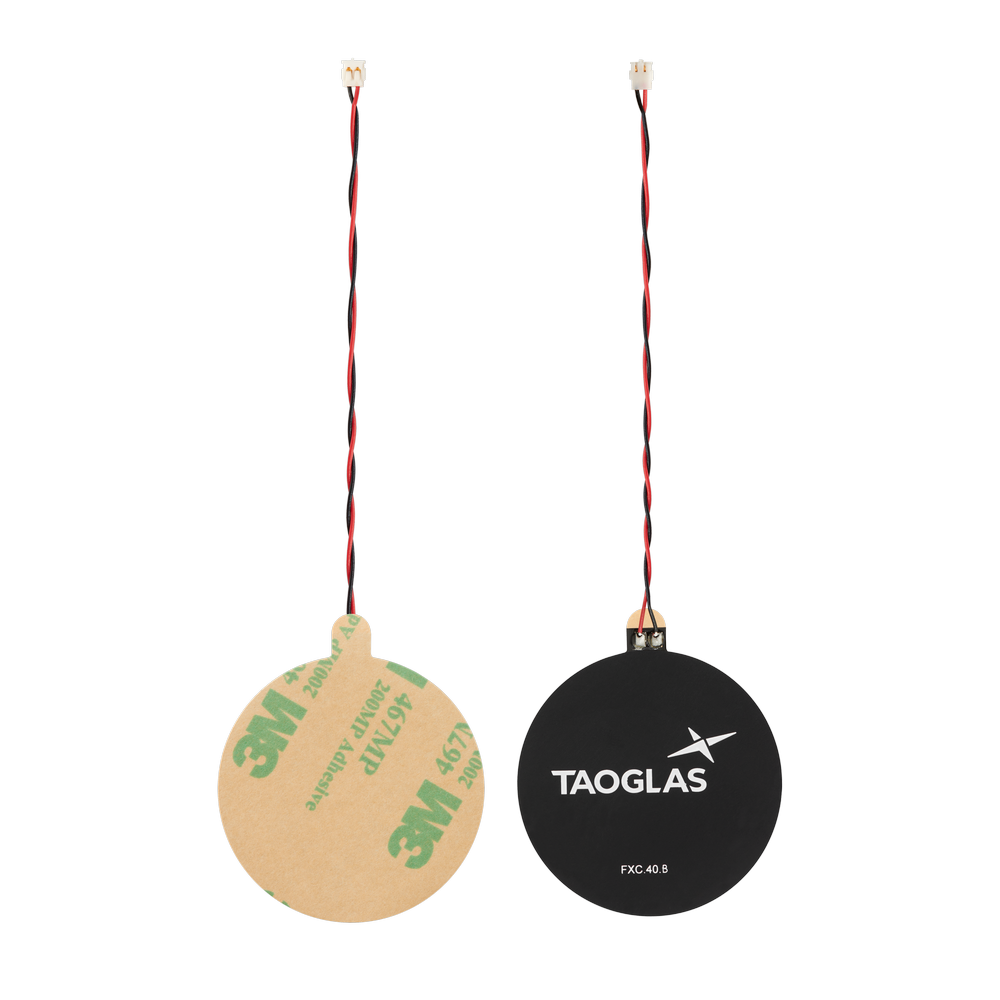

FXC.40.52.0075X.B.DG Antenna NFC flex adhesive ACH(F) 7.5cm

This flexible NFC antenna is designed for embedded integration in compact devices where reliable 13.56MHz near-field performance is required. A reverse ferrite layer helps provide isolation from nearby conductive components (such as internal batteries), supporting more consistent communication in challenging layouts.

• Flexible, low-profile embedded format suitable for integration inside plastic enclosures
• Reverse ferrite layer to help reduce detuning and performance loss near conductive surfaces
• Adhesive backing for fast peel-and-stick installation
• Designed for NFC/RFID use cases such as payments, access control, and device identification

Typical applications include:

• Mobile Devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG (PVC)

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Impedance: 50Ω
Dimensions: ⌀40*0.3 mm
Weight: 13.2g
Humidity: Non-condensing 65°C 95% RH
RoHS Compliant: Yes

NFC

Frequency: 13.56 MHz
Polarization: Linear
La: 1.08 µH
Rs: 1.65 ohm
Q Factor: 53.96
Self-Resonance Frequency: 418 MHz
Rp: 27.58 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
