Description

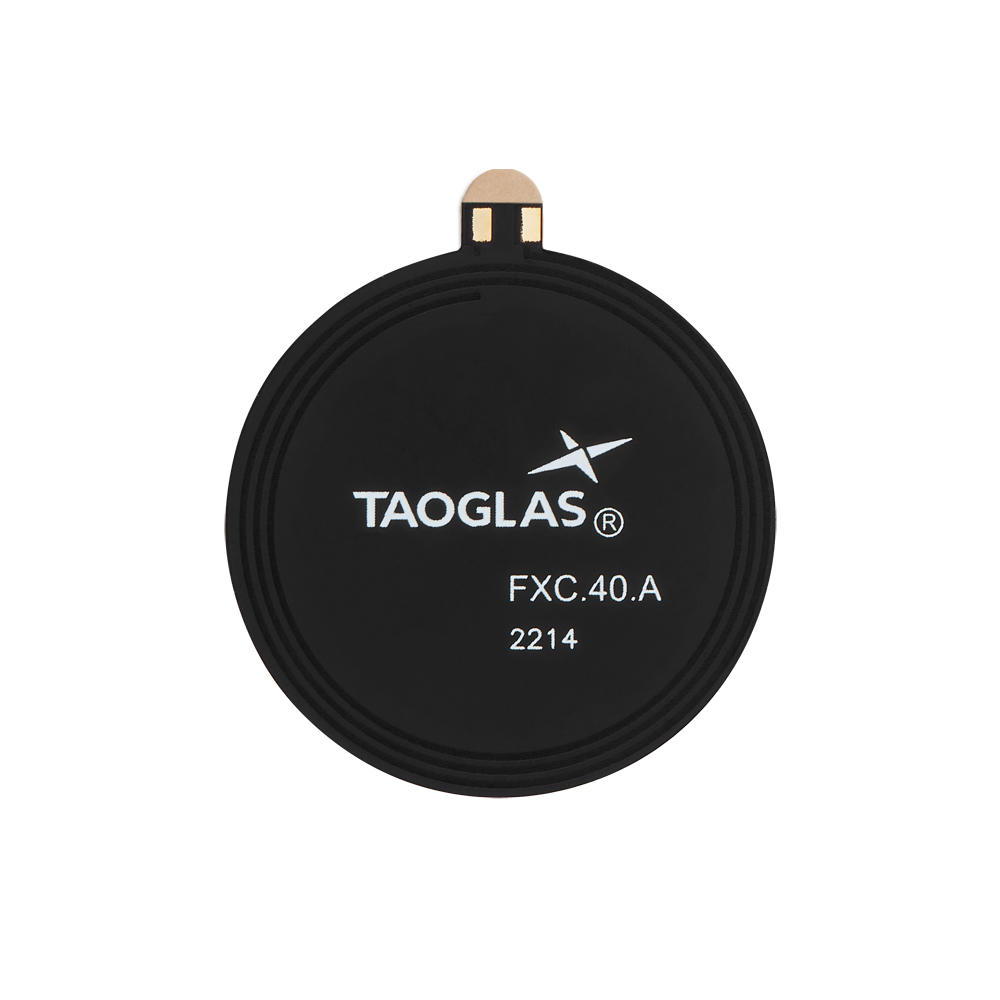

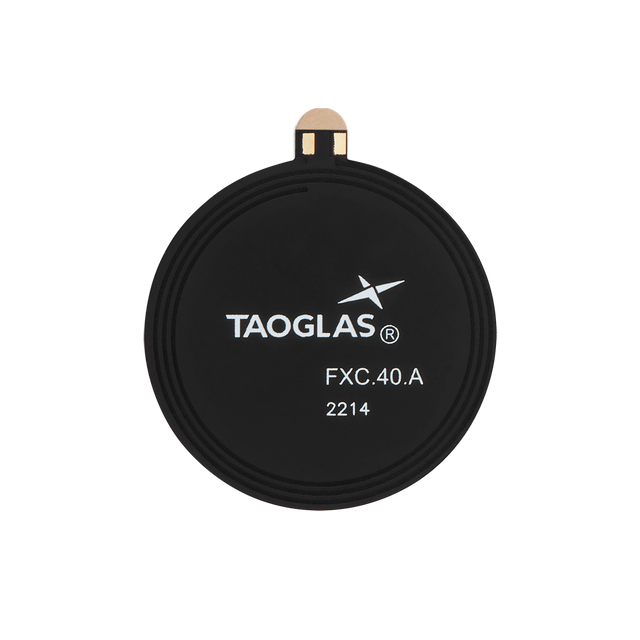

This compact, flexible Near Field Communications (NFC) antenna is designed for reliable two-way read/write operation at 13.56MHz. Its low-profile form factor and adhesive backing make it well-suited for embedding inside plastic device enclosures or mounting on internal components such as batteries.
For designs where the antenna is placed close to conductive surfaces (such as a battery), variants with ferrite flux directors are available to help isolate the antenna from nearby electronics. Gold-plated contact pads support straightforward integration using pogo pins or spring-clip style contacts (for example, CC.001).
Typical applications
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Customized versions for specific applications, shapes, and impedance matching can be provided (NRE and MOQ may apply).
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Technology: Embedded Antennas, NFC
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Frequency Range: 13.56MHz
Impedance: 50Ω
Connector Type: Contact pads (no cable)
Cable Length: None
Length: 40 mm
Width: 40 mm
Height: 0.14 mm
Weight: 1 g
Adhesive: 3M467 or 3M9460
RoHS: Yes
