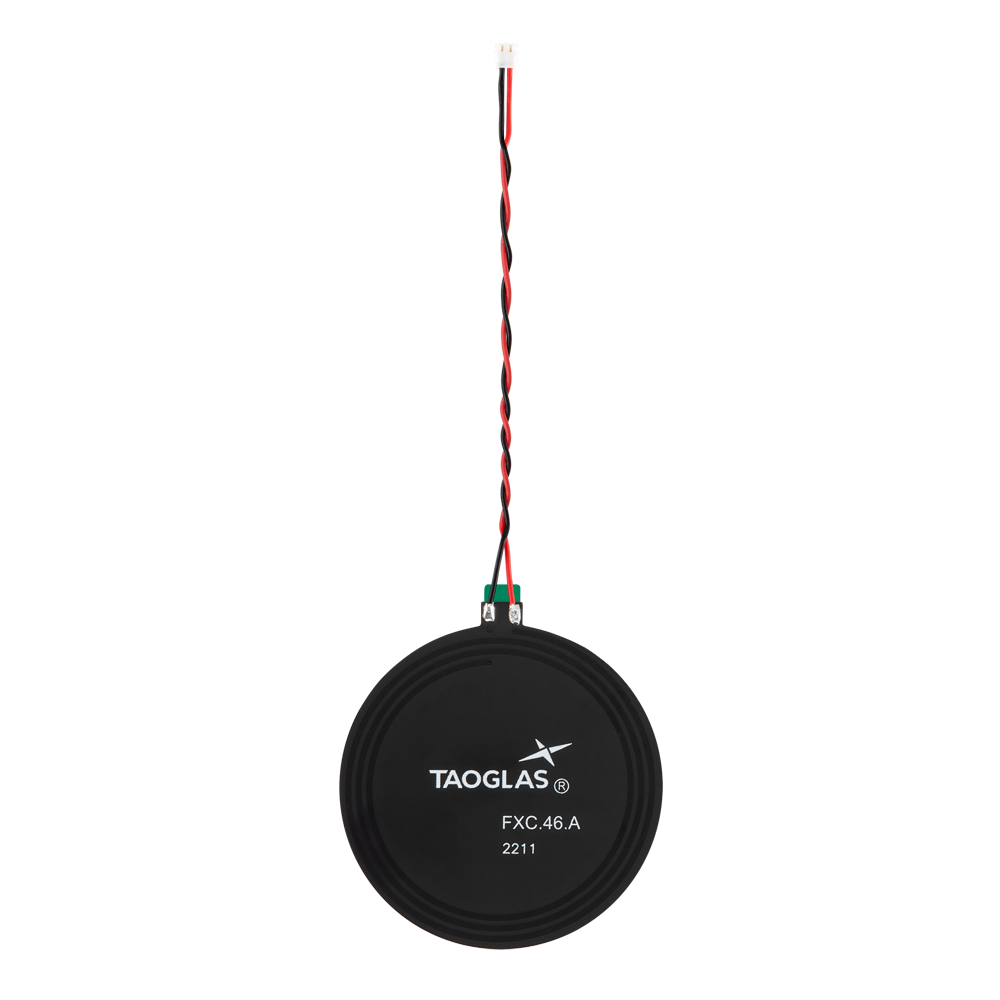

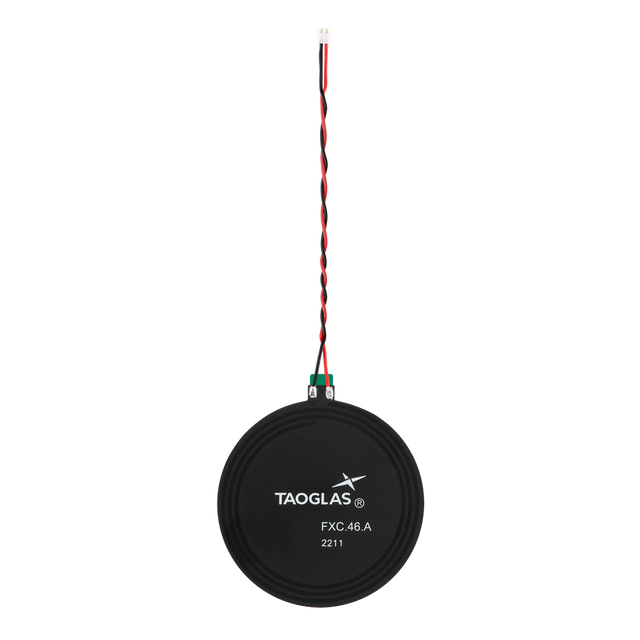

FXC.46.52.0075X.A.DG Antenna Flexible NFC adhesive flex ACH(F) 7.5cm twisted pair 28AWG for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible NFC (Near Field Communications) antenna is designed for two-way read/write operation at 13.56MHz in compact embedded device designs. Its low-profile circular form factor makes it well-suited for integration inside plastic enclosures where space is limited.

The integrated ferrite flux director helps provide isolation from nearby components such as internal batteries, supporting more consistent performance when installed in challenging device layouts. An adhesive backing enables quick placement during assembly.

• Designed for: embedded NFC read/write at 13.56MHz
• Easy integration: flexible, low-profile construction with adhesive backing
• Improved isolation: ferrite flux director for use near batteries and electronics
• Typical use cases: mobile devices, wearable smart devices, payment terminals, device tracking and ID systems, air cargo tracking, access control and electronic keys

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: ⌀46*0.3 mm
Weight: 1 g

NFC

Frequency: 13.56 MHz
Impedance: 50 Ω
Polarization: Linear
La: 1.09 µH
Rs: 1.6 ohm
Q Factor: 58
Self-Resonance Frequency: 72.4 MHz
Rp: 3.42 kohm
Mechanical Style: Flex PCB with Ferrite
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
