Description

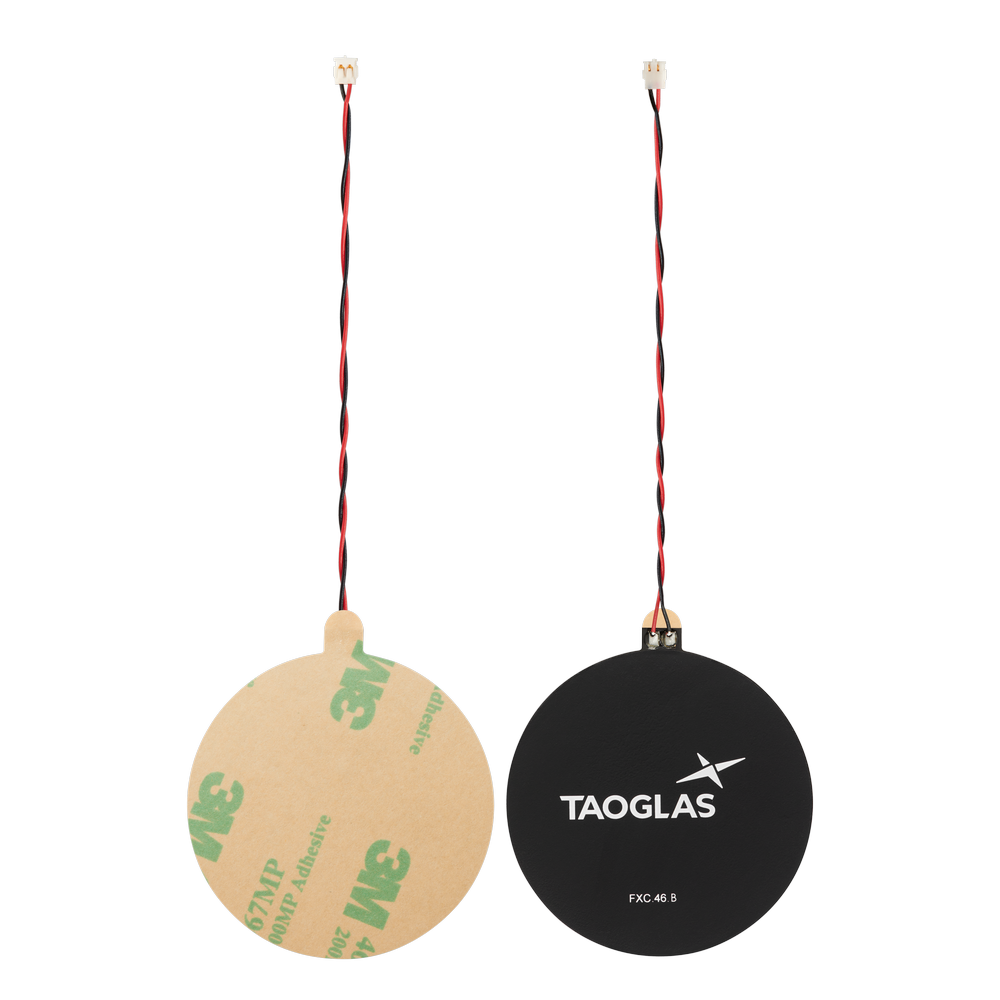

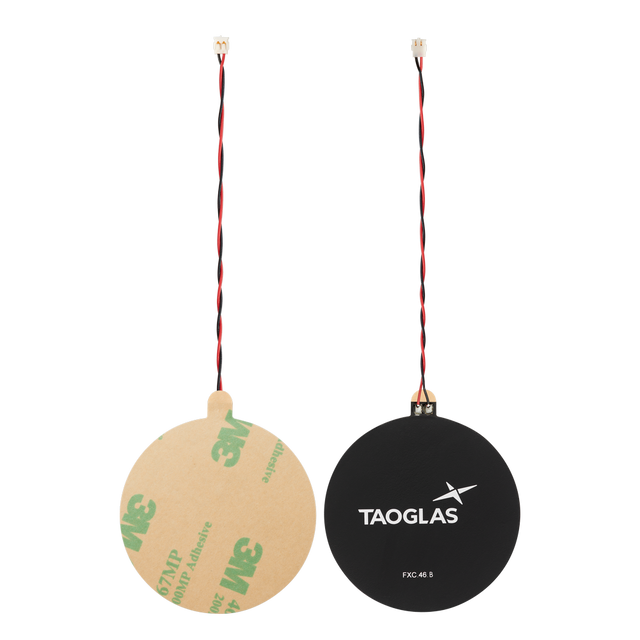

This flexible, low-profile embedded NFC antenna is designed for quick integration into compact devices. An upward-facing reverse ferrite flux director helps isolate the antenna from nearby conductive components (such as internal batteries) to support more consistent NFC performance.
- Flexible embedded format: fits inside plastic enclosures and space-constrained products
- Reverse ferrite layer: helps reduce detuning and loss when installed near conductive surfaces
- Adhesive backing: peel-and-stick mounting for fast assembly
- Designed for NFC systems: suitable for contactless interactions and identification use cases
Typical applications include:
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
Mechanical Style: Flex PCB with Ferrite
Dimensions: ⌀46*0.3 mm
Weight: 15 g
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
RoHS: Yes
