Description

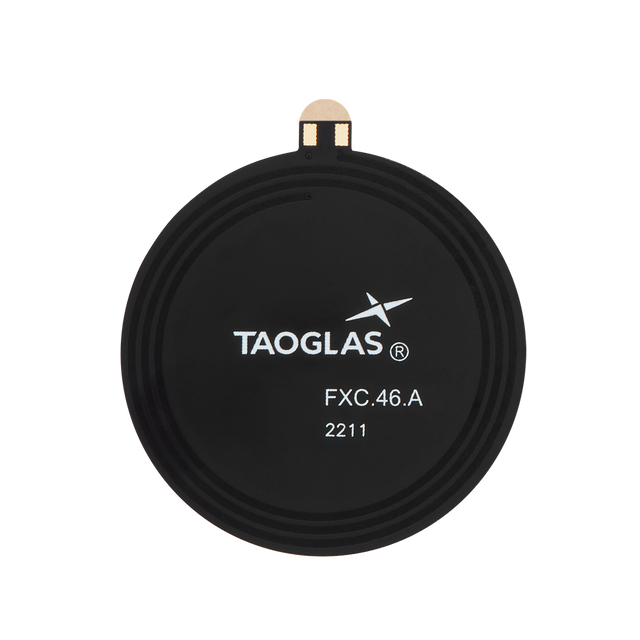

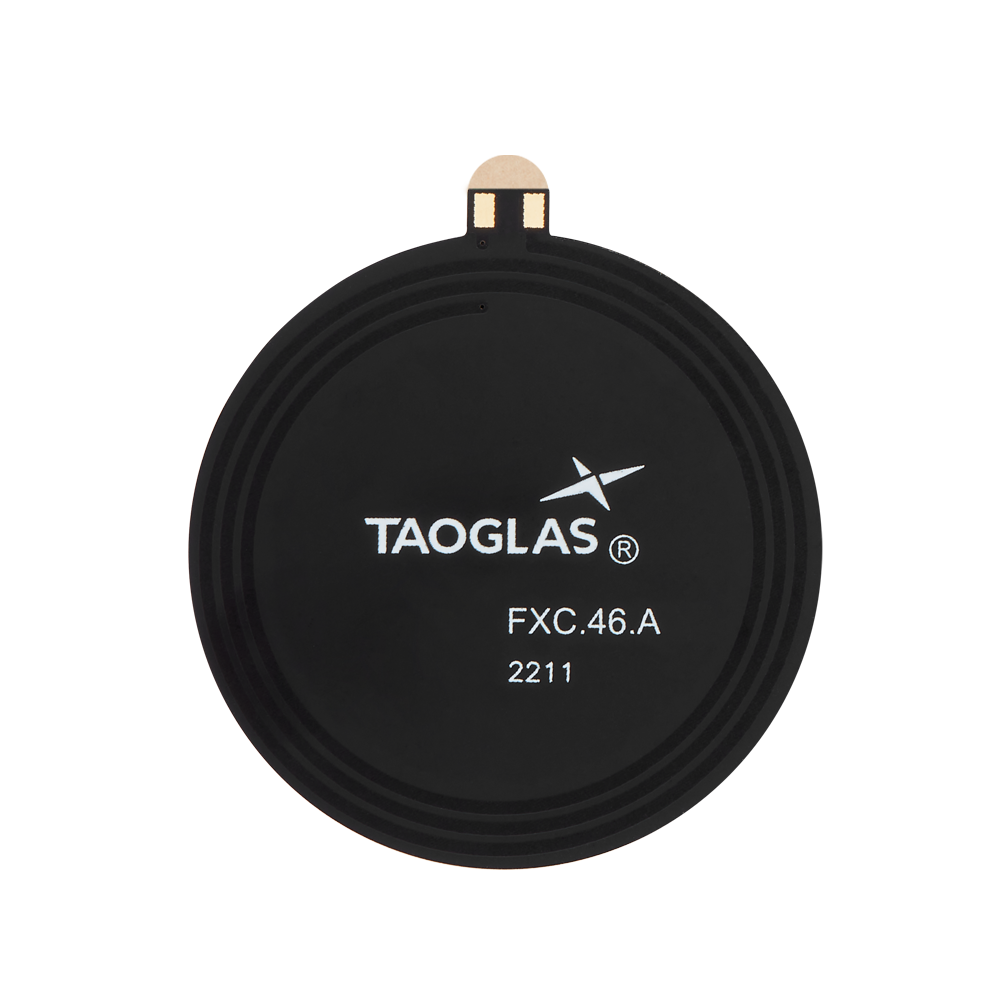

The FXC.46.A is a compact, flexible NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. Its peel-and-stick adhesive backing supports fast integration into space-constrained devices and can be mounted inside a plastic enclosure or on an internal battery. Variants with ferrite flux directors are available to help provide isolation when mounting near conductive components, and plated contact pads support connection using pogo pins or spring-clip interfaces such as CC.001.
Typical applications
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Customized antenna solutions for specific applications, shapes, and impedance matching may be available (NRE and MOQ may apply). Contact your regional sales office for details.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56 MHz
Impedance: 50 Ω
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Connector: Contact pads (no cable)
Adhesive: 3M467 or 3M9460
Dimensions: ⌀46*0.16 mm
Weight: 1 g
RoHS: Yes
