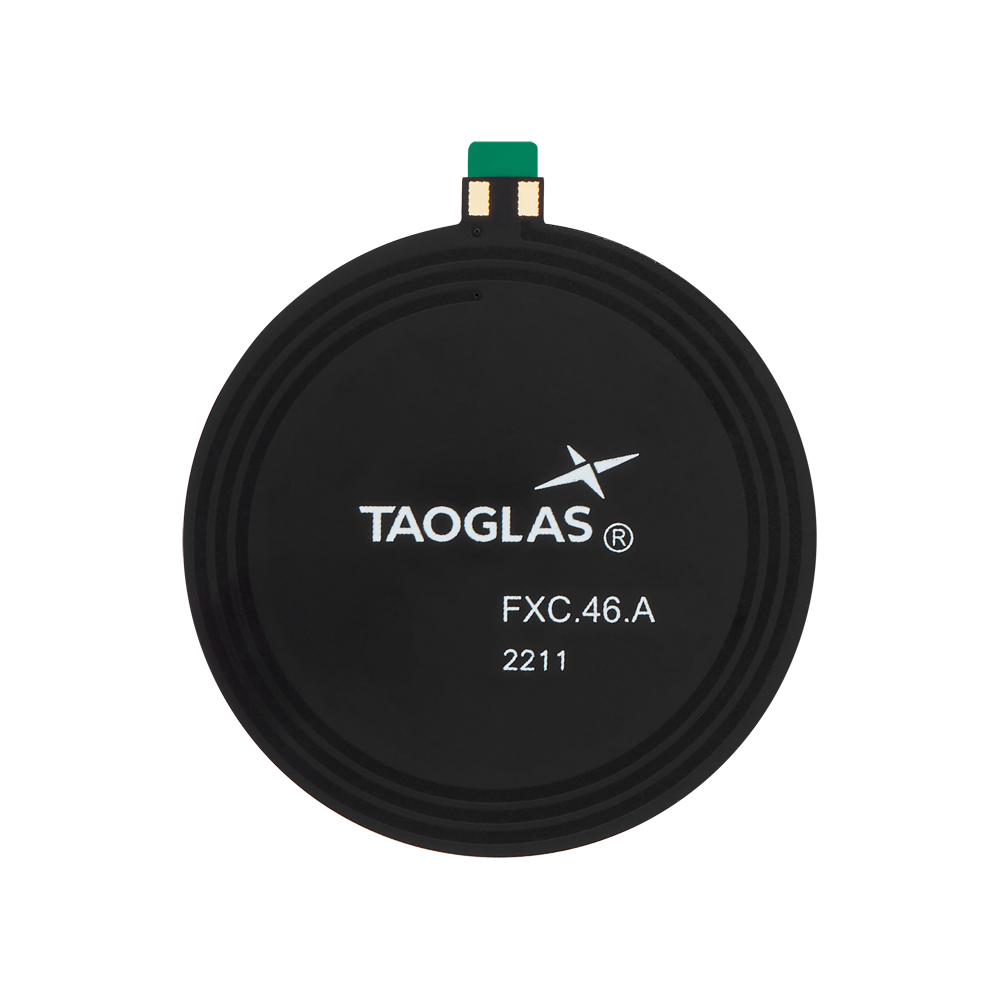

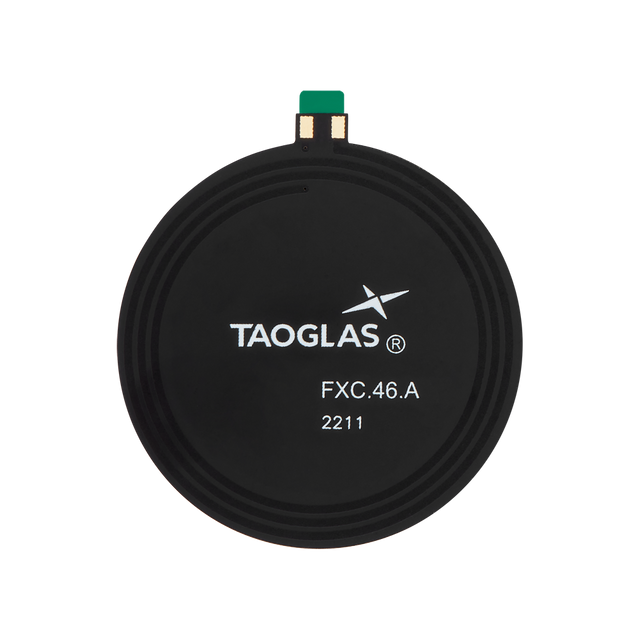

FXC.46.A.DG Antenna Embedded NFC flex adhesive for Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible embedded NFC antenna is designed for reliable two-way read/write operation at 13.56MHz in compact devices. Its ferrite flux director helps isolate the antenna from nearby electronics (such as batteries), while the adhesive backing supports quick internal placement inside a plastic enclosure.

• Flexible, low-profile form factor for space-constrained product designs
• Ferrite-backed construction to reduce detuning and performance loss near conductive components
• Adhesive backing for fast integration into device housings

Typical NFC applications include:

• Mobile Devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access control

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56MHz
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
Termination Style: SMD/SMT
Adhesive: 3M467 or 3M9460
Dimensions: ⌀46*0.3 mm
Weight: 1 g
RoHS: Yes
