Description

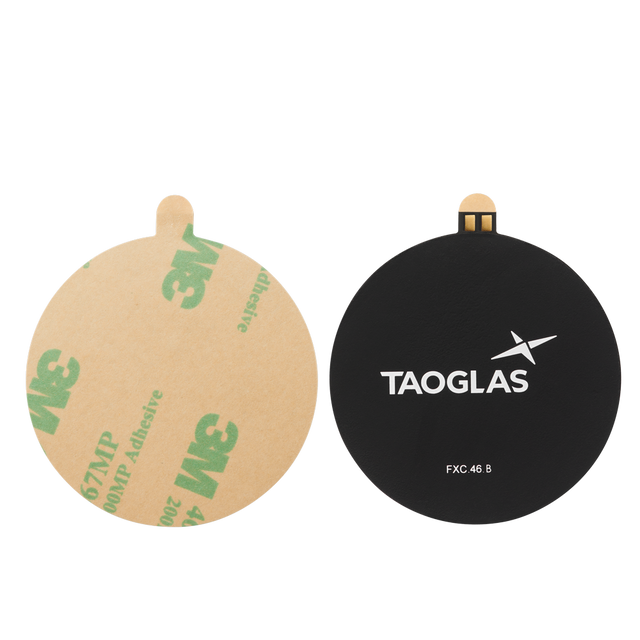

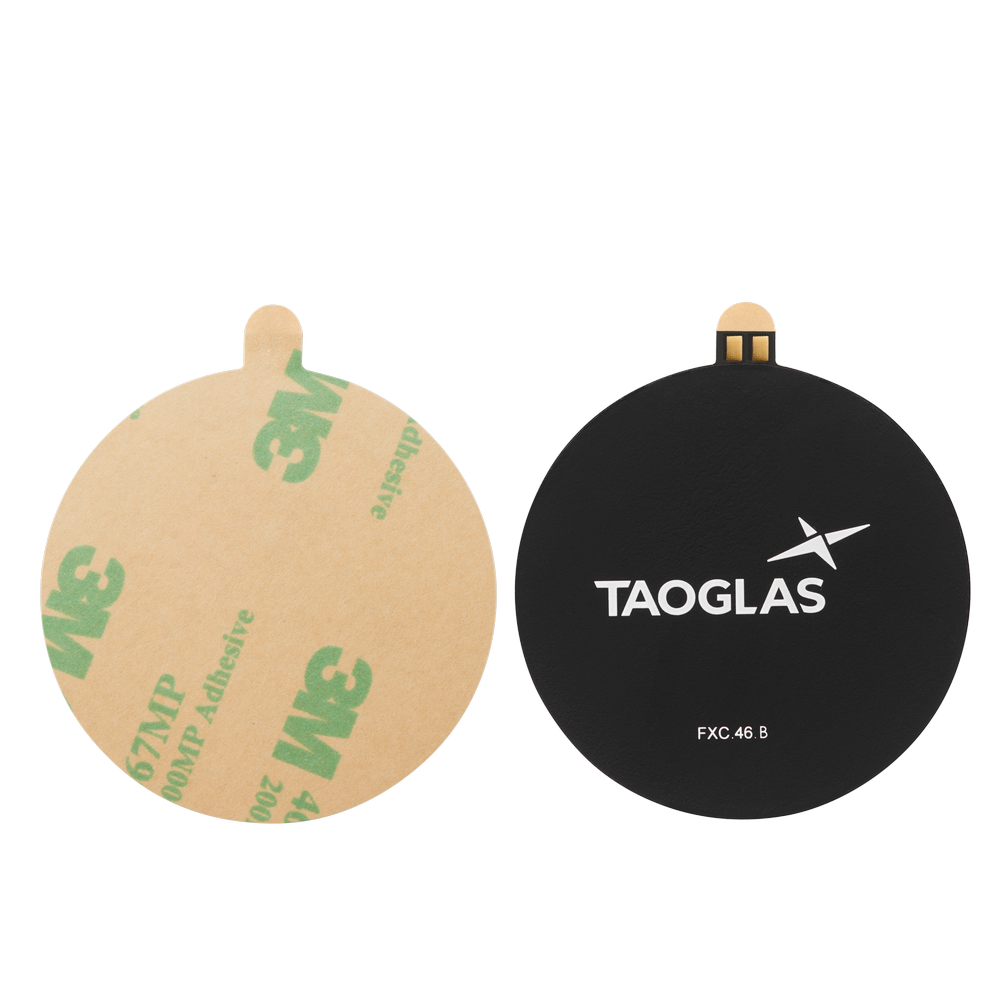

This flexible NFC antenna is designed for compact, embedded device integration at 13.56MHz. The reverse ferrite layer helps isolate the antenna from nearby conductive components (such as batteries), supporting more reliable near-field performance in challenging internal layouts.
- Flexible, low-profile format suited to space-constrained enclosures
- Reverse ferrite layer to reduce losses when mounted near conductive surfaces
- Adhesive backing for fast internal placement and secure attachment
- Well-suited for embedded NFC/RFID use cases including payment and access systems
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Short-Range Wireless Standards: NFC
Type: Single
Mechanical Style: Flex PCB with Ferrite
Dimensions: ⌀46*0.3 mm
Weight: 13.2 g
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
La: 1.02 µH
Rs: 1.58 ohm
Q Factor: 54.58
Self-Resonance Frequency: 445 MHz
Rp: 76.52 kohm
Connector Type: Contact pads (no cable)
Cable Length: None
