FXM100.07.0060C Antenna Router Wi-Fi 6E/7, ISM flex PCB adhesive AntJack I-PEX MHF I (U.FL Compatible) 6cm for Modems and Routers, Industrial Gateways, Factory Automation, Industrial Process Control

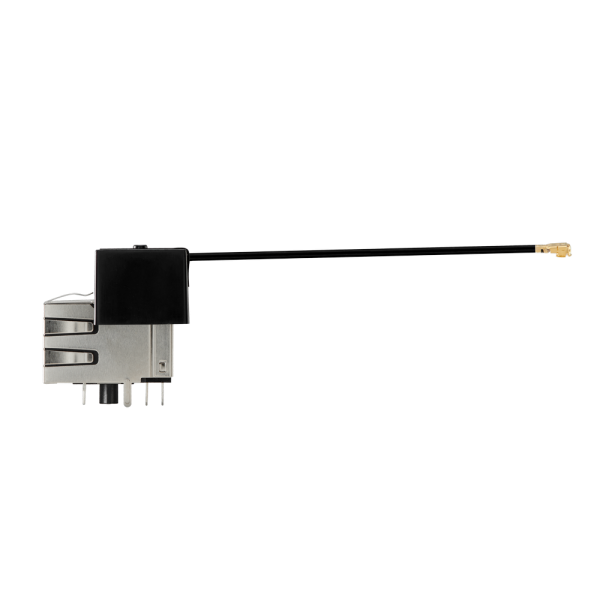

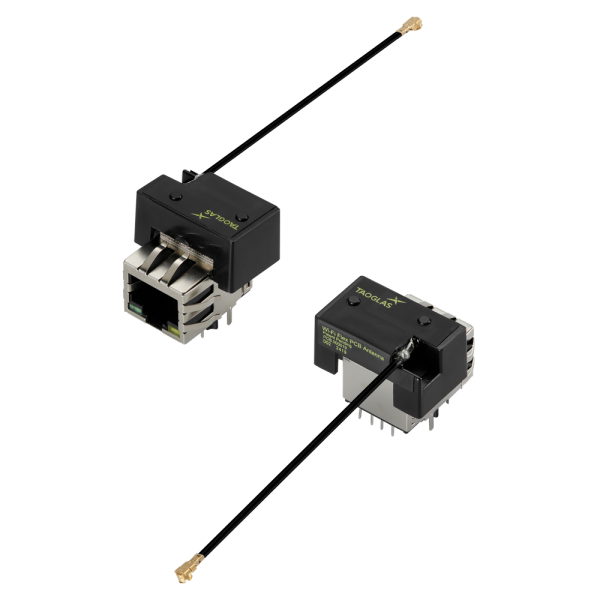

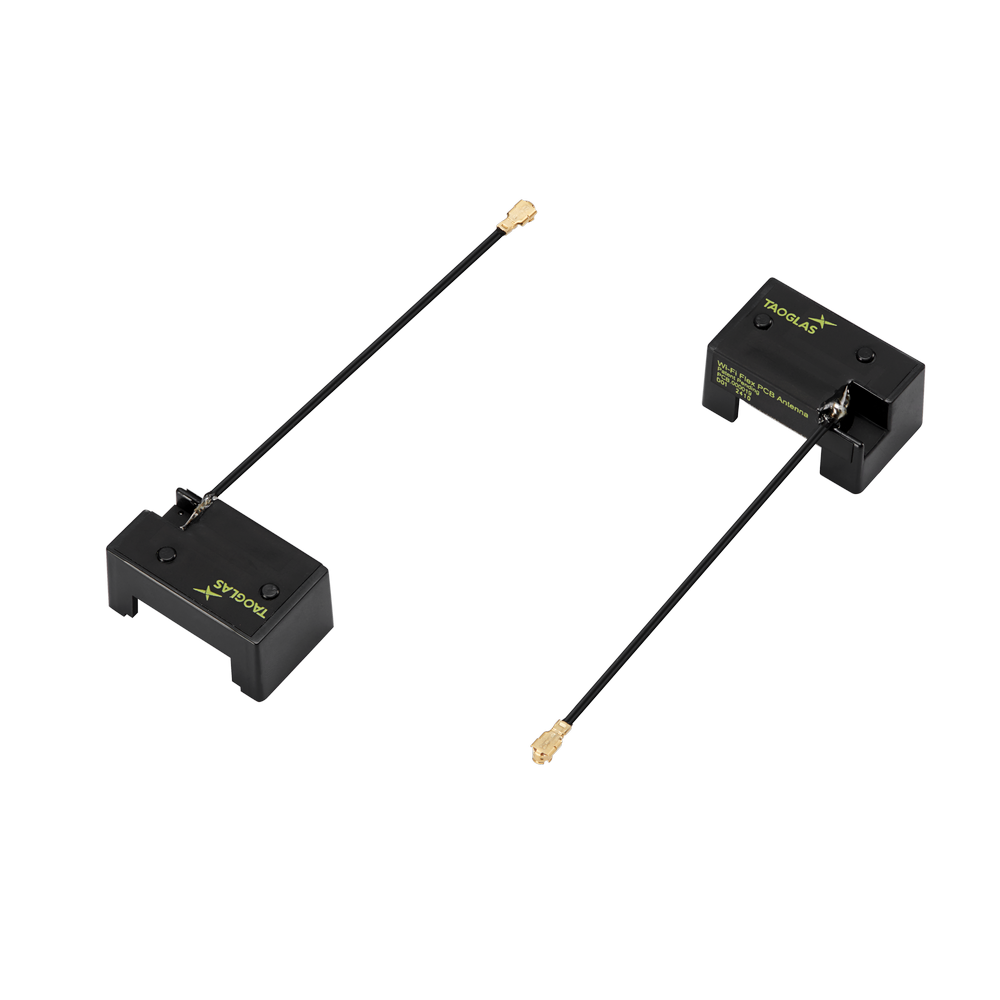

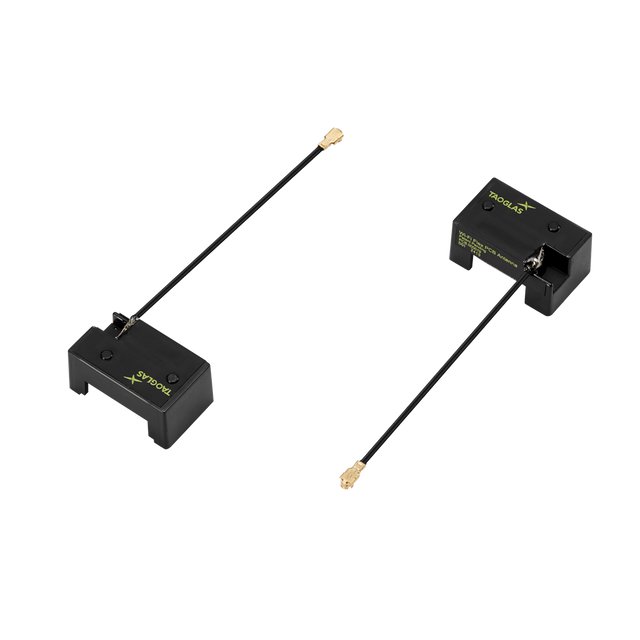

AntJack is a compact, patent-pending flex PCB dipole antenna supplied on a lightweight plastic carrier designed for mounting on an RJ45 jack inside a device. This space-saving approach helps preserve valuable board area while maintaining strong, omnidirectional performance across 2.4 GHz, 5.8 GHz, and 7.1 GHz bands, supporting Wi-Fi 6 / 6E / 7 and Bluetooth use cases.

• Flex PCB antenna on plastic carrier for RJ45 jack mounting
• Covers 2.4 GHz / 5.8 GHz / 7.1 GHz bands (including Wi-Fi 6 / 6E and Wi-Fi 7)
• High-efficiency, omnidirectional dipole performance in a small form factor
• Suitable for compact IoT and embedded connectivity designs

Typical applications include:

• Modems and Routers
• Industrial Gateways
• Factory Automation
• Industrial Process Control
• Industrial Robotics
• Test and Measurement Systems

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL Compatible)
• Cable Length: 6cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 26.65 x 15.65 x 13.1mm
Weight: 2g
Impedance: 50Ω
VSWR: 2:1
Material: Flexible Polymer

Wi-Fi / Bluetooth

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: Wi-Fi 6 / 6E / 7, Bluetooth
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 2W
Efficiency (%): 51.9 (2400-2500), 45.6 (5150-5850), 48.3 (5925-7125)
Average Gain (dB): -2.8 (2400-2500), -3.4 (5150-5850), -3.1 (5925-7125)
Peak Gain (dBi): 2.1 (2400-2500), 4.5 (5150-5850), 5.0 (5925-7125)
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 6cm
Cable Type: 1.37 Coax
