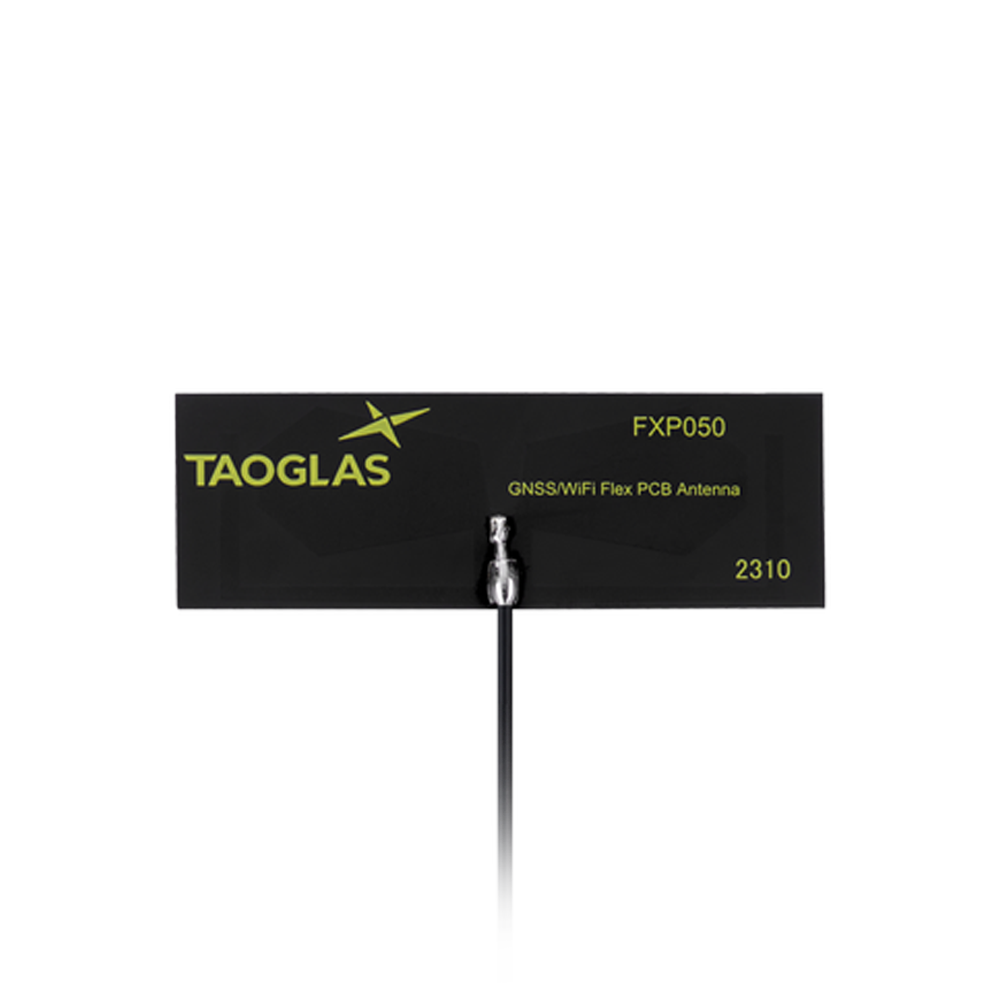

FXP050.07.0100C Antenna Router GNSS, Wi-Fi 6E/7 flex PCB adhesive I-PEX MHF I 10cm for Asset Tracking Systems, Smart Home Devices, Telemedicine devices, Gaming devices

This embedded flexible PCB antenna integrates GNSS (L1 band) and extended Wi-Fi coverage into a compact, easy-to-place format for space-constrained devices. It is designed to help product designers add reliable positioning and modern Wi-Fi connectivity while maintaining strong RF performance in narrow internal enclosures.

Ideal for compact electronics that require both location and Wi-Fi connectivity, including routers, gateways, set-top boxes, and other connected devices.

• Integrated functionality: combines GNSS and Wi-Fi on a single feed
• Wide Wi-Fi coverage: supports 2.4 GHz plus extended 5–7.125 GHz bands
• Space-saving form factor: flexible PCB construction for internal installation

Typical Applications Include:

• Asset Tracking Systems
• Smart Home Devices
• Telemedicine devices
• Gaming devices
• Navigation Devices

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL Compatible)
• Cable Length: 10cm
• Cable Type: Ø1.37mm coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
Mechanical Style: Flex PCB
Impedance: 50Ω
Polarization: Linear
VSWR: 1.5
Length (mm): 53
Width (mm): 18
Height (mm): 0.2
Frequency Range: 1565MHz - 7125MHz

GNSS & Wi-Fi (Single Feed)

Frequency: GNSS: 1559-1610 MHz
Wi-Fi: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: GNSS L1 (L1 [1575.42 MHz], G1/L1OC [1600.995 MHz], B1I [1561 MHz]); Wi-Fi 2.4/5/6 GHz (Wi-Fi 6 bands included)
Radiation Pattern: Omni
Max. Input Power: 2W
Efficiency (%): L1: 75.6; G1/L1OC: 66.8; B1I: 75.7; WiFi-2GHz: 83.3; WiFi-5GHz: 74.3; WiFi-6GHz: 70.4
Average Gain (dB): L1: -1.22; G1/L1OC: -1.75; B1I: -1.21; WiFi-2GHz: -0.79; WiFi-5GHz: -1.29; WiFi-6GHz: -1.52
Peak Gain (dBi): L1: 2.14; G1/L1OC: 1.65; B1I: 2.11; WiFi-2GHz: 3.62; WiFi-5GHz: 5.80; WiFi-6GHz: 6.57
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 10cm
Cable Type: Ø1.37mm coax
