Description

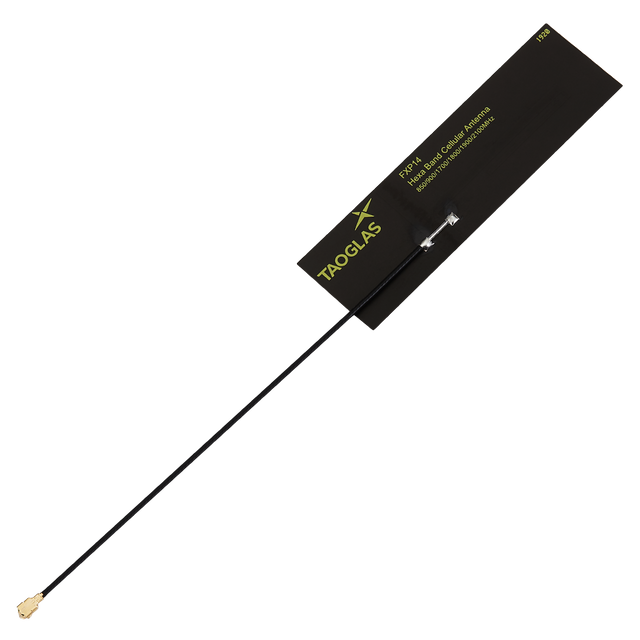

This flexible wideband cellular antenna is designed for embedded devices that need reliable 5G/4G coverage where space is limited. Its thin, rectangular flex-PCB format supports straightforward integration onto plastic housings and other non-metal surfaces.
- Flexible, low-profile form factor for compact product designs
- Peel-and-stick mounting using automotive-grade adhesive for fast assembly
- Wideband cellular coverage intended for worldwide 5G/4G deployments
- Designed to work on different plastic materials and thickness
Typical use cases: Security, Remote Monitoring, Connected Health
Connector & Cable
- Connector Type: I-PEX MHF I HT
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Type: Single
Dimensions: 70 x 20 x 0.2mm
Weight: 1.5g
5G/4G Cellular
Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50Ω
Polarization: Linear
VSWR: <2:1
Gain (Max): 2.5
Radiation Pattern: Omni
Max Input Power: 5W
Connector Type: I-PEX MHF I HT
Cable Length: 10cm
Cable Type: 1.13 Coax
