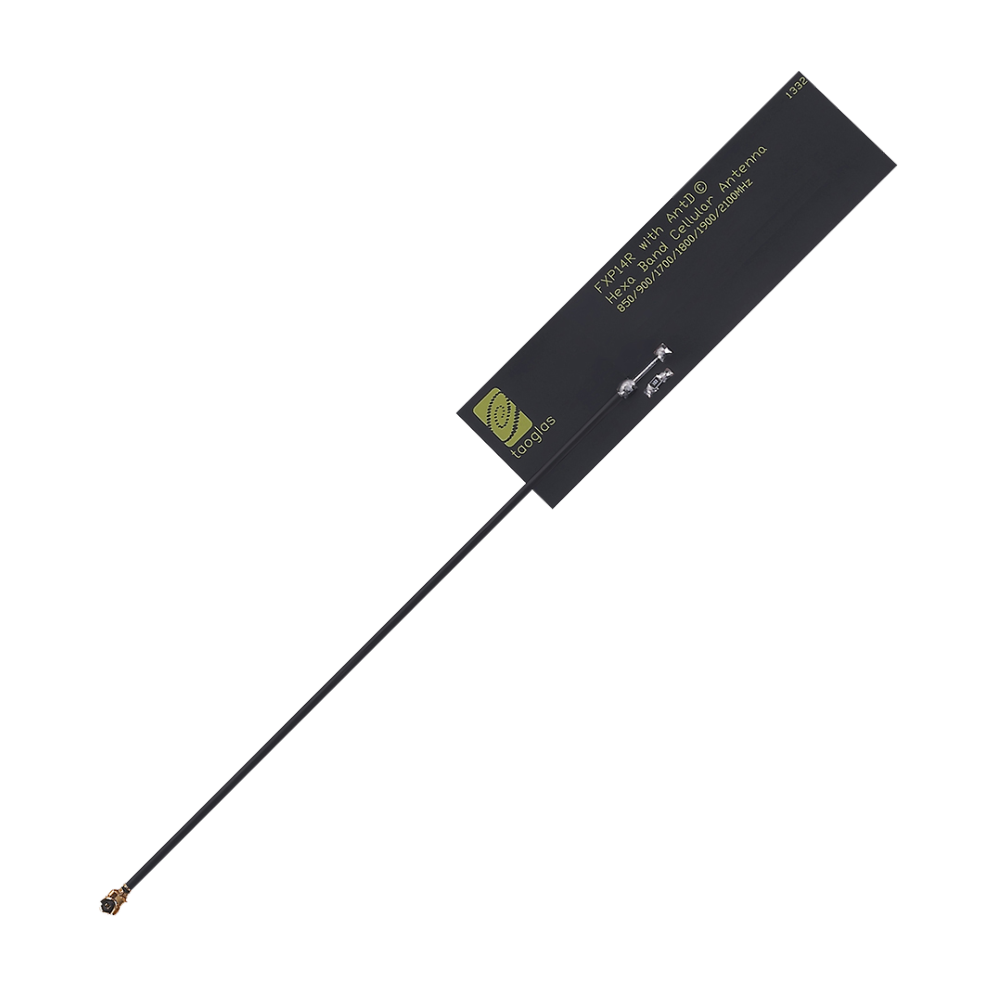

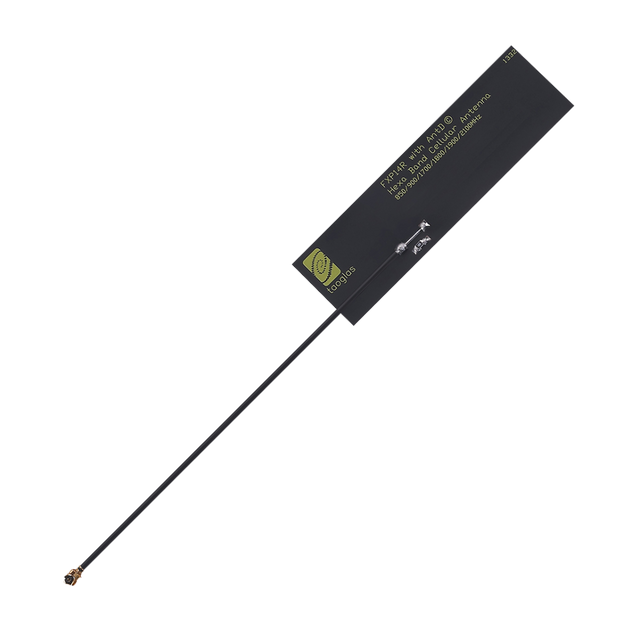

Description
This flexible cellular antenna uses a thin flex-PCB construction with peel-and-stick mounting to simplify integration into compact devices. It includes an integrated AntD© diagnostic shunt resistor to support antenna diagnostics and verification in connected products.
- Flexible flex-PCB form factor: designed for space-constrained enclosures
- Adhesive mounting: quick placement without mechanical fasteners
- Integrated diagnostic resistor: supports antenna detection/diagnostics in compatible radio designs
- Designed for device integration: suited to plastic housings and varied material thicknesses
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Installation / Environmental

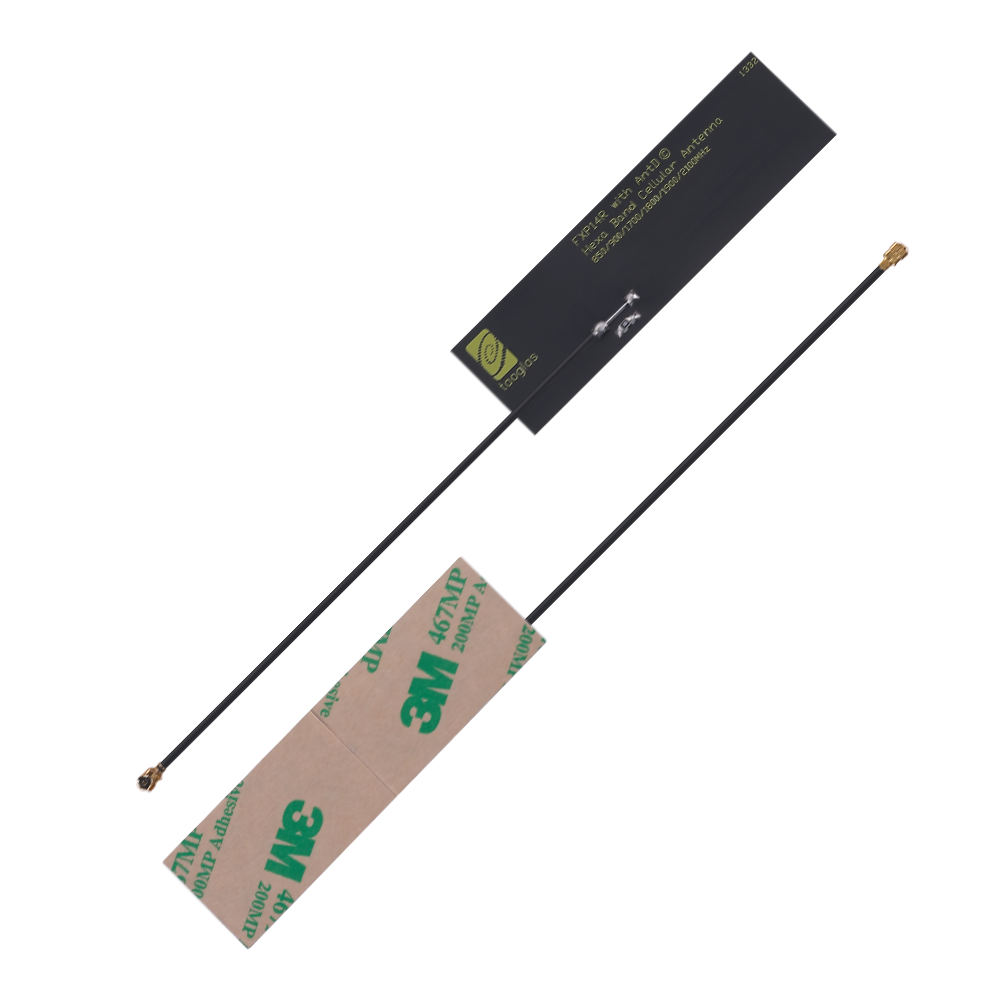

The antenna is mounted via automotive quality 3M 467MP adhesive and has excellent reliability. Cable length and connector types are also customizable. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive
Type: Single
Mechanical Style: Flex PCB
Dimensions: 70*20*0.1mm
Weight: 0.1g
Cellular
Frequency: 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000 MHz
Standards: 5GNR/4G/3G/2G, NB-IoT, Cat-M, GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSPA/GPRS/EDGE
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
VSWR: 2:1
Gain (Max): 2.5
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 10cm
Cable Type: 1.13 Coax
