Description

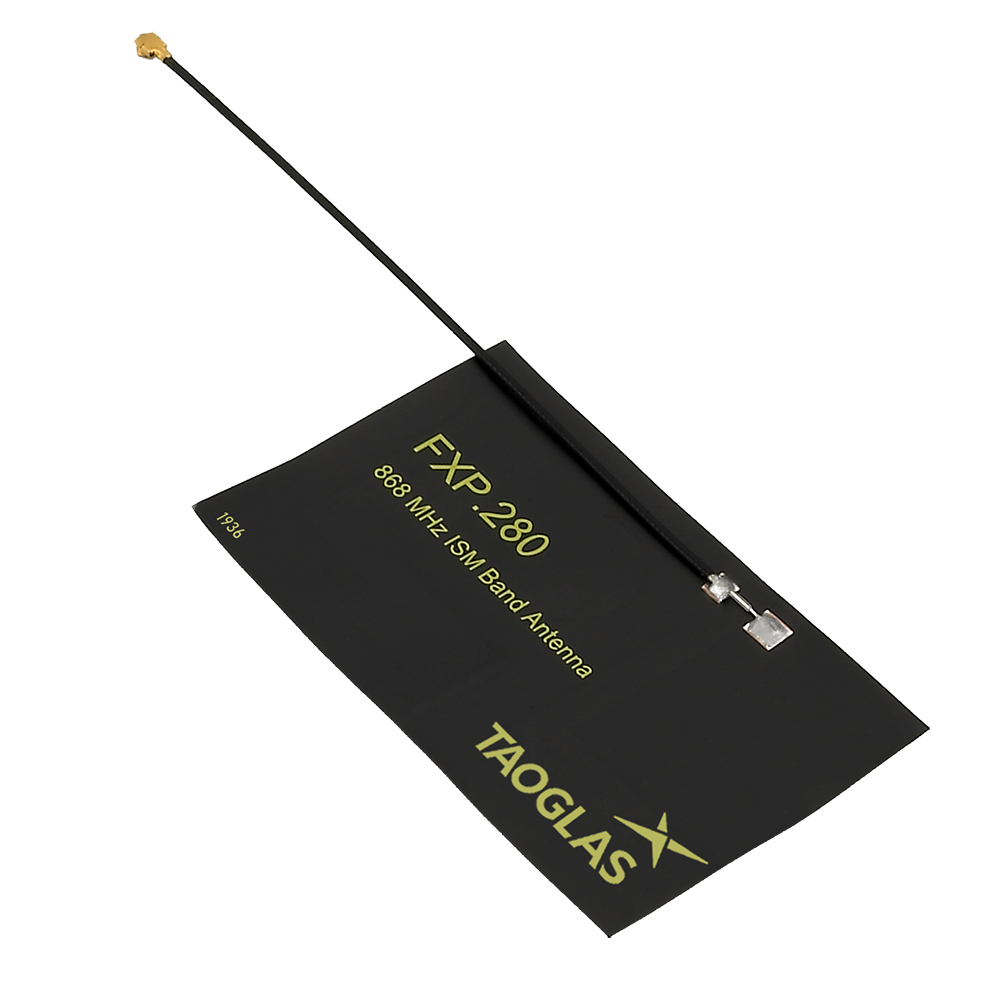

This flexible PCB antenna is designed for 868MHz ISM-band LPWAN devices and is ideal where space is limited inside compact enclosures. Its flexible construction and adhesive backing make integration straightforward across a wide range of product housings.
- Built for 868MHz LPWAN devices: suited to LoRa and SigFox deployments in the EU 868MHz band.
- Flexible, low-profile format: helps fit challenging internal packaging constraints.
- Easy integration: adhesive mounting supports quick placement on many internal surfaces.
- Customizable feed options: cable and connector configurations can be customized on request.
Typical applications include: Medical Devices, Smart Monitoring, Smart Home.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 10cm
- Cable Type: Mini-Coax 1.13 mm
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Adhesive Mount
Type: Single
Dimensions: 75*45*0.1mm
Weight: 1.5g
ISM / LoRa / SigFox (868MHz)
Frequency: 863MHz - 870MHz
Impedance (Ohm): 50
VSWR: <=2:1
Polarization: Linear
Gain (Max): 1.5 dBi
Efficiency (%): 52
Return Loss (dB): -16
Max Power Input: 5W
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 10cm
Cable Type: 1.13 Coax
Adhesive: 3M 467
