Description

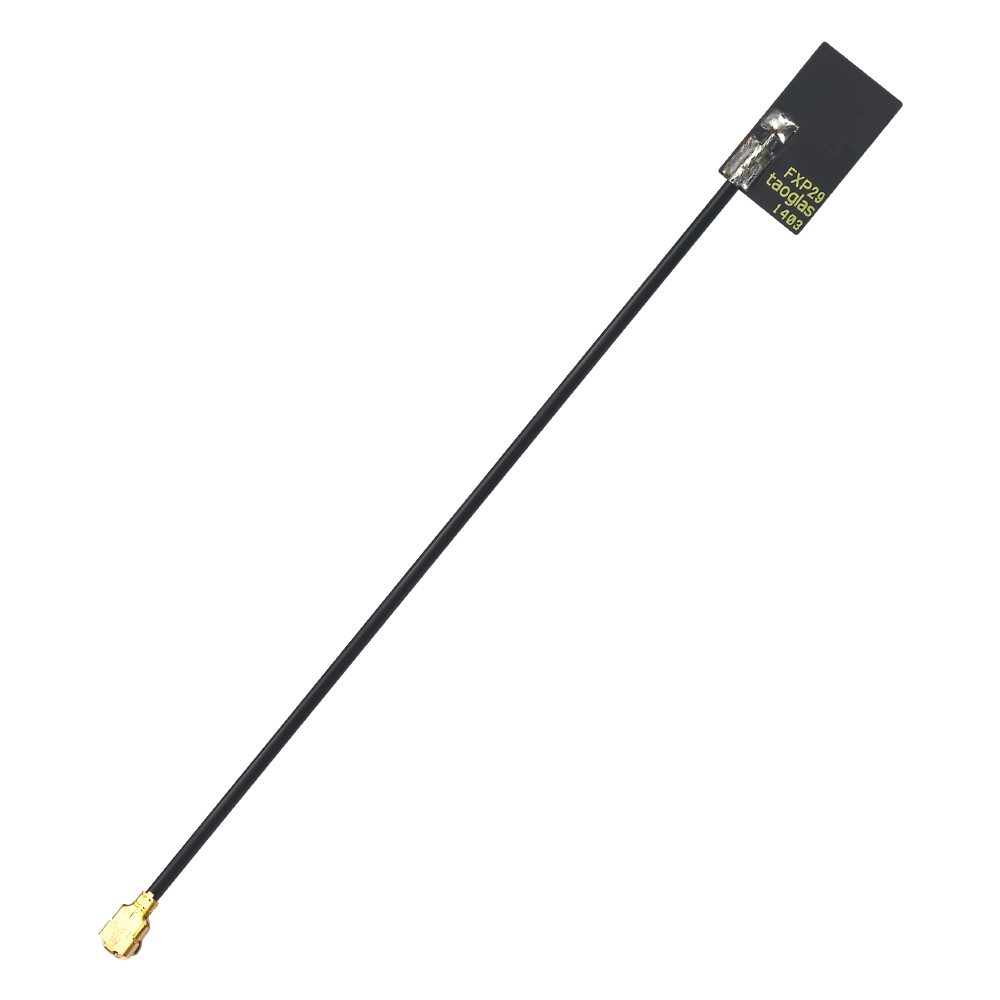

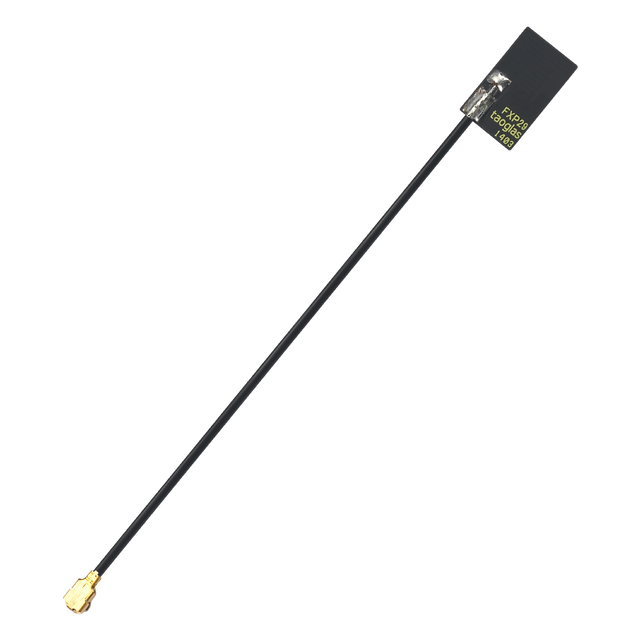

This ultra-compact flexible PCB antenna is designed for 3G UMTS/HSPA+ operation in the 2100MHz band, making it a strong choice for space-constrained embedded devices that require reliable cellular connectivity.
- Low-profile flexible construction: Fits easily inside compact housings.

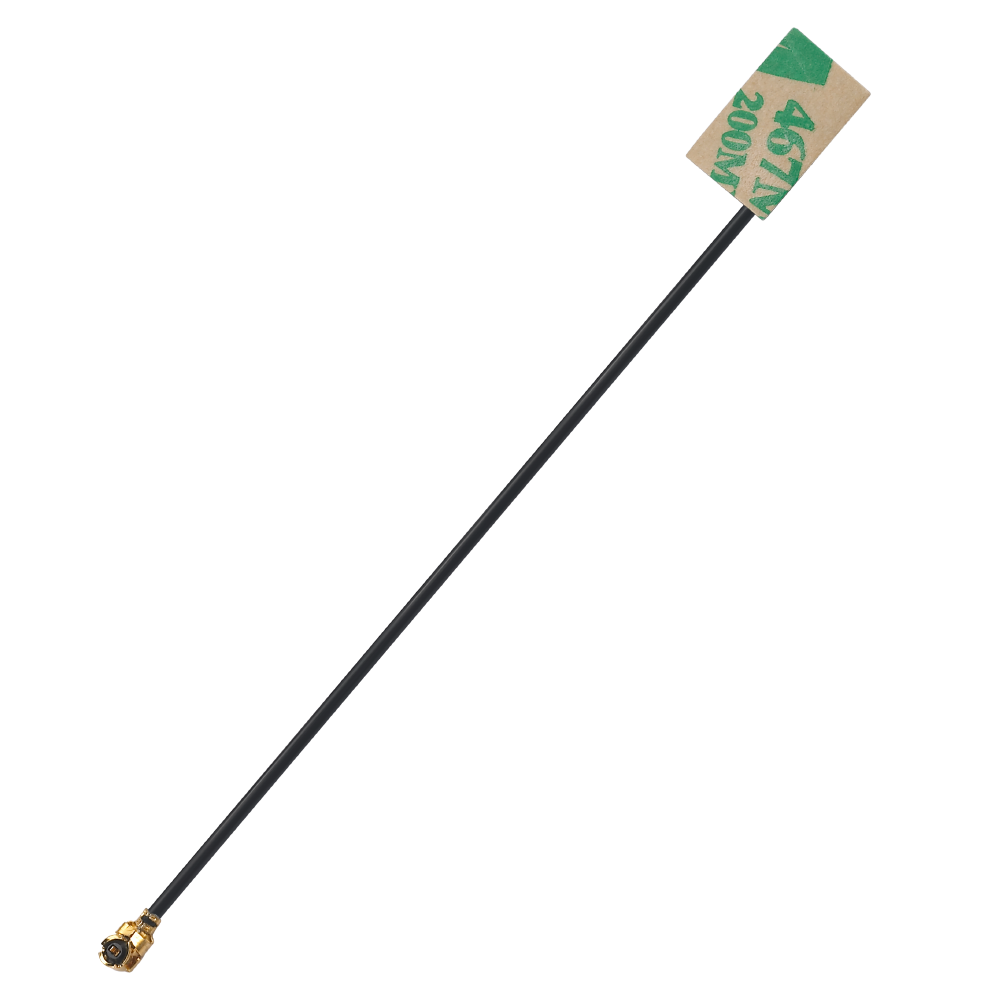

- Peel-and-stick mounting: Double-sided adhesive backing supports fast integration onto device enclosures.
- Ground-plane independent design: Helps simplify placement in embedded layouts.
Typical use cases include compact M2M devices and other embedded cellular-enabled equipment operating on the 2100MHz 3G band.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 7cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Monopole
Cellular Technologies: 3G
Location: Internal
Mounting: Adhesive Mount
Type: Single
Mechanical Style: Flex PCB
Dimensions: 12.7*8.4*0.24 mm
Weight: 0.42g
3G UMTS/HSPA+
Frequency: 1920MHz - 2170MHz
Standards: UMTS/HSPA+
Impedance (Ohms): 50 Ohms
Polarization: Linear
VSWR: 2:1
Gain (Max): 1.5 dBi
Efficiency (%): 45
Average Gain (dB): -3.5
Radiation Properties: Omni-directional
Max Input Power (Watts): 5
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 7cm
Cable Type: 1.13 mm mini coax
