Description

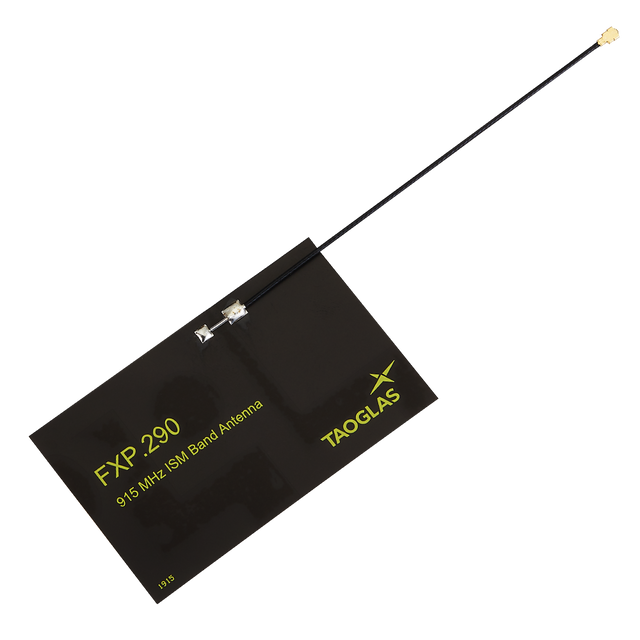

This flexible PCB antenna is designed for the 915MHz ISM band (902–928MHz), offering a compact square form factor and reliable performance across a variety of plastic materials and thicknesses. Baseline testing was performed on 2mm ABS.
- Flexible form factor: Helps enable easy integration into space-constrained devices
- ISM band coverage: Suitable for 902–928MHz regional deployments
- Adhesive mounting: Simplifies placement on internal device surfaces
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Type: Single
Dimensions: 75*45*0.1mm
Weight: 1.5g
ISM / LoRa (915MHz ISM Band)
Frequency: 902MHz - 928MHz
Impedance (Ohm): 50
VSWR: 2:1
Polarization: Linear
Gain (Max): 1.5 dBi
Efficiency (%): 40
Return Loss (dB): -20
Power Handled: 5W
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.13 Coax
RoHS: Yes
