Description

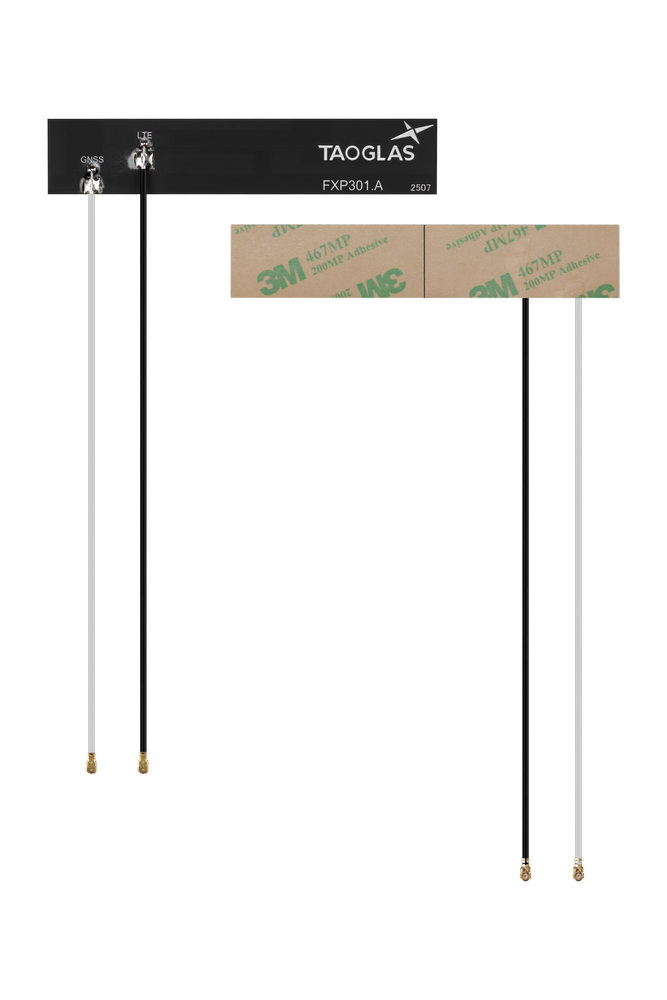

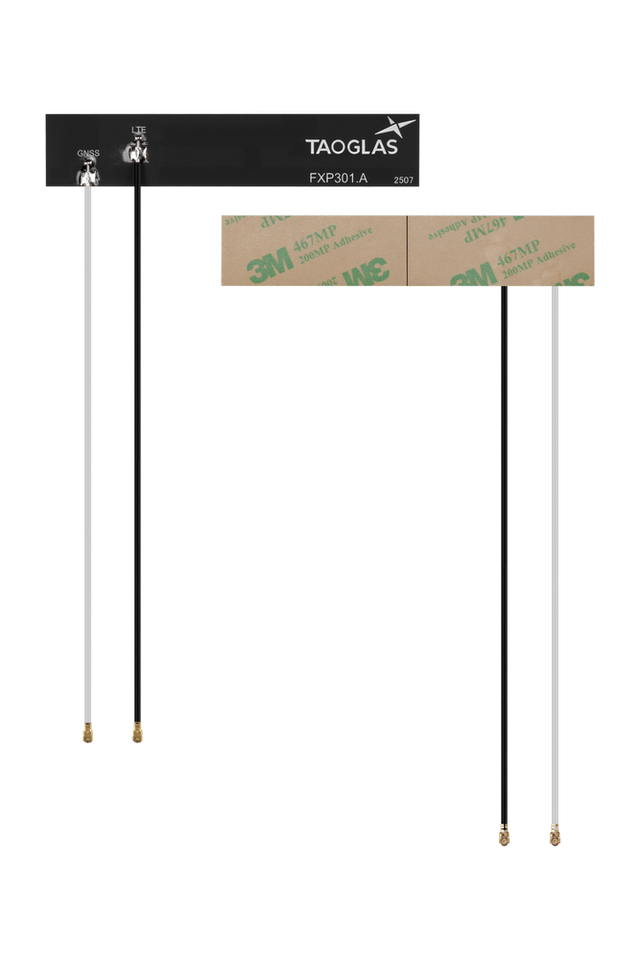

FXP301 is a super compact, ultra-thin flexible PCB combination antenna designed to deliver both wideband cellular connectivity and GNSS positioning in one space-saving solution. Its flexible construction supports easy integration into compact devices where efficient layout and reliable performance are critical.
The peel-and-stick adhesive backing enables quick installation on non-metal surfaces such as plastic or glass, helping streamline assembly and reduce mechanical complexity when replacing multiple antennas with a single compact design.
Typical applications include:
- Asset tracking
- Telematics
- E-Mobility
- Smart agriculture
- Connected healthcare devices
- Wearables and other IoT solutions
Connections
1x Cellular 600MHz – 8000MHz
1x GNSS 1542MHz – 1602MHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Mechanical Style: Flex PCB
Impedance: 50Ω
Polarity: Linear
VSWR: 2:1
Dimensions: 105 x 20 x 0.24mm
Weight: 2.4g
Cellular
Frequency: 600MHz - 8000MHz
Frequency (detailed): 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925, 5925-7125 MHz
Standards: 5GNR/4G, 4G/3G, 4G/3G/NB-IoT/Cat M
Radiation Pattern: Omni directional
Polarization: Linear
Impedance: 50Ω
Max. Input Power: 5W
Gain (Max): 3.78 dBi
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Black)
Connector Body Style: Right Angle
GNSS (Passive)
Frequency: 1542MHz - 1602MHz
GNSS Bands: L1/L-Band
Polarization: Linear
Impedance: 50Ω
VSWR (max.): 2:1
Peak Gain (Max): 0.90 dBi
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 (White)
Connector Body Style: Right Angle
