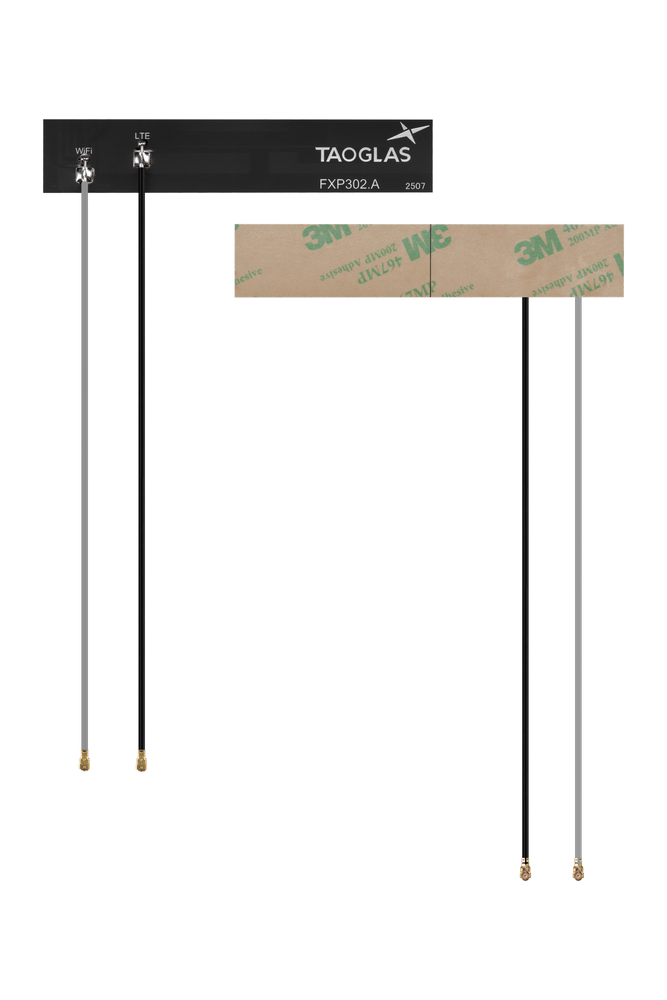

FXP302.A.001 Antenna Super Compact 5G, Wi-Fi 6E/7 flex PCB adhesive 2-in-1 for Telematics, E-Mobility, Smart agriculture, Connected healthcare devices

Super compact, ultra-thin flexible PCB antenna designed to combine wideband cellular and tri-band Wi-Fi performance in a single space-saving solution. Its flexible polymer construction supports easy integration into compact wireless devices and helps maintain performance in environments where vibration may occur.

Ideal for designs that need reliable global connectivity while reducing antenna count, integration complexity, and time-to-market.

Typical applications include:

• Telematics
• E-Mobility
• Smart agriculture
• Connected healthcare devices
• Wearables and other IoT solutions

Connections

1x Cellular covering 600MHz – 8000MHz
1x Wi-Fi covering 2.4GHz, 5.8GHz & 7.125GHz

Installation / Environmental

Installation is quick and simple with a “peel-and-stick” 3M adhesive backing, enabling secure mounting on non-metal surfaces such as plastic or glass.

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive (3M 467)
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Dimensions: 105mm x 20mm x 0.24 mm
Weight: 2.4g

Cellular

Frequency: 600MHz - 8000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 3.57 dBi
Max. Input Power: 5W
Radiation Pattern: Omni directional
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Black)

Wi-Fi

Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 3.24 dBi
Max. Input Power: 5W
Radiation Pattern: Omni directional
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Grey)
