Description

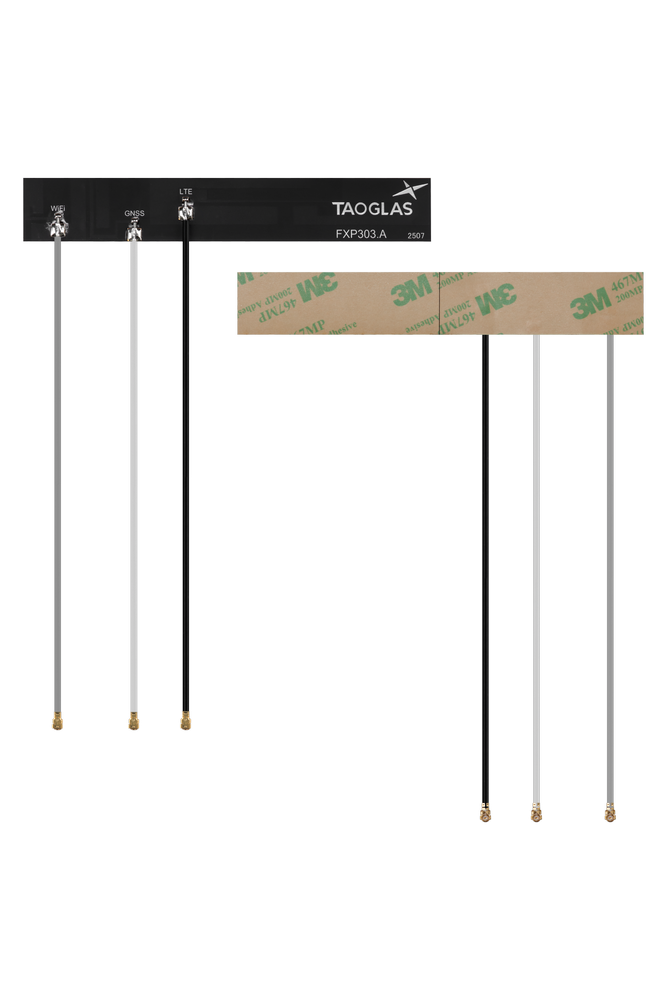

Super-compact 3-in-1 flexible PCB antenna designed to combine cellular, GNSS, and Wi-Fi in one ultra-thin solution for space-constrained devices.
This flexible polymer construction supports easy integration, helps reduce antenna count and BOM complexity, and supports reliable multi-standard connectivity and positioning in compact product designs. The peel-and-stick adhesive backing enables quick placement on non-metal surfaces such as plastic or glass.
Typical use cases include asset tracking, telematics, e-mobility, smart agriculture, connected healthcare devices, wearables, and other IoT solutions.
Connections
1x GNSS covering L1, B1I, G1 and L-Band
1x Cellular covering 600MHz – 8000MHz
1x Wi-Fi covering 2.4GHz, 5.8GHz, 7.125GHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Mechanical Style: Flex PCB
Impedance: 50Ω
Polarization: Linear
Dimensions: 130mm x 20mm x 0.24 mm
Weight: 3.4g
Cellular
Frequency: 600-8000 MHz
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 5W
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: Black
GNSS
GNSS Type: Passive GNSS
GNSS Bands: L1/L-Band
Frequency: 1542, 1561, 1575.42, 1602 MHz
VSWR (max.): 1.5:1
Peak Gain (dBi): 1.4, 1.5, 1.5, 1.6
Impedance: 50Ω
Polarization: Linear
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: White
Wi-Fi
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Peak Gain (dBi): 1.41, 3.13, 3.00
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 5W
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: Grey
