Description

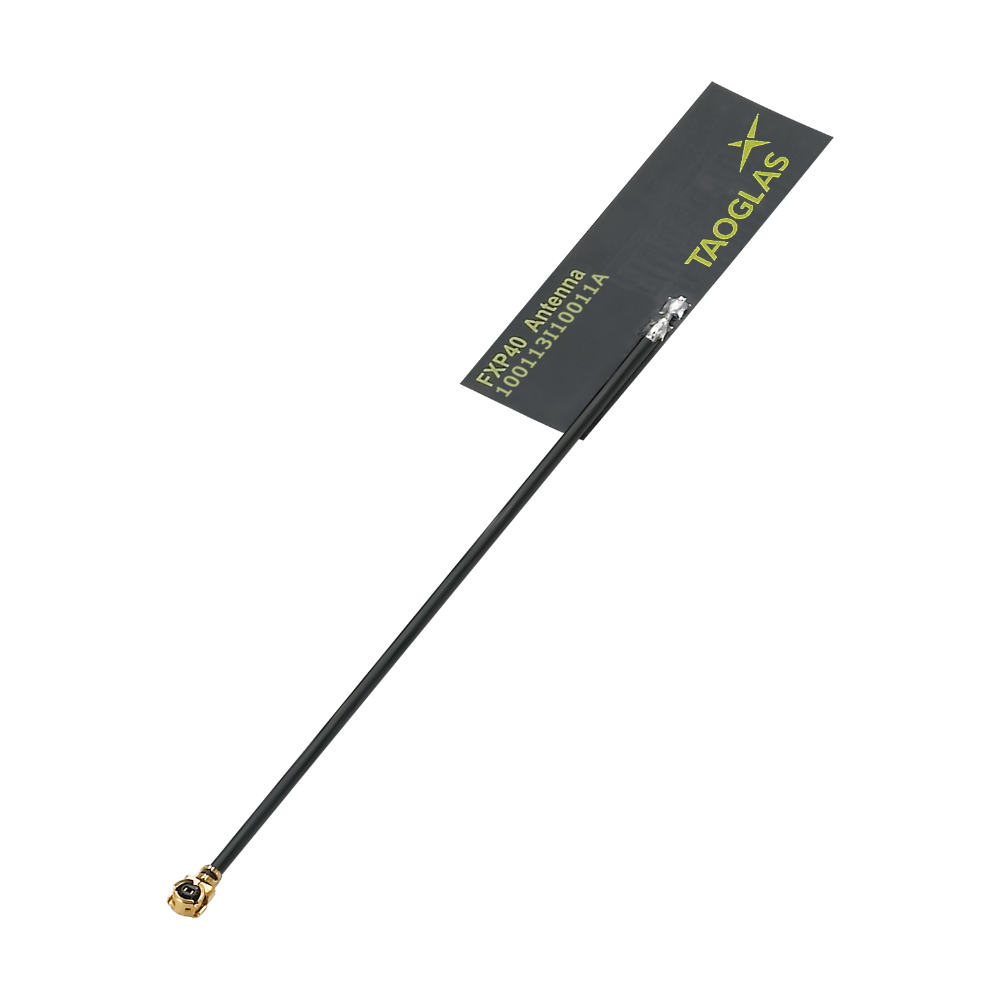

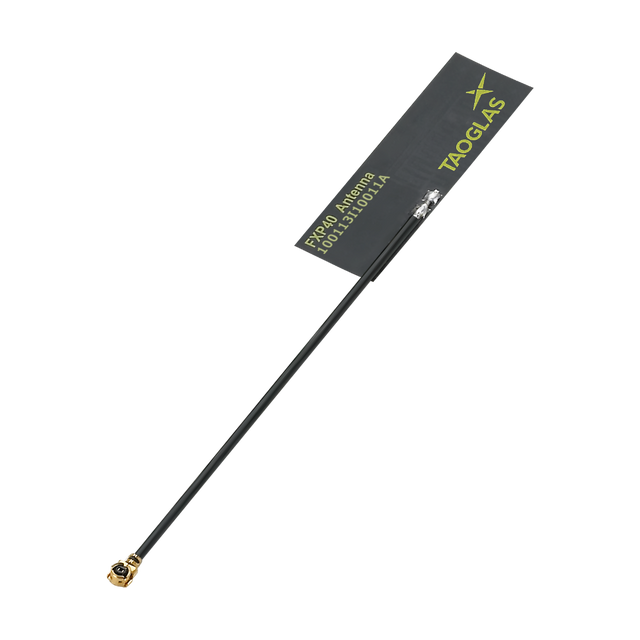

This ultra-low-profile flexible PCB antenna is designed for compact embedded devices requiring cellular and LPWAN IoT connectivity across the 700–2200 MHz range. Its peel-and-stick mounting makes integration straightforward in space-constrained enclosures.
- Compact flexible form factor for embedded designs
- Adhesive mounting using double-sided tape for quick placement
- Optimized for cellular + LPWAN IoT use (including Cat-M and NB-IoT deployments)
Typical applications include: Wearables, Remote Monitoring, Handheld devices.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 8.5cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Adhesive Mount
Type: Single
Frequency: 824MHz - 2170MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 1.9 dBi
Dimensions: 43*12*0.15mm
Weight: 1g
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 8.5cm
Cable Type: 1.13 Coax
