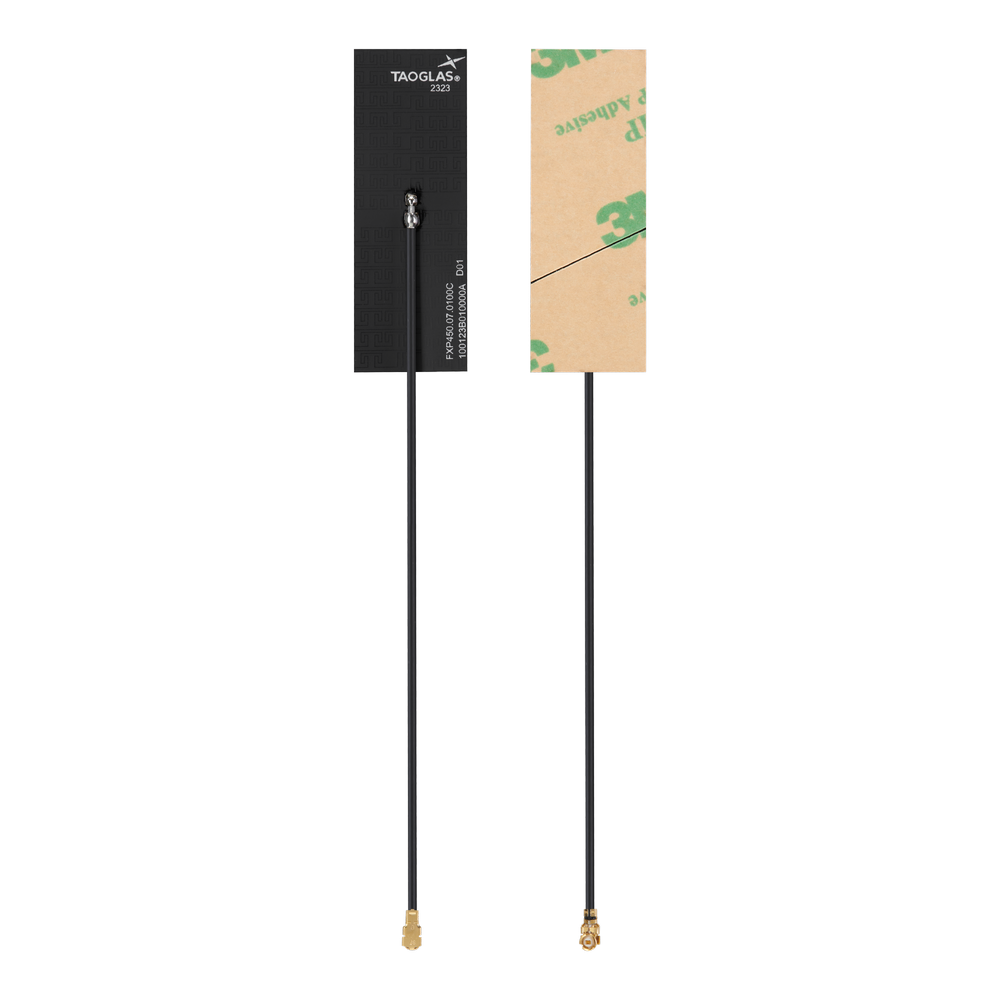

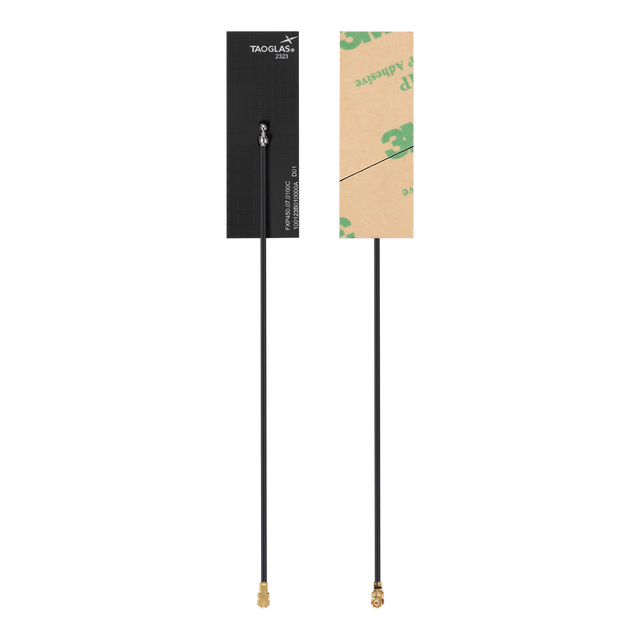

FXP450.07.0100C Antenna Low-Profile ISM/LoRa 410-470MHz flex PCB I-PEX MHF I 10cm for Mesh Networks, Cellular IoT Devices, Agriculture, Weather Monitors

This low-profile flexible PCB (FPC) antenna is designed for 450MHz ISM/LoRa devices and supports frequency channels across 410–470MHz. Its compact embedded form factor is engineered for stable performance and reduced sensitivity to cable routing.

• Wide coverage: Supports 410–470MHz operation for 450MHz applications
• Compact embedded design: Low-profile FPC format for space-constrained devices
• Simple integration: Designed to be adhered into the host device using tape mounting
• Customization: Custom cables and connectors are available on request
• Compliance: RoHS & REACH compliant

Typical applications include:

• Mesh Networks
• Cellular IoT Devices
• Agriculture
• Weather Monitors

Installation guidance: The antenna can be adhered via 3M tape onto a device. For best performance, place it as far away from metal components as possible.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL compatible)
• Cable Length: 10cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Type: Single
Frequency: 410MHz - 470MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 1.5
Gain (Max): -0.05 dBi
Dimensions: 47mm * 17mm * 0.28mm
Material: Polymer
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37 Coax
