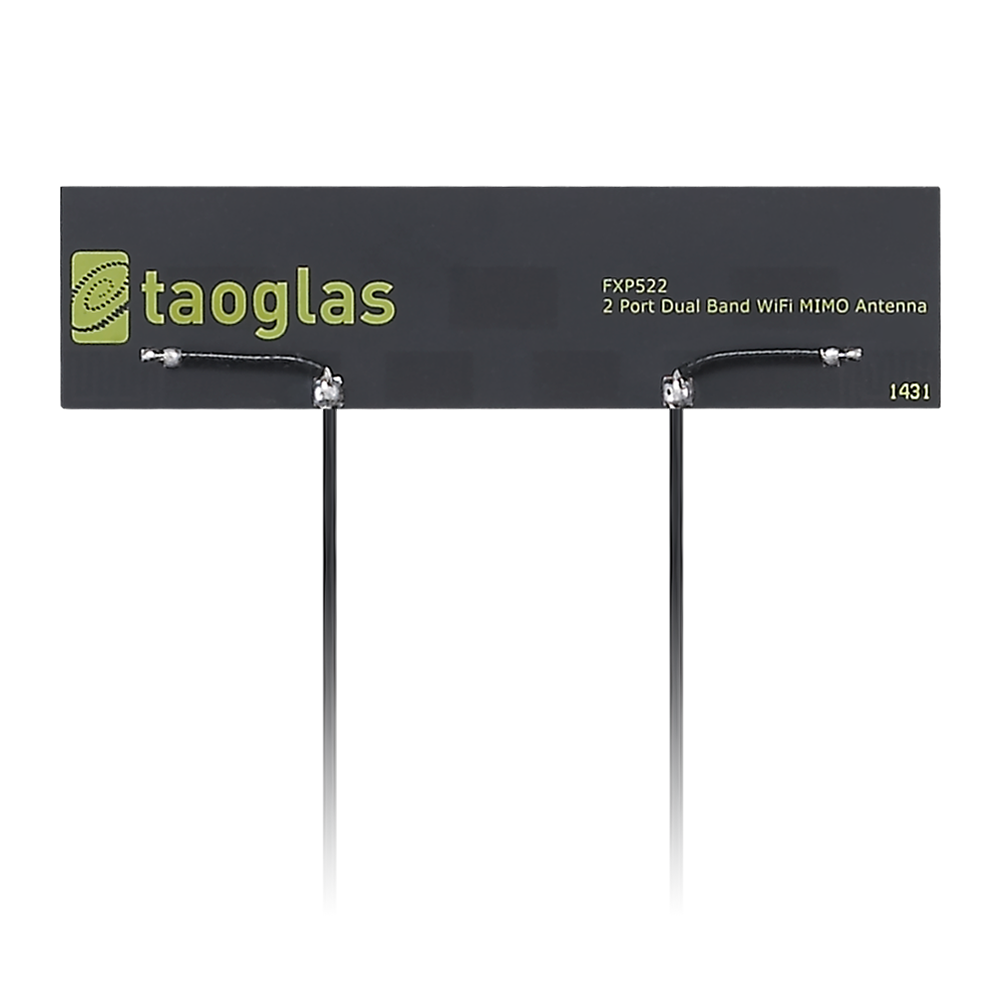

FXP522.A.07.A.001 Antenna 2x MIMO Router Wi-Fi 6E/7 flex PCB adhesive Venti I-PEX MHF I 10cm for High speed HD video streaming, High capacity mass transit communication networks, Gateways, Set-top boxes

The Venti FXP522 is a thin, flexible embedded antenna designed for modern Wi-Fi networks, including extended Wi-Fi frequency coverage and Wi-Fi 6 bands. Its 2-port MIMO design supports strong throughput and improved link quality in high-speed devices where space is limited.

• 2-port MIMO performance: Designed for strong efficiency and isolation in Wi-Fi devices.
• Flexible embedded form factor: Helps maintain performance while fitting into narrow internal spaces.
• Optimized for plastic housings: Tuned on ABS plastic for reliable integration in common device enclosures.

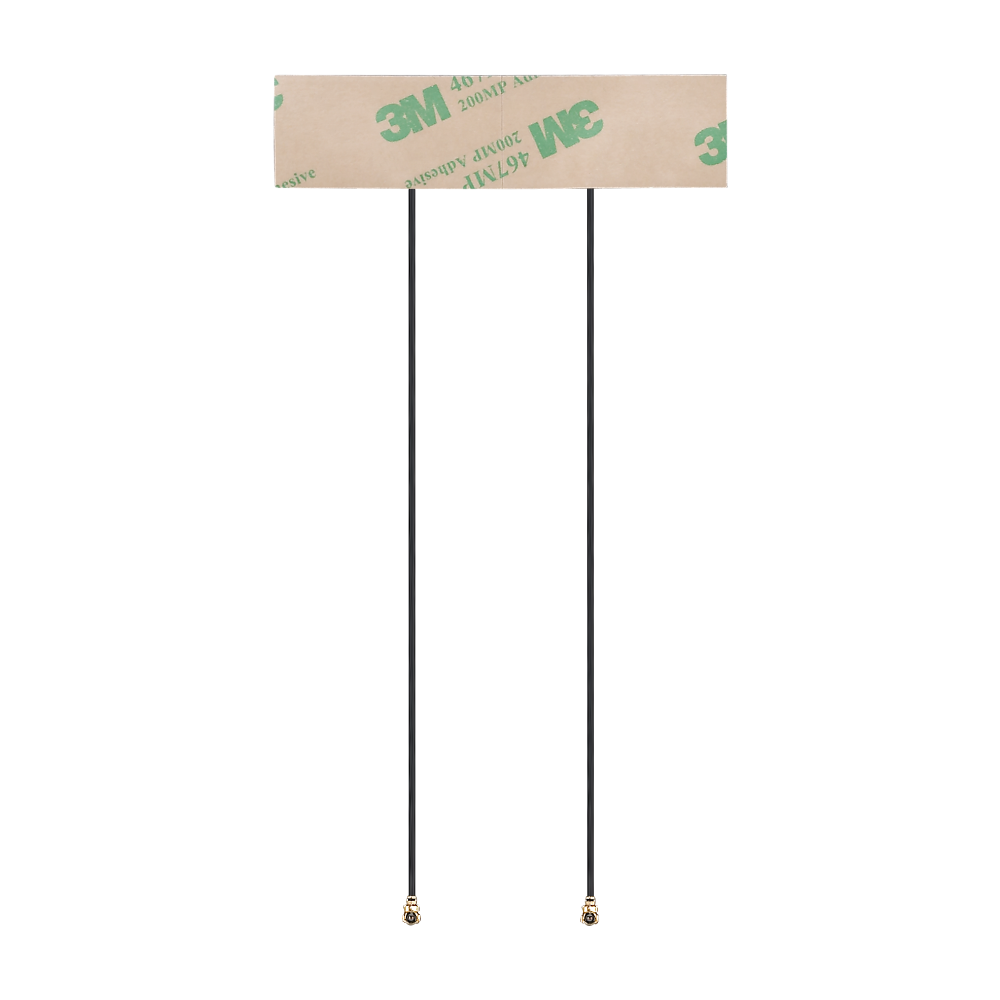

• Simple integration: Supplied with double-sided 3M tape for “peel and stick” mounting.

Typical use cases: routers, gateways, set-top boxes, high speed HD video streaming devices, and high capacity mass transit communication networks.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL compatible)
• Cable Length: 10cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, MIMO
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 80*20*0.15mm
Weight: 8g

Wi-Fi (Port 1)

Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 6.4 dBi
Radiation Pattern: Omnidirectional
Max Input Power: 2 W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.13 Coax

Wi-Fi (Port 2)

Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 6.4 dBi
Radiation Pattern: Omnidirectional
Max Input Power: 2 W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.13 Coax
