Description

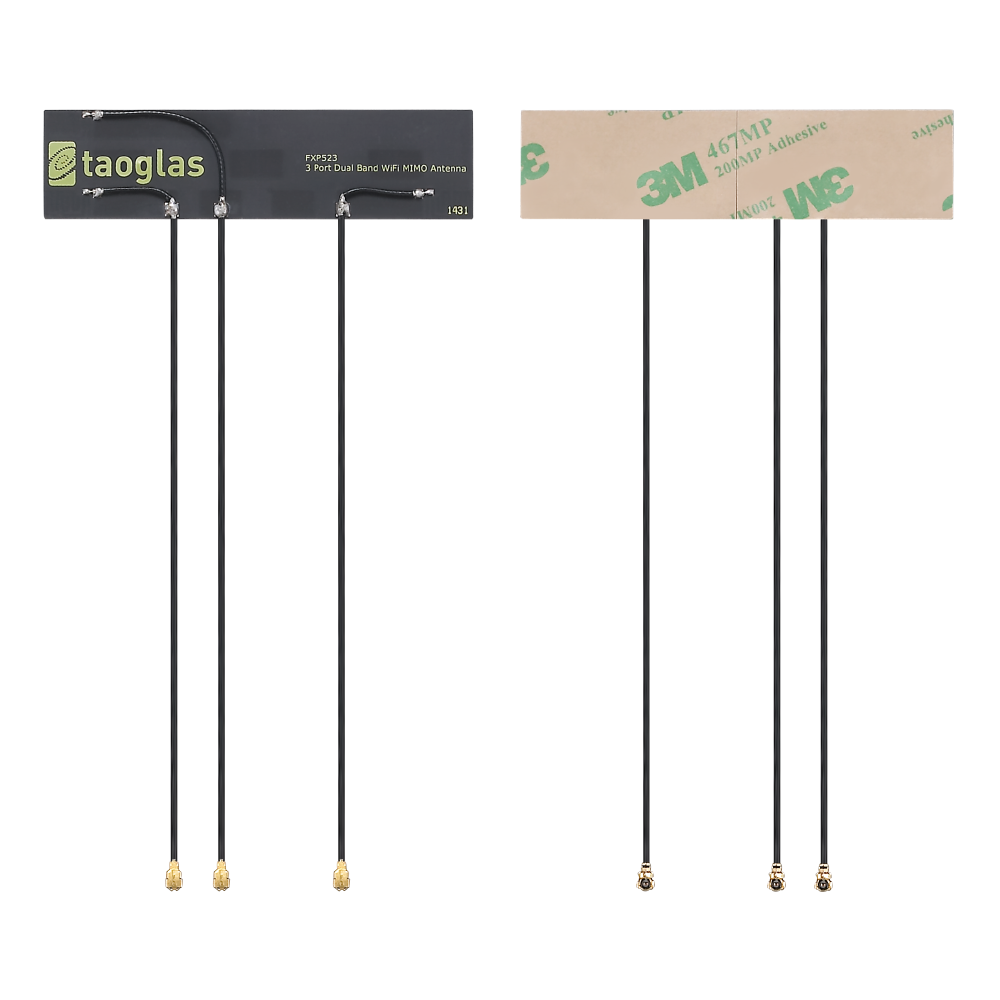

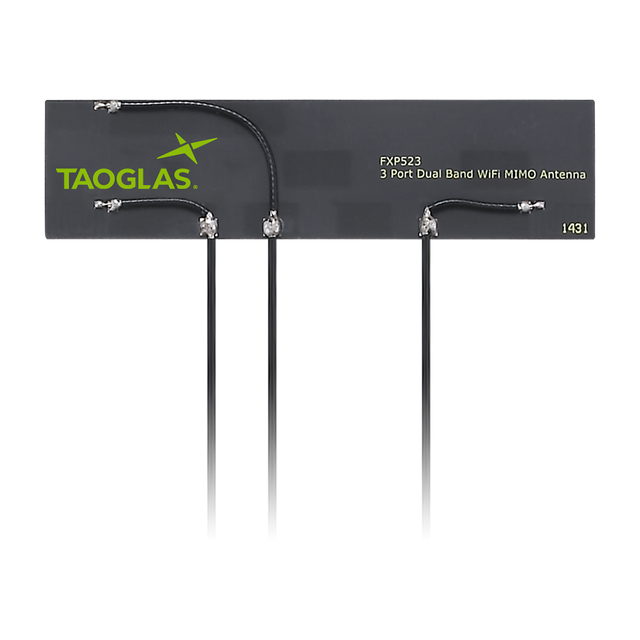

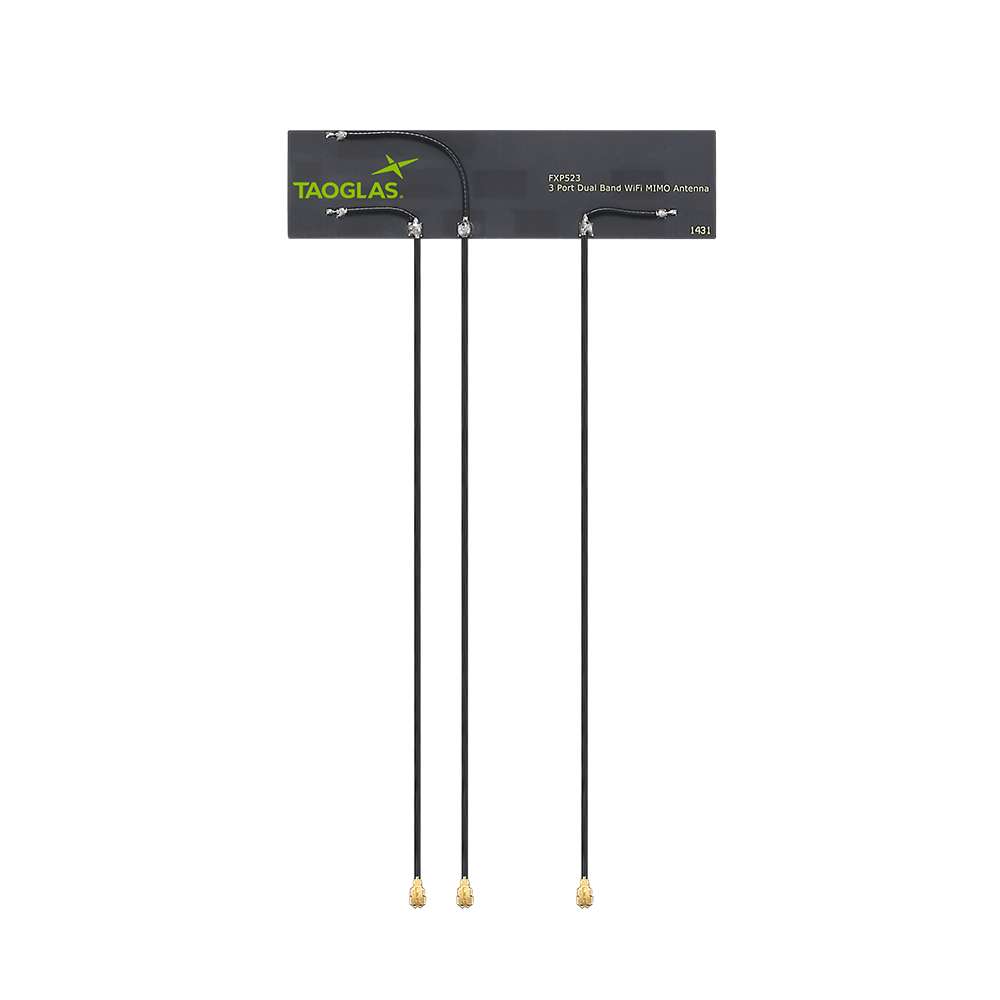

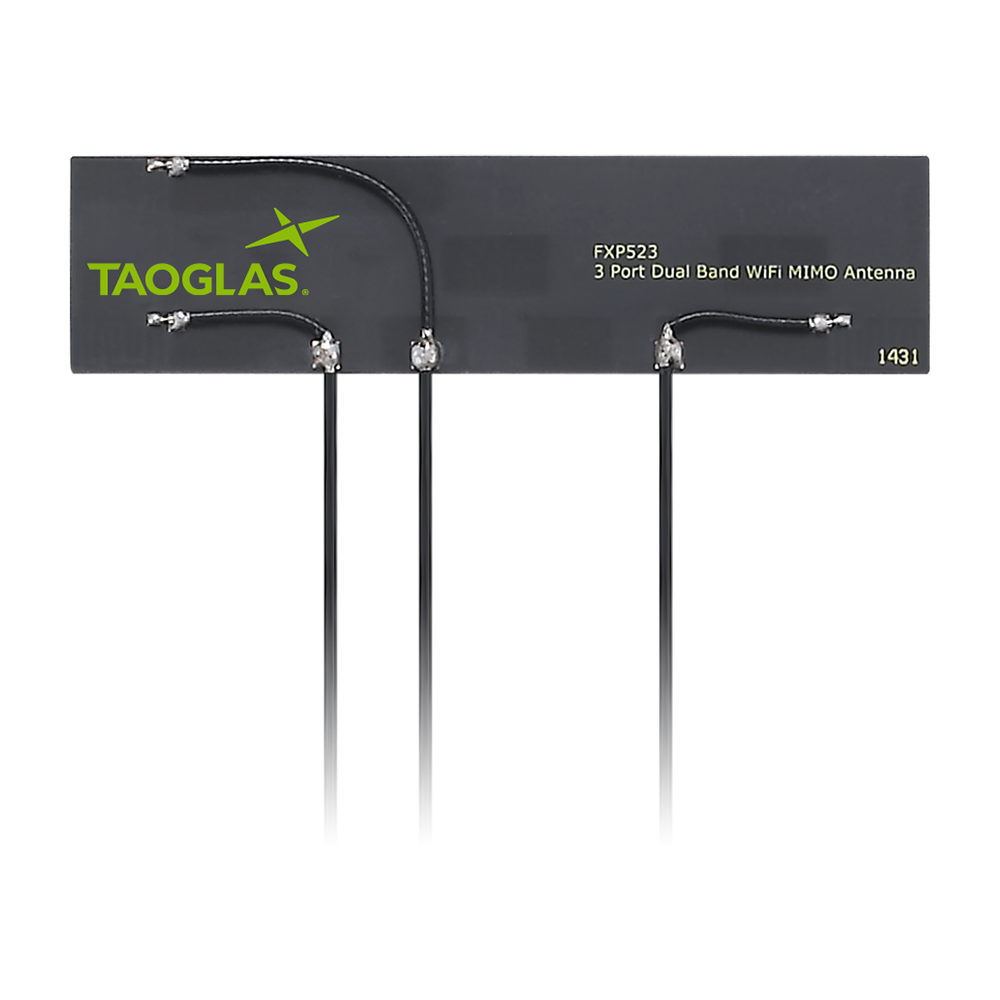

Venti FXP523 is a low-profile, flexible PCB antenna with a 3-port MIMO design for modern Wi-Fi devices. It is built to help maintain strong wireless performance in tight, space-constrained enclosures and is well-suited for integration into consumer and industrial electronics.
- 3-port MIMO design for improved throughput and reliability
- Flexible PCB, rectangular form factor for easy device integration
- Peel-and-stick mounting using double-sided adhesive tape
- Supports extended Wi-Fi bands, including Wi-Fi 6E band coverage
Typical applications include:
- Smart Home
- Routers and Gateways
- Smart Devices
- HD Video Streaming
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 12cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, MIMO
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 80*20*0.15mm
Weight: 8g
Wi-Fi MIMO Antenna 1
Standards: Wi-Fi (2.4/5/6 GHz), Wi-Fi 6E band support
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance (Ohm): 50
Polarisation: Linear
VSWR: 1.2:1
Peak Gain (dBi): 2.21 (2.4GHz), 4.61 (5GHz), 4.44 (6GHz)
Efficiency (%): 42.5 (2.4GHz), 55.4 (5GHz), 46.1 (6GHz)
Radiation Pattern: Omni / Directional
Max. Input Power (W): 2W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 12cm
Cable Type: 1.13 Coax
Wi-Fi MIMO Antenna 2
Standards: Wi-Fi (2.4/5/6 GHz), Wi-Fi 6E band support
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance (Ohm): 50
Polarisation: Linear
VSWR: 1.2:1
Peak Gain (dBi): 1.57 (2.4GHz), 5.21 (5GHz), 4.83 (6GHz)
Efficiency (%): 33.1 (2.4GHz), 53.0 (5GHz), 37.1 (6GHz)
Radiation Pattern: Omni / Directional
Max. Input Power (W): 2W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 12cm
Cable Type: 1.13 Coax
Wi-Fi MIMO Antenna 3
Standards: Wi-Fi (2.4/5/6 GHz), Wi-Fi 6E band support
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Impedance (Ohm): 50
Polarisation: Linear
VSWR: 1.2:1
Peak Gain (dBi): 2.21 (2.4GHz), 5.05 (5GHz), 4.53 (6GHz)
Efficiency (%): 44.5 (2.4GHz), 59.8 (5GHz), 44.4 (6GHz)
Radiation Pattern: Omni / Directional
Max. Input Power (W): 2W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 12cm
Cable Type: 1.13 Coax
