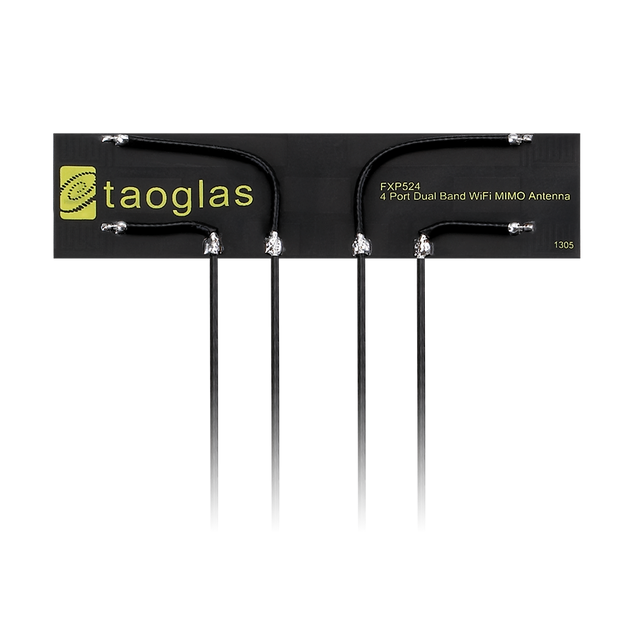

FXP524.D.07.C.001 Antenna 4x MIMO Wi-Fi 6E/7 flex PCB Venti I-PEX MHF I 10cm for Smart Home, Routers and Gateways, Smart Devices, HD Video Streaming

Venti FXP524 is a low-profile, flexible PCB monopole antenna designed for high-performance Wi-Fi operation across 2.4 GHz, 5 GHz, and extended 6 GHz bands. Its 4-port MIMO configuration is engineered to deliver strong efficiency and isolation, helping improve throughput and reliability in space-constrained device enclosures.

The rectangular flex PCB format is optimized for integration inside devices such as laptops, tablets, routers, and other Wi-Fi-enabled equipment. An adhesive backing supports a simple peel-and-stick install for fast integration.

Typical applications include:

• Smart Home
• Routers and Gateways
• Smart Devices
• HD Video Streaming

Connections

4x Wi-Fi MIMO 2400-2500MHz, 5150-5850MHz, 5925-7125MHz

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL compatible)
• Cable Length: 10cm
• Cable Type: 1.37mm coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, MIMO
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 80mm x 20mm x 0.1mm
Weight: 8g

Wi-Fi MIMO Port 1

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Efficiency (%): 48.9 (2GHz), 54.4 (5GHz), 46.8 (6GHz)
Average Gain (dB): -3.11 (2GHz), -2.64 (5GHz), -3.30 (6GHz)
Peak Gain (dBi): 3.53 (2GHz), 4.26 (5GHz), 4.39 (6GHz)
VSWR: 1.3
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37mm coax

Wi-Fi MIMO Port 2

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Efficiency (%): 38.4 (2GHz), 53.7 (5GHz), 43.5 (6GHz)
Average Gain (dB): -4.16 (2GHz), -2.70 (5GHz), -3.62 (6GHz)
Peak Gain (dBi): 0.13 (2GHz), 4.20 (5GHz), 4.10 (6GHz)
VSWR: 1.3
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37mm coax

Wi-Fi MIMO Port 3

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Efficiency (%): 33.3 (2GHz), 54.8 (5GHz), 42.4 (6GHz)
Average Gain (dB): -4.78 (2GHz), -2.61 (5GHz), -3.72 (6GHz)
Peak Gain (dBi): 0.07 (2GHz), 3.60 (5GHz), 3.95 (6GHz)
VSWR: 1.3
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37mm coax

Wi-Fi MIMO Port 4

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 10W
Efficiency (%): 52.7 (2GHz), 55.1 (5GHz), 49.2 (6GHz)
Average Gain (dB): -2.78 (2GHz), -2.59 (5GHz), -3.08 (6GHz)
Peak Gain (dBi): 3.50 (2GHz), 5.69 (5GHz), 5.76 (6GHz)
VSWR: 1.3
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37mm coax
