Description

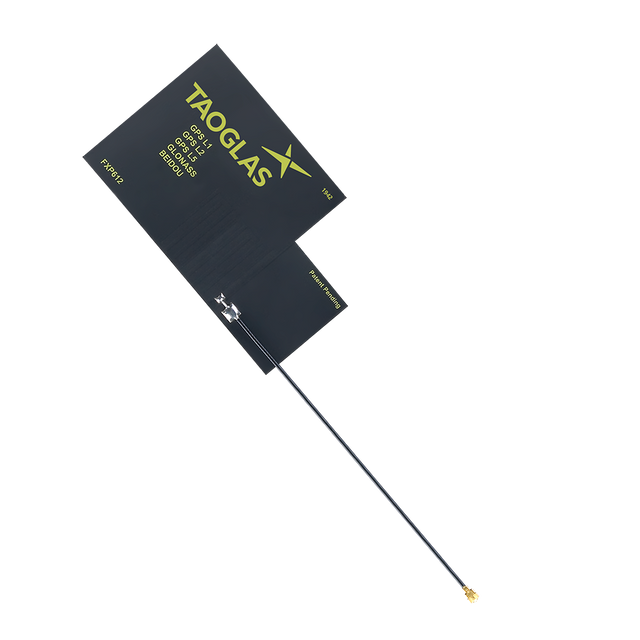

This flexible polymer multiband GNSS antenna is designed for embedded integration where consistent positioning performance is needed across L1/L2/L5 satellite bands. The thin, conformable format and peel-and-stick mounting make it well-suited for devices with limited internal space and for installations on non-metal surfaces.
- Multi-constellation GNSS support: Designed to cover GPS, Galileo, GLONASS, and BeiDou bands for robust positioning.
- Flexible, ultra-thin form factor: Helps simplify integration into compact device enclosures.
- Adhesive mounting: Quick placement inside housings without requiring PCB space.
Typical use cases: Telematics, Fleet Management, Positioning, Healthcare, Transportation, Agriculture, Automotive, IoT devices, and sensor-enabled monitoring systems.
Datasheet: FXP612.07.0095A
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 9.5cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40 C to +85 C
Antenna Technologies: Loop
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
GNSS Bands: L1/L2/L5
Impedance: 50
9
Polarization: Linear
VSWR: <2:1
Gain (Max): 3 dBi
Dimensions: 76*47*0.15mm
Weight: 3g
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 9.5cm
Cable Type: 1.13 Coax
