Description

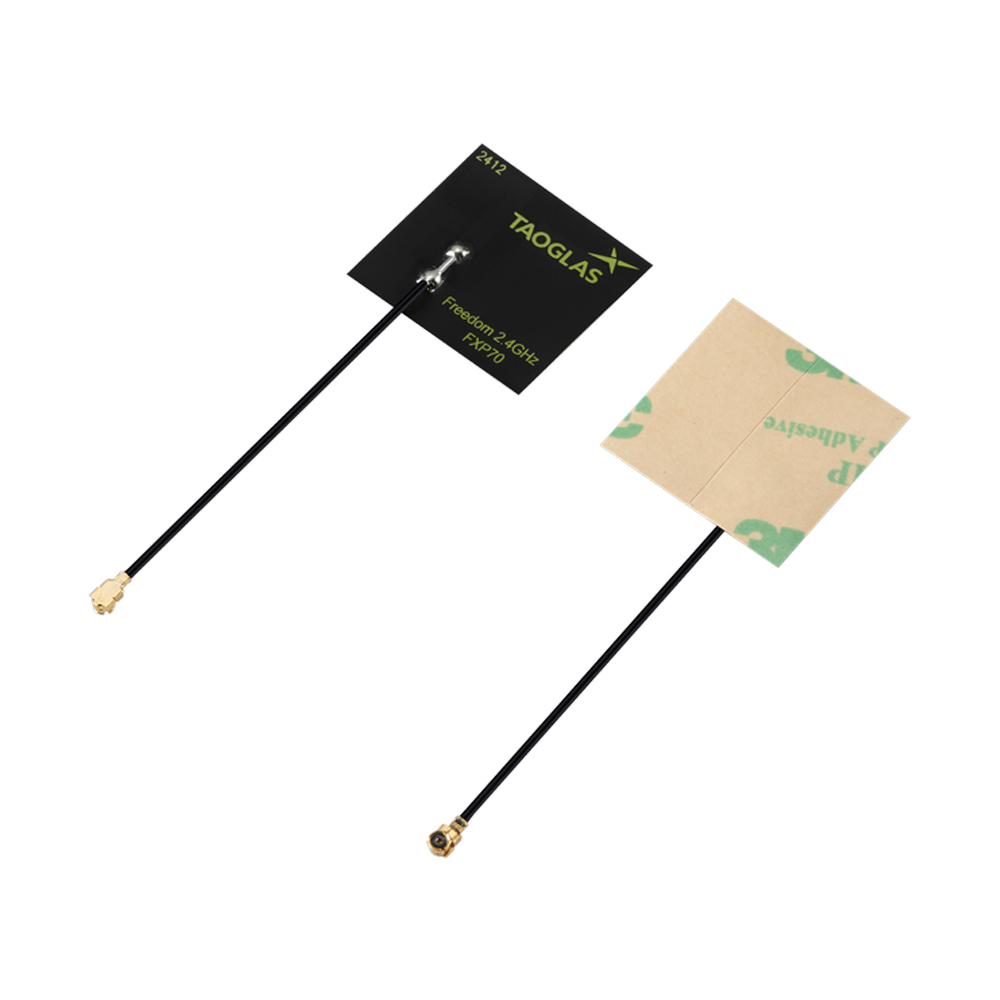

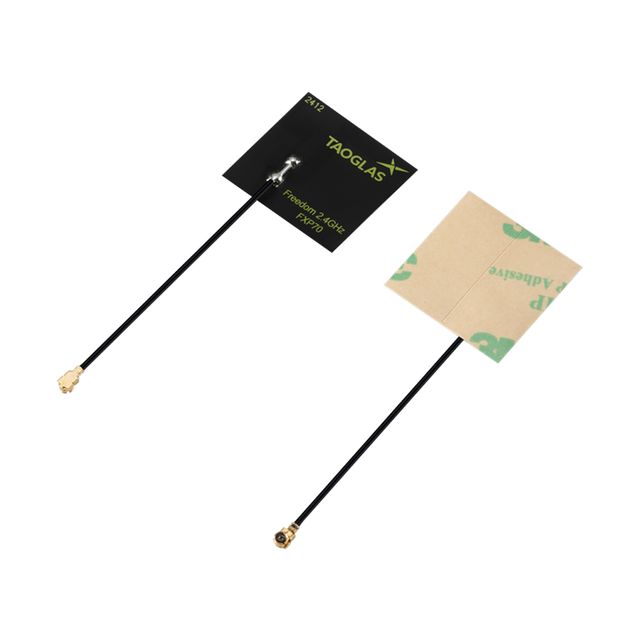

Freedom is a low-profile 2.4GHz flexible PCB antenna designed for embedded wireless devices using Wi-Fi, Bluetooth, ZigBee and other 2.4GHz ISM-band protocols.
- Multi-standard 2.4GHz support: suitable for Wi-Fi, Bluetooth and ZigBee/ISM implementations.
- Easy device integration: flexible PCB format with adhesive mounting for quick placement inside enclosures.
- Designed for real-world installations: intended to work behind plastic housings across different material types and thicknesses.
- Regulatory-friendly integration approach: in-device performance typically differs from free-space measurements, helping meet module peak-gain limits when integrated correctly.
Cable and connector options can be customized to fit specific device layouts and integration needs.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 5.3cm
- Cable Type: 1.13 Coax (Mini-Coax)
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 27 x 25 x 0.08 mm
Weight: 1.2 g
Humidity: Non-condensing 65°C 95% RH
Wi-Fi / Bluetooth / ZigBee / ISM
Frequency: 2400-2500 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: <=1.5:1
Max. input power: 5W
Efficiency (%): 2mm ABS 63.7; Free Space 30.5
Average Gain (dB): 2mm ABS -2; Free Space -5.2
Peak Gain (dBi): 2mm ABS 1.1; Free Space -1.9
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 5.3cm
Cable Type: Mini-Coax 1.13 mm
