Description

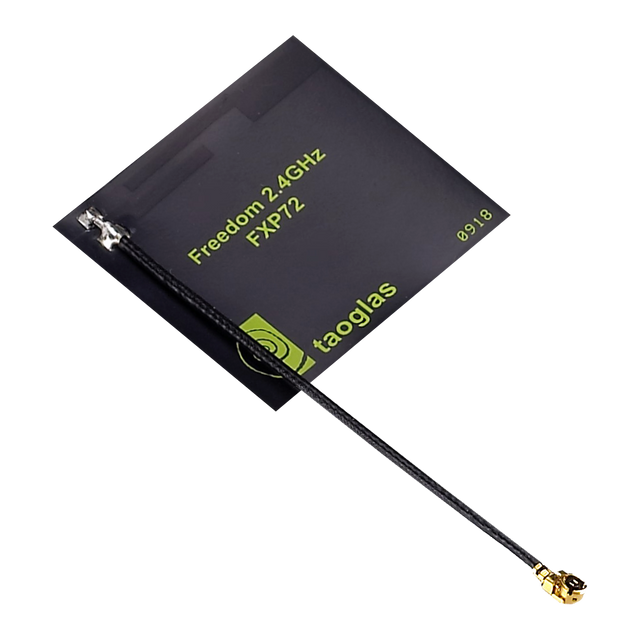

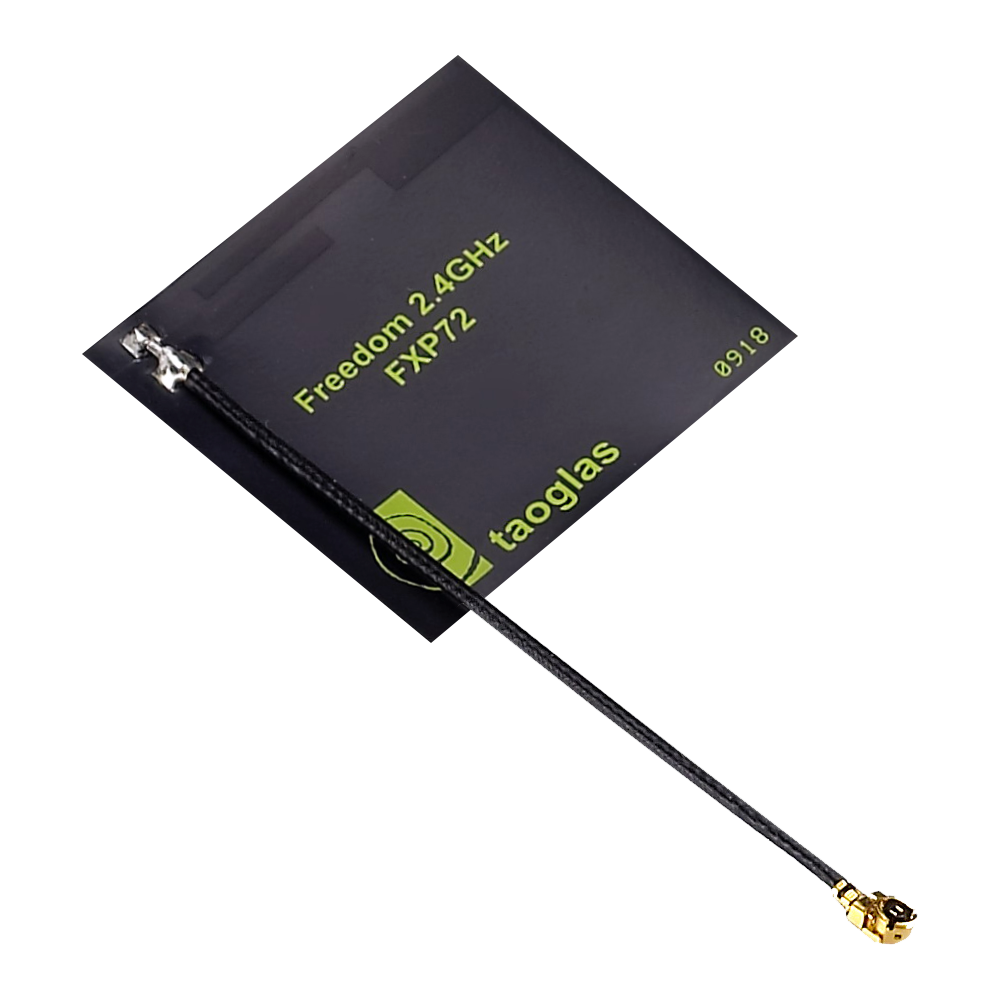

Freedom is a low-profile, flexible PCB antenna designed for 2.4GHz connectivity in compact devices. It supports Wi-Fi, Bluetooth, ZigBee and other ISM-band applications, and is engineered to help maintain performance in designs where there is minimal clearance between the enclosure and the device PCB.
The ground-coupling design allows placement above or below the device board, while keeping the radiating elements free of nearby metal to support consistent in-device behavior across different plastic materials and thicknesses.
- 2.4GHz support for Wi-Fi/Bluetooth/ZigBee/ISM applications
- Flexible PCB format for easy integration in space-constrained enclosures
- Designed to work effectively when clearance inside the enclosure is limited
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 5.3cm
- Cable Type: Mini-Coax 1.13mm
Technical Specifications
Operating Temperature: -40 cC to 85 cC
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 31 x 30.4 x 0.2 mm
Weight: 1.2 g
2.4GHz Wi-Fi / Bluetooth / ZigBee / ISM
Frequency: 2400-2500 MHz
Impedance: 50 a9
Polarization: Linear
Radiation Pattern: Omni
VSWR: 2:1
Efficiency (%): 67.9
Average Gain (dB): -1.68
Peak Gain (dBi): 3.06
Max. Input Power: 10W
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 5.3cm
Cable Type: Mini-Coax 1.13mm
Adhesive: 3M 467
