Description

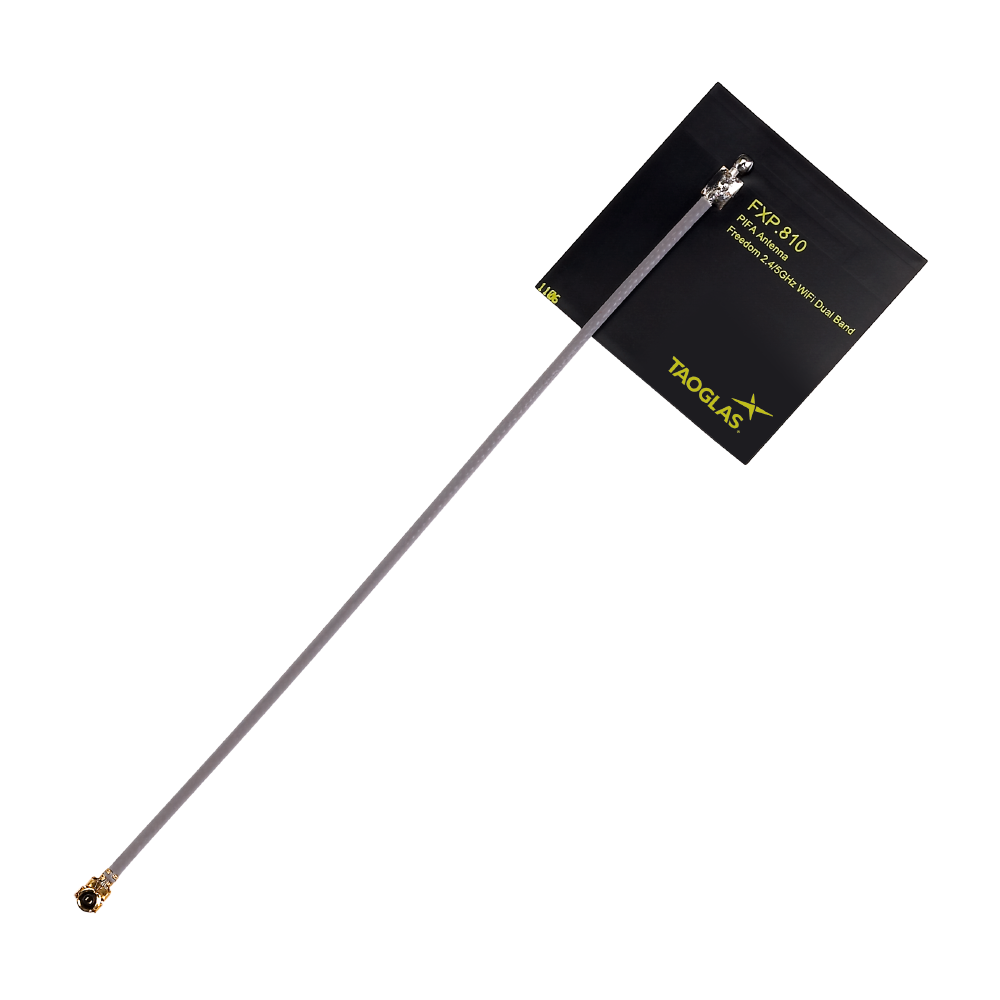

The FXP810 is a compact flexible PCB antenna designed for embedded wireless devices, covering Wi-Fi, Bluetooth and NFC. It is optimized for strong performance in small tag-type mobile designs, helping maintain high efficiency across the supported bands.
- Dual-band coverage: 2.4GHz and 4.9–6.0GHz operation
- Flexible form factor: suitable for space-constrained embedded designs
- Performance-focused: engineered for high efficiency across the target bands
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 10cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: PIFA
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, NFC, ISM
Type: Single
Dimensions: 31mm*31mm*0.1mm
Weight: 5g
Wi-Fi / Bluetooth / NFC (Dual-Band)
Frequency: 2400-2500 MHz, 4900-5850 MHz
Standards: Wi-Fi, Bluetooth, NFC
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Peak Gain (dBi): 2.52 (2.4GHz), 6.37 (5.8GHz)
Efficiency (%): 60-70% (2.4GHz), 80-90% (4.9-6.0GHz)
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37 Coax
