Description

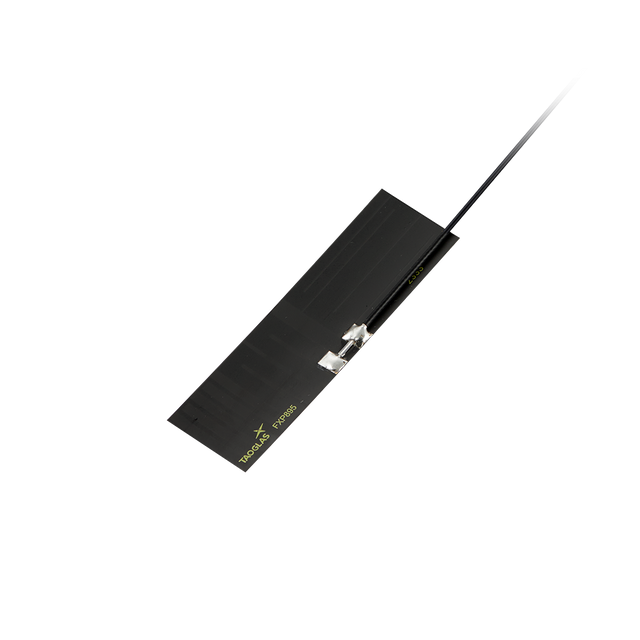

This compact flexible PCB (FPC) antenna is designed for embedded ISM/LoRa devices requiring wideband coverage across global sub-GHz regions. Its low-profile form factor supports integration into space-constrained enclosures while helping reduce the need for region-specific antenna SKUs.
The antenna can be adhered to a device using tape, with placement optimized by keeping it as far as possible from metal components to support consistent RF performance.
Typical use cases
- Remote Monitoring
- Mesh Networks
- Security
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 20cm
- Cable Type: 1.37mm coaxial
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Type: Single
Frequency: 860MHz - 930MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2
Gain (Max): 2.83
Dimensions: 69mm * 20mm * 0.2mm
Weight: 2g
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 20cm
Cable Type: 1.37mm Coaxial
Storage Temperature: -40°C to 85°C
Relative Humidity: 40% to 95%
