Description

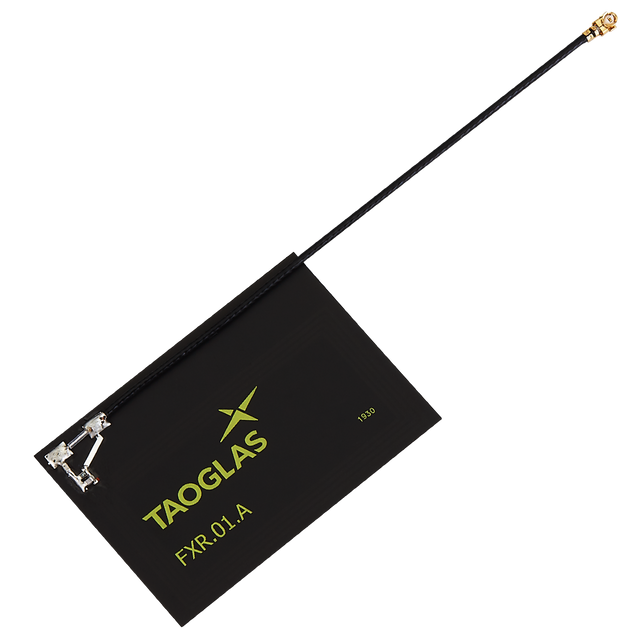

Flexible NFC reader antenna designed for 13.56MHz Near-Field Communications tag interrogation in compact devices.
- Peel-and-stick flex construction for easy integration inside plastic housings
- Integrated matching circuit to support well-matched performance in 50Ω systems
- Optimized for typical NFC tag interrogation with read distance up to 5 cm
- Customizable design options including antenna area optimization, matching customization, and optional ferrite application
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 10cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Mechanical Style: Flex PCB with Ferrite
Dimensions: 53.34*36.83*0.24mm
Weight: 1g
NFC
Frequency: 13.56MHz
Impedance: 50Ω
Polarization: Linear
Return Loss: >10dB (on 1mm ABS holder)
Self-Resonance Frequency: 96MHz
Q Factor: 16
Ls: 1.54uH
Rs: 8.12
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37 Coax
Adhesive: 3M 467
